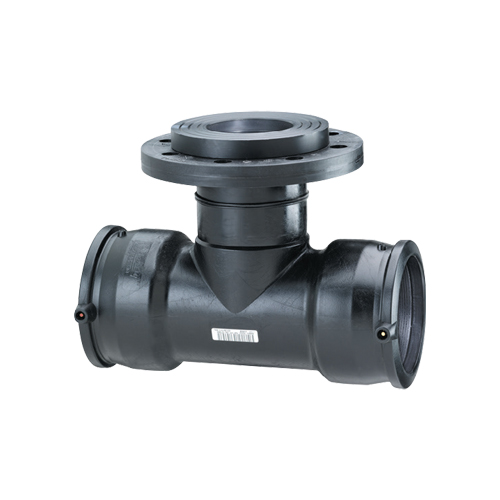

FLANGED TEE 110-100-110

Product Code: 4994001

Specifications

Specifications

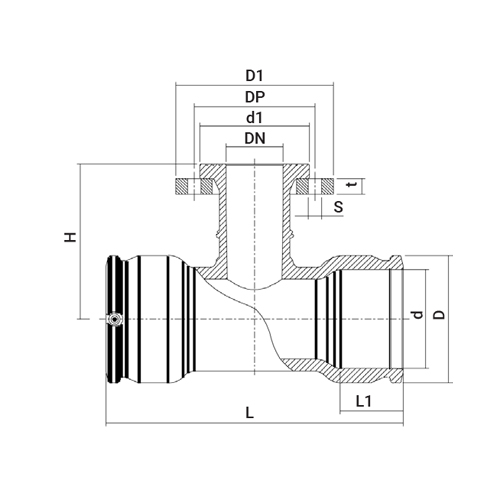

A (mm) 81

d (mm) 110

d1 (mm) 158

DN 100

Dp 180

D (mm) 143

H (mm) 181

L1 (mm) 71

SDR Range SDR 7 to SDR 17

Unit Per Carton 6

Weight (g) "4
