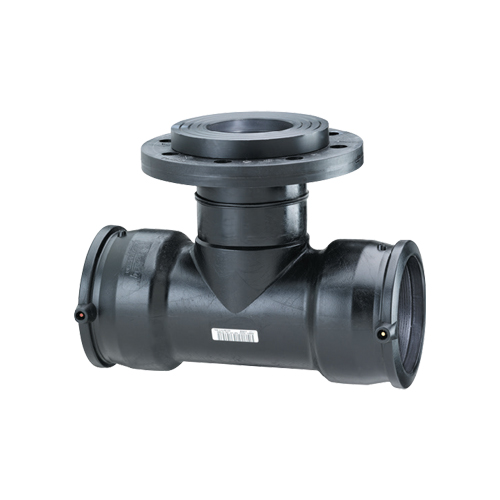

FLANGED TEE 125-100-125

Product Code: 4994002

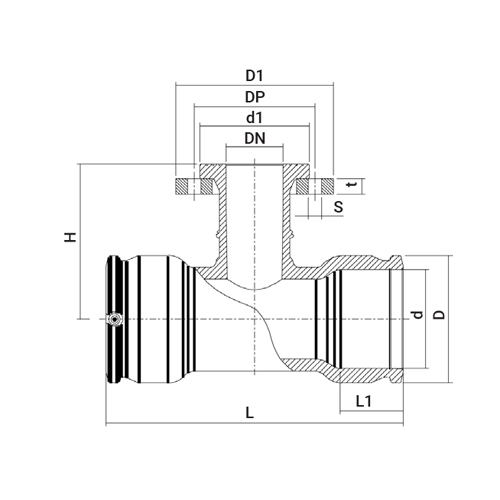

Specifications

Specifications


A (mm) 88

d (mm) 125

d1 (mm) 158

DN 100

Dp 180

D (mm) 165

H (mm) 190

L1 (mm) 86

SDR Range SDR 7 to SDR 17

Unit Per Carton 3

Weight (g) 5180
