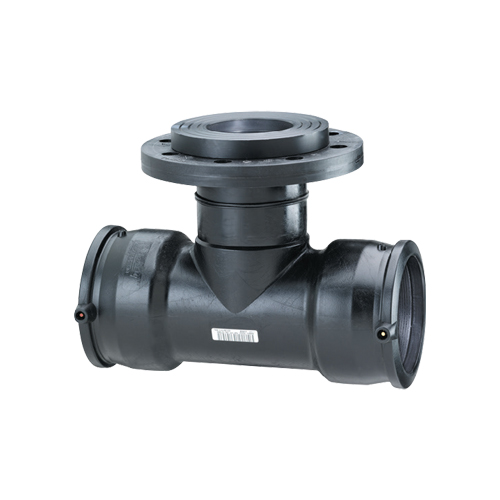

FLANGED TEE 160-100-160

Product Code: 4994003

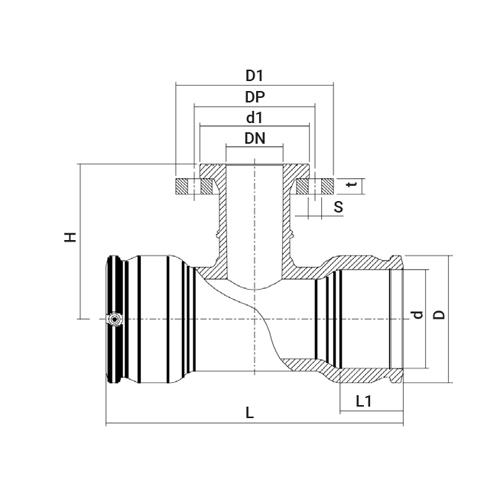

Specifications

Specifications


A (mm) 106

d (mm) 160

d1 (mm) 158

DN 100

Dp 180

D (mm) 208

H (mm) 210

L1 (mm) 86

SDR Range SDR 7 to SDR 17

Unit Per Carton 3

Weight (g) "6
