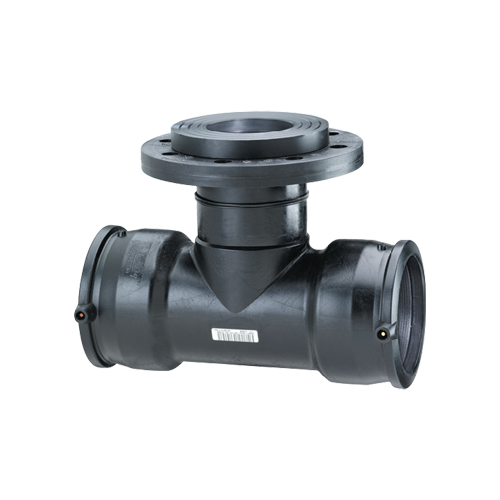

FLANGED TEE 180-100-180

Product Code: 4994004

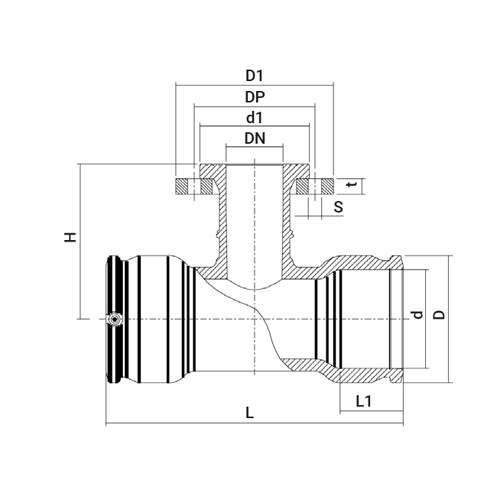

Specifications

Specifications


A (mm) 116

d (mm) 180

d1 (mm) 158

DN 100

Dp 180

D (mm) 245

H (mm) 225

L1 (mm) 106

SDR Range SDR 7 to SDR 17

Unit Per Carton 1

Weight (g) "8
