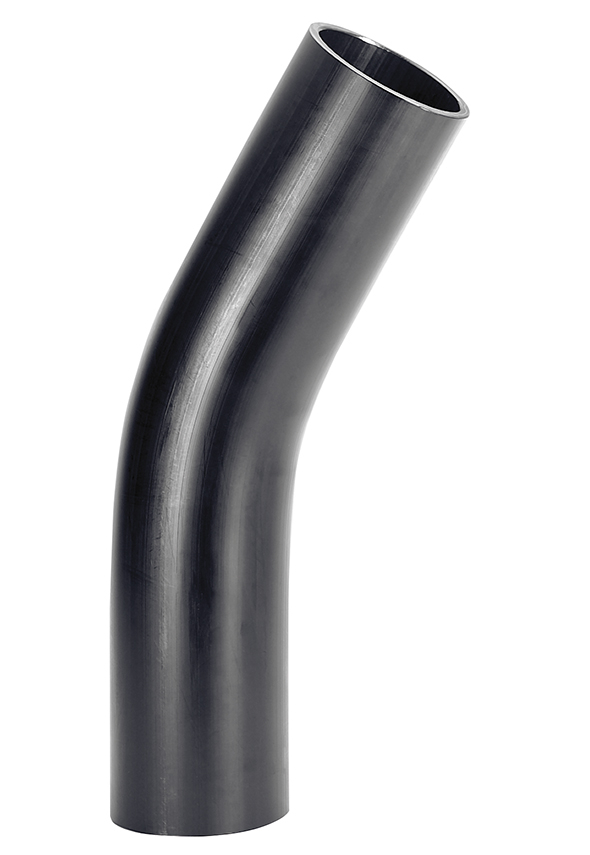

BEND 22D SEAMLESS LONG SPIGOT PE100 SDR17 560

BEND 22D SEAMLESS LONG SPIGOT PE100 SDR17 560

BEND 22D SEAMLESS LONG SPIGOT PE100 SDR17 560

Product Code: 8101077

Qty:

Specifications

Specifications

Specifications

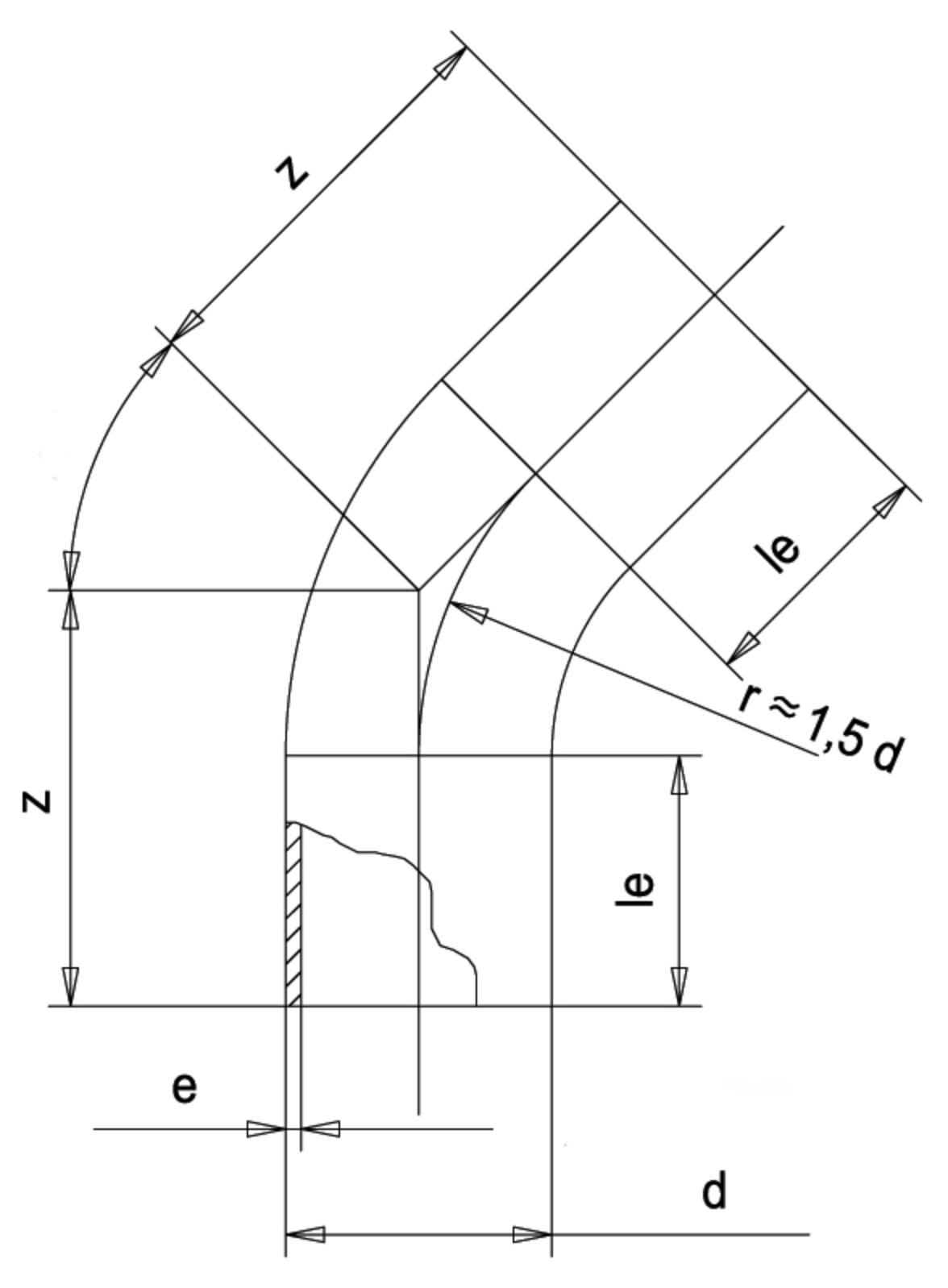

SDR 17

d (mm) 560

e (mm) 33,2

le1 (mm) 350

z1 (mm) 680

PN 10

Angle 22

Weight (kg) 70,3
