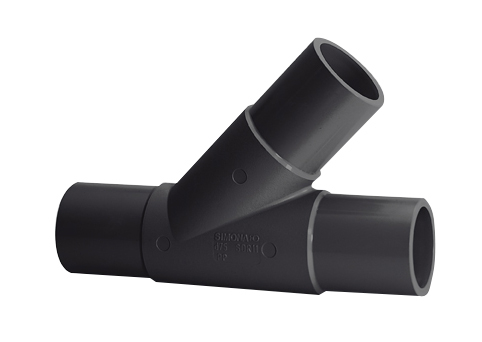

BRANCHES 45D INJECTED LONG SPIGOT PE100 SDR11 63

Product Code: 8137001

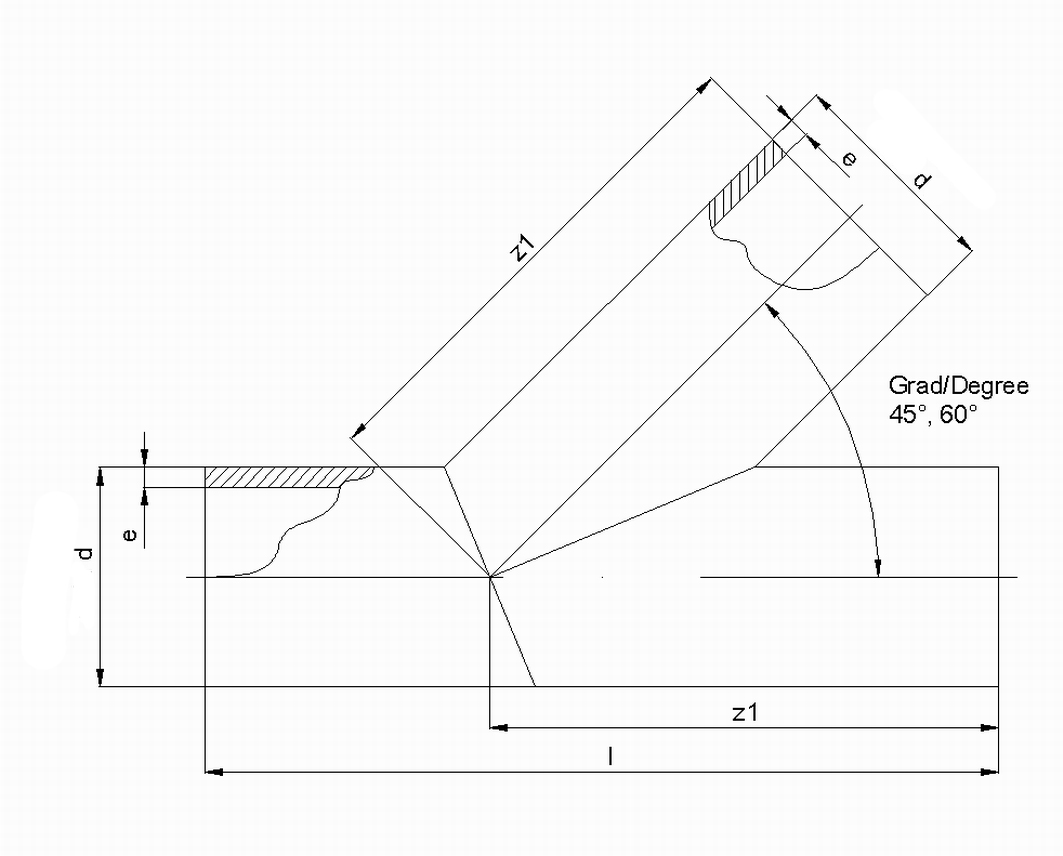

Specifications

Specifications


SDR  11

d (mm) 63

e (mm) 5,8

le1 (mm) 69

z1 (mm) 162

z2 (mm) 97

PN 16

Length (mm) 258

Angle 45

Weight (kg) 0,465
