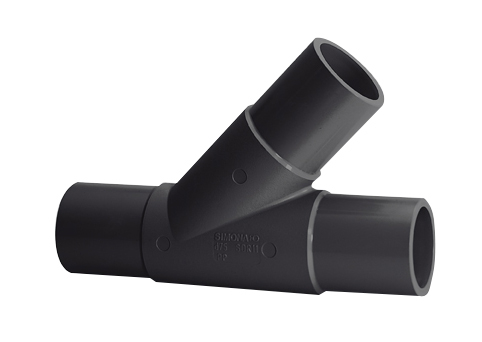

BRANCHES 45D INJECTED LONG SPIGOT PE100 SDR11 75

Product Code: 8137002

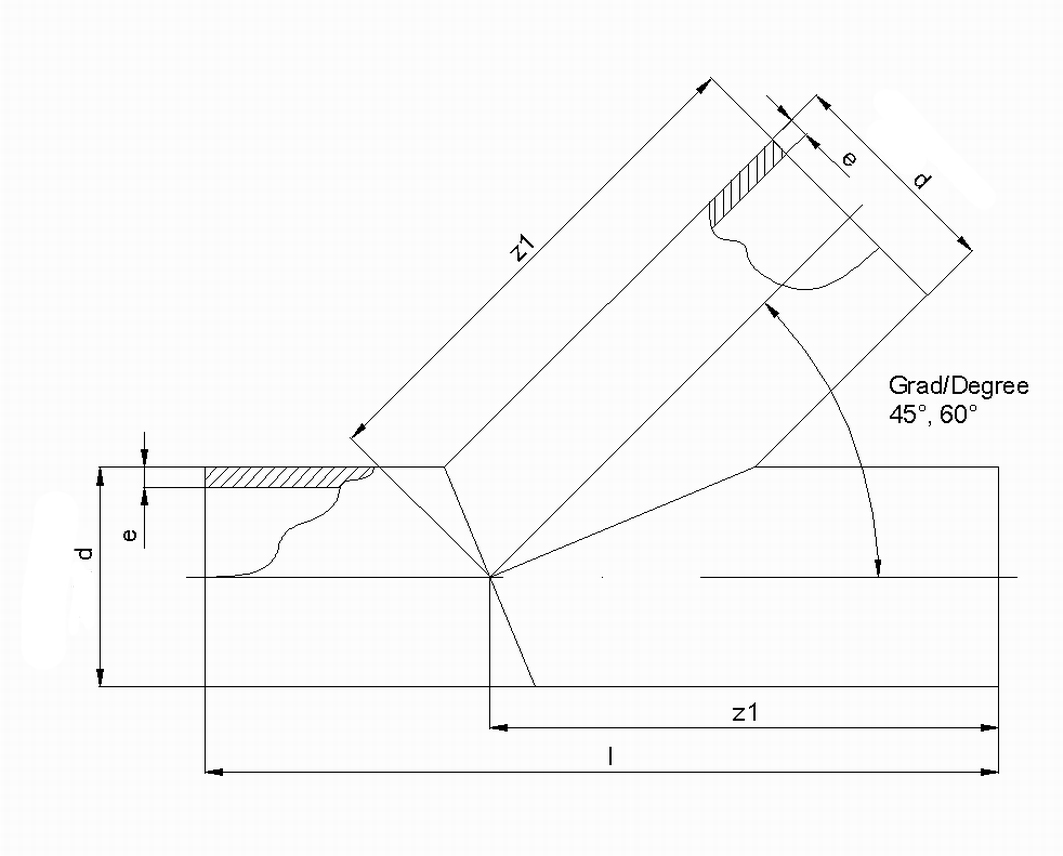

Specifications

Specifications


SDR  11

d (mm) 75

e (mm) 6,8

le1 (mm) 77

z1 (mm) 109

z2 (mm) 190

PN 16

Length (mm) 304

Angle 45

Weight (kg) 0,775
