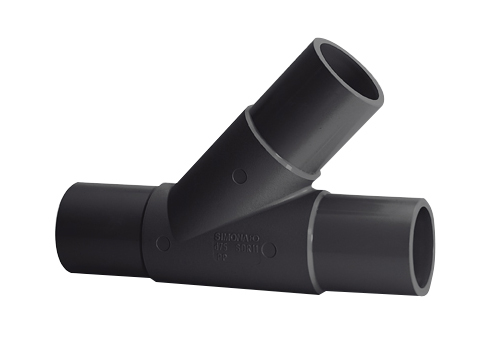

BRANCHES 45D INJECTED LONG SPIGOT PE100 SDR11 90

Product Code: 8137003

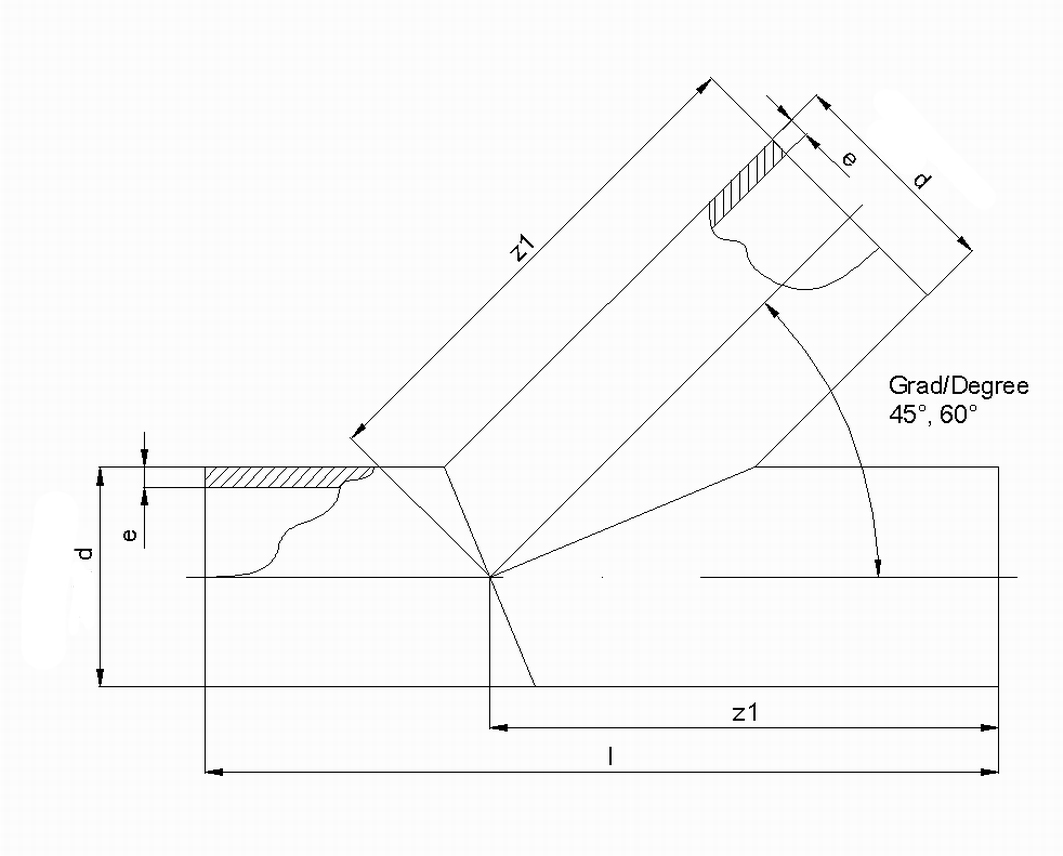

Specifications

Specifications


SDR  11

d (mm) 90

e (mm) 8,2

le1 (mm) 85

z1 (mm) 137

z2 (mm) 230

PN 16

Length (mm) 370

Angle 45

Weight (kg) 1,37
