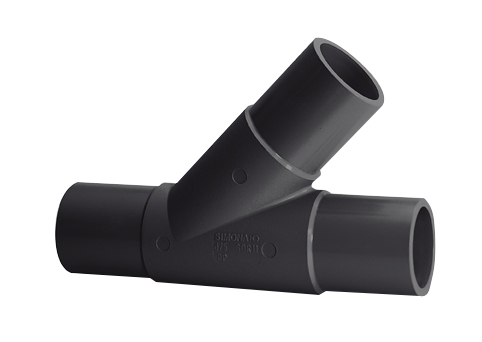

BRANCHES 45D INJECTED LONG SPIGOT PE100 SDR11 110

Product Code: 8137004

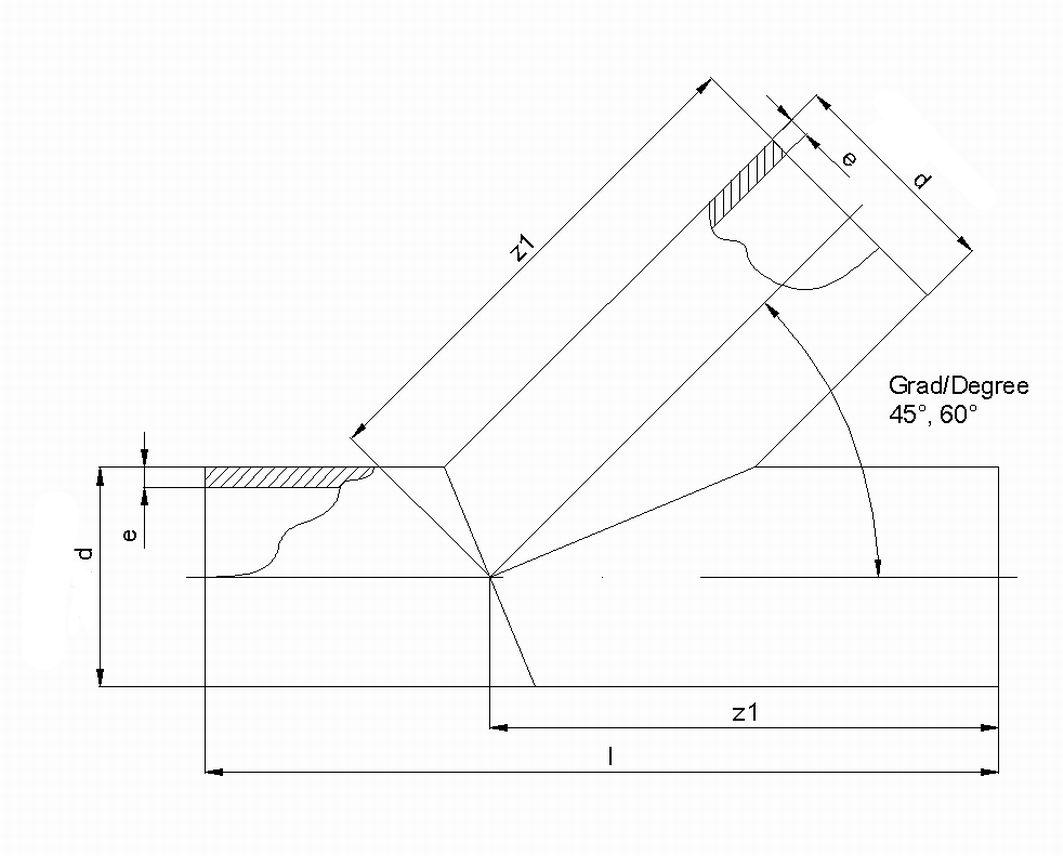

Specifications

Specifications


SDR  11

d (mm) 110

e (mm) 10

le1 (mm) 90

z1 (mm) 141

z2 (mm) 260

PN 16

Length (mm) 402

Angle 45

Weight (kg) 2,13
