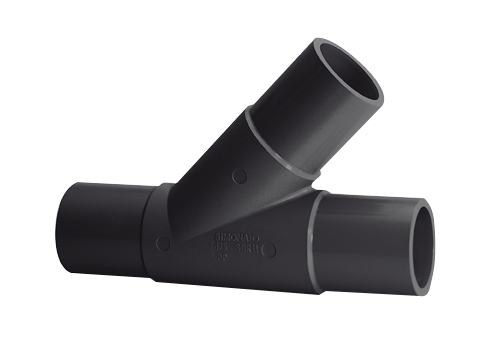

BRANCHES 45D INJECTED LONG SPIGOT PE100 SDR17 90

Product Code: 8137007

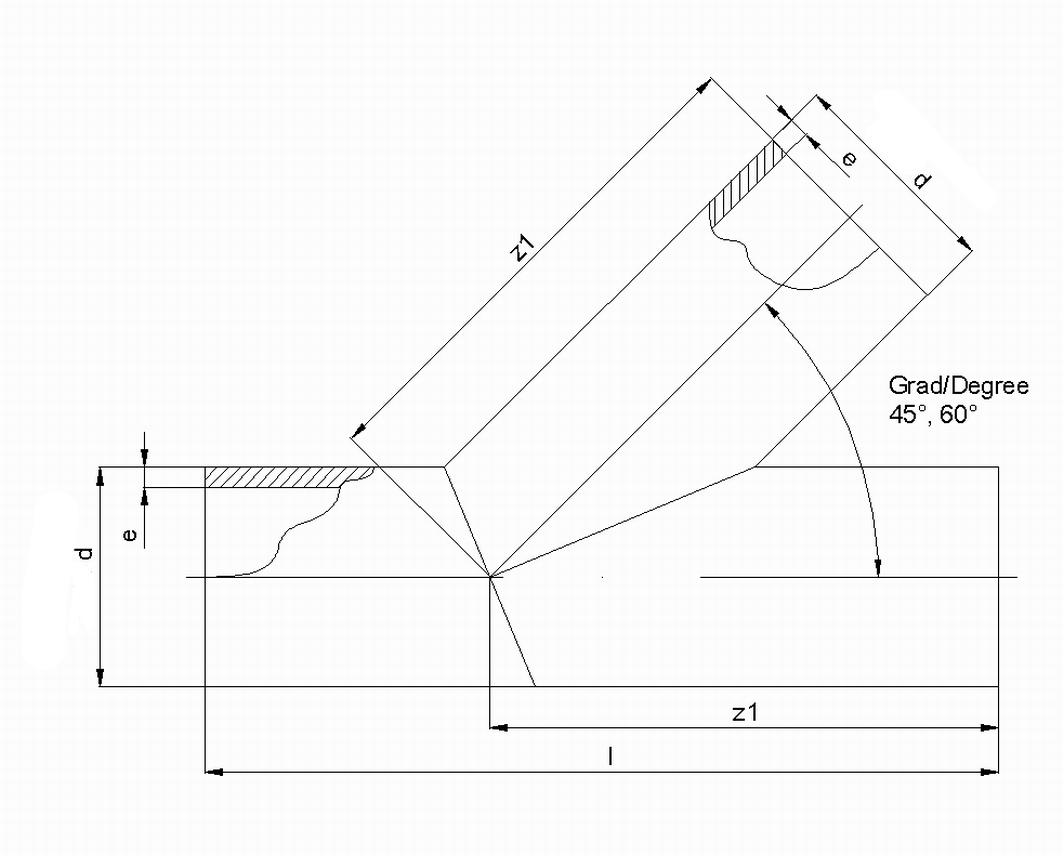

Specifications

Specifications


SDR  17

d (mm) 90

e (mm) 5,4

le1 (mm) 85

z1 (mm) 135

z2 (mm) 230

PN 10

Length (mm) 370

Angle 45

Weight (kg) 1,035
