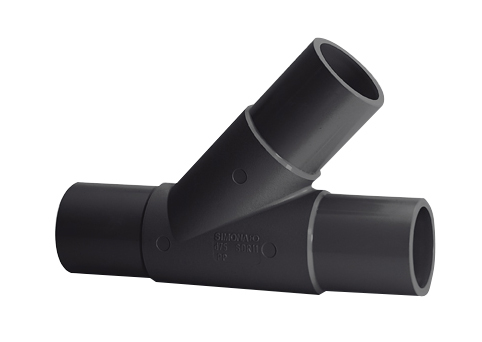

BRANCHES 45D INJECTED LONG SPIGOT PE100 SDR17 110

Product Code: 8137008

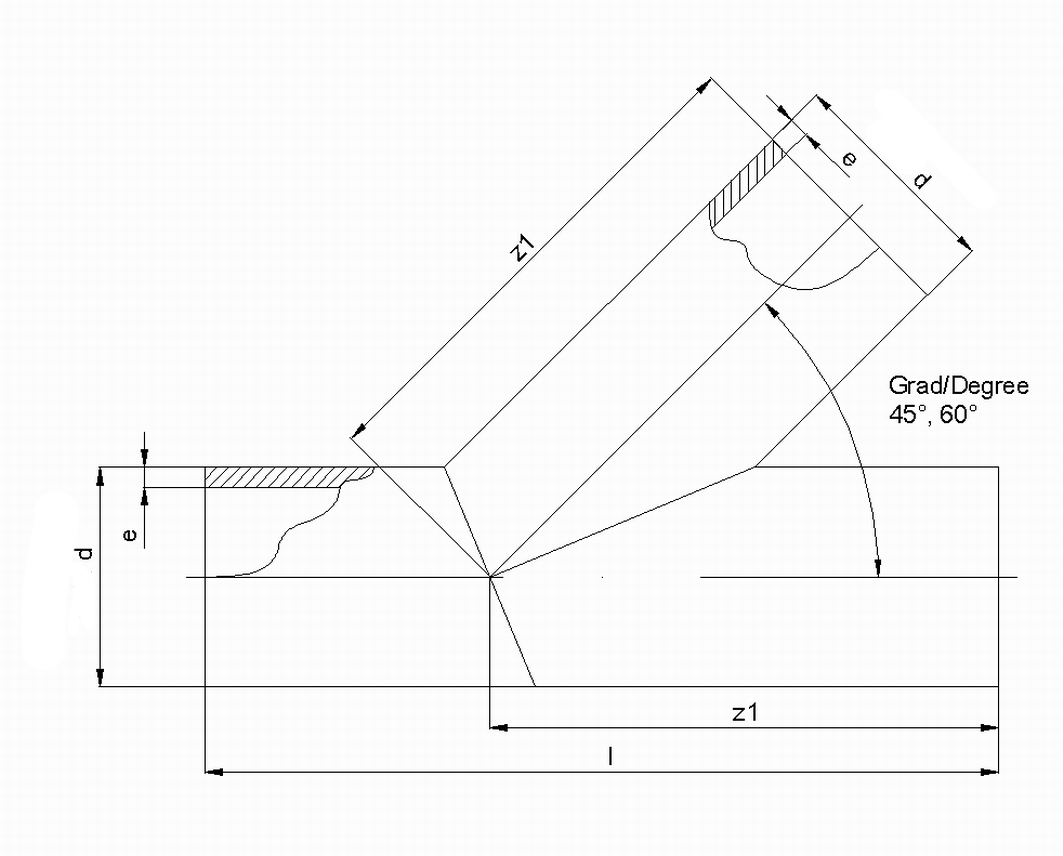

Specifications

Specifications


SDR  17

d (mm) 110

e (mm) 6,6

le1 (mm) 90

z1 (mm) 139

z2 (mm) 260

PN 10

Length (mm) 401

Angle 45

Weight (kg) 2,025
