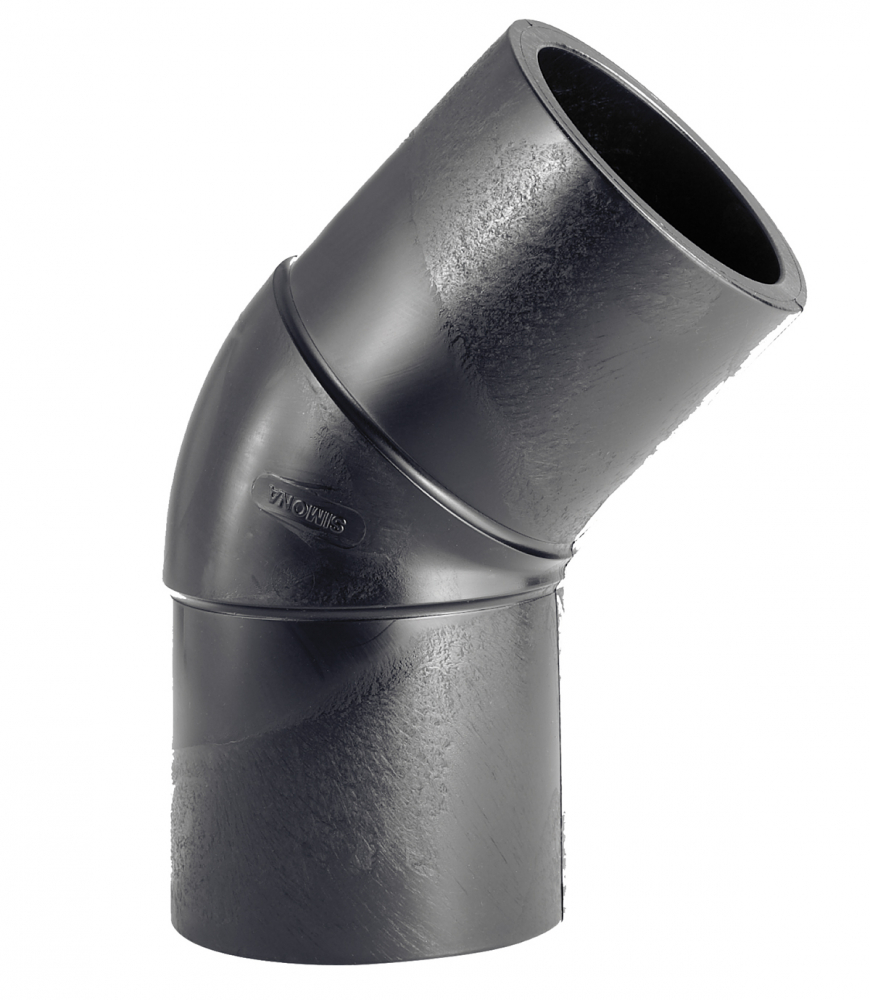

ELBOW 45D INJECTED LONG SPIGOT PE100 SDR11 40

ELBOW 45D INJECTED LONG SPIGOT PE100 SDR11 40

Product Code: 8192002

Qty:

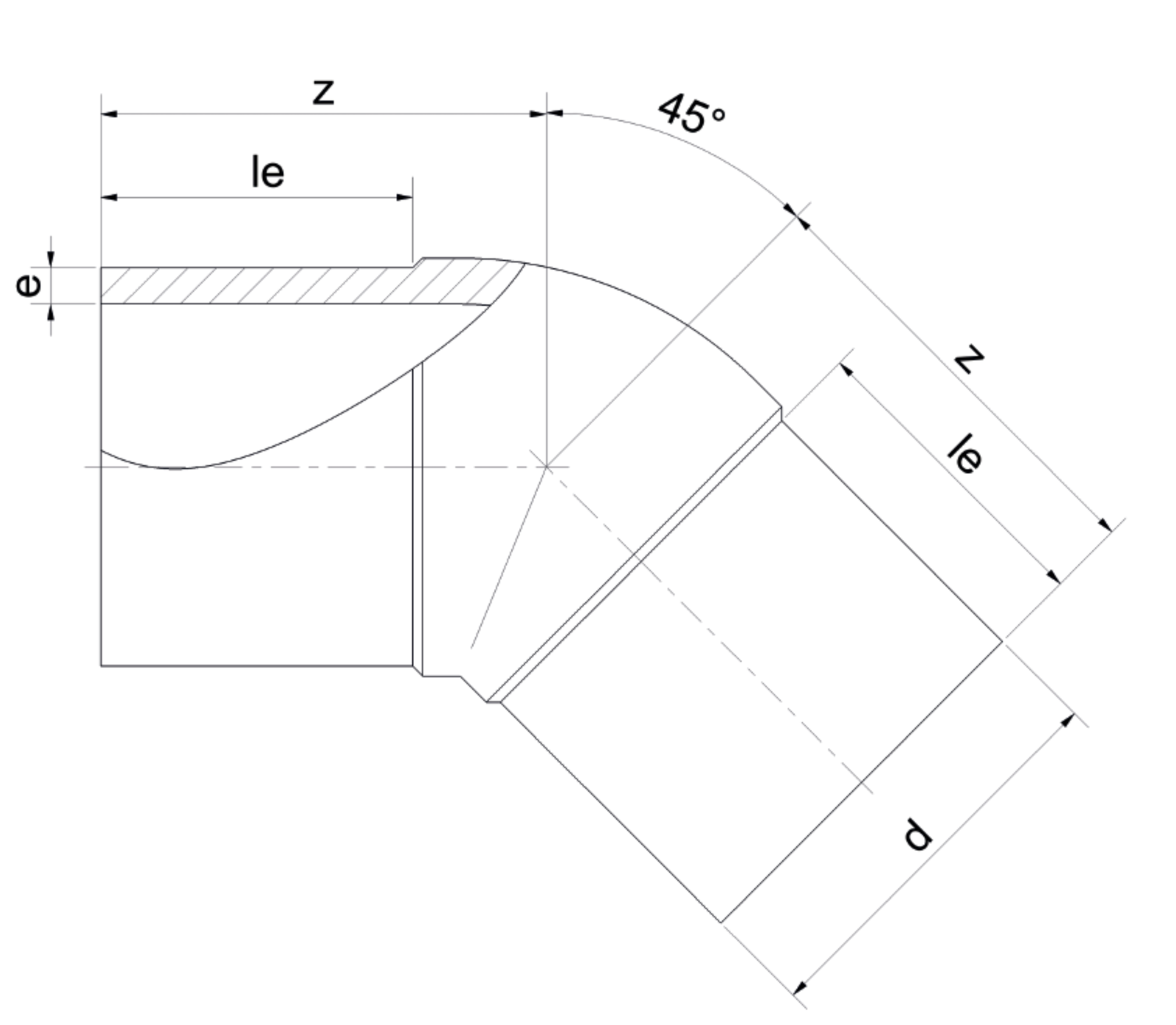

Specifications

Specifications

Specifications

SDR 11

d (mm) 40

e (mm) 3,7

le1 (mm) 74

z1 (mm) 95

PN 16

Angle 45

Weight (kg) 0,09
