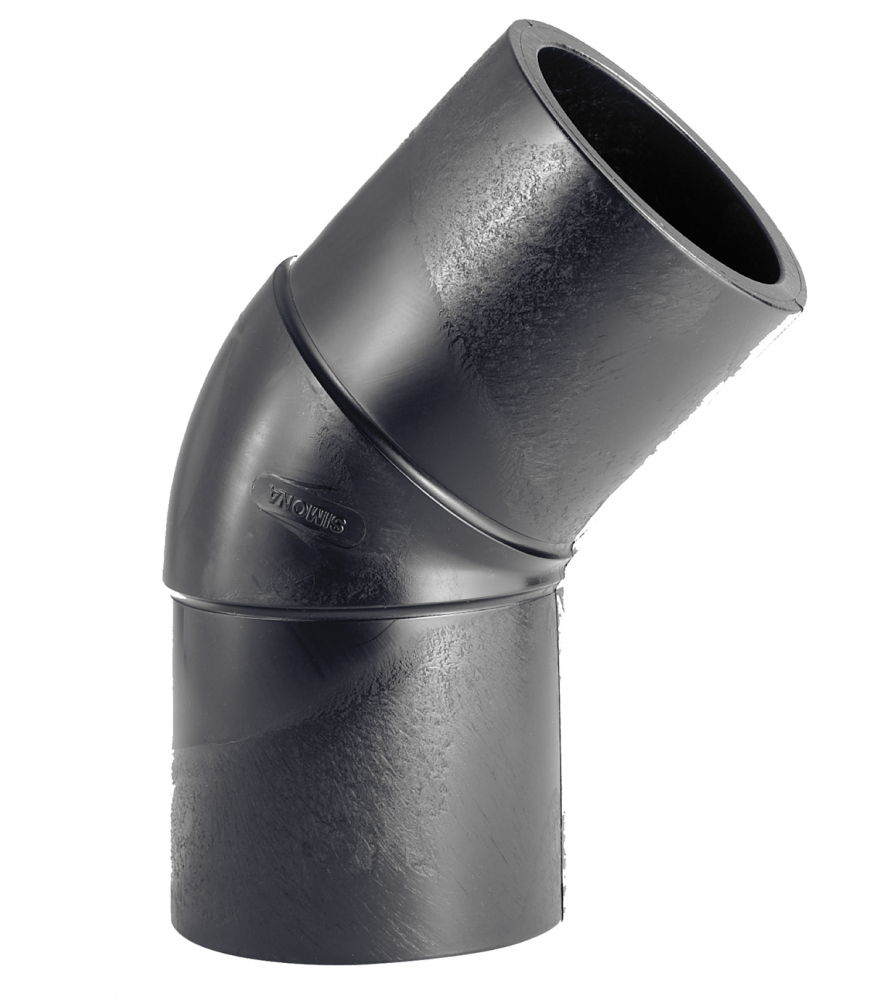

ELBOW 45D INJECTED LONG SPIGOT PE100 SDR11 225

ELBOW 45D INJECTED LONG SPIGOT PE100 SDR11 225

ELBOW 45D INJECTED LONG SPIGOT PE100 SDR11 225

Product Code: 8192013

Qty:

Specifications

Specifications

Specifications

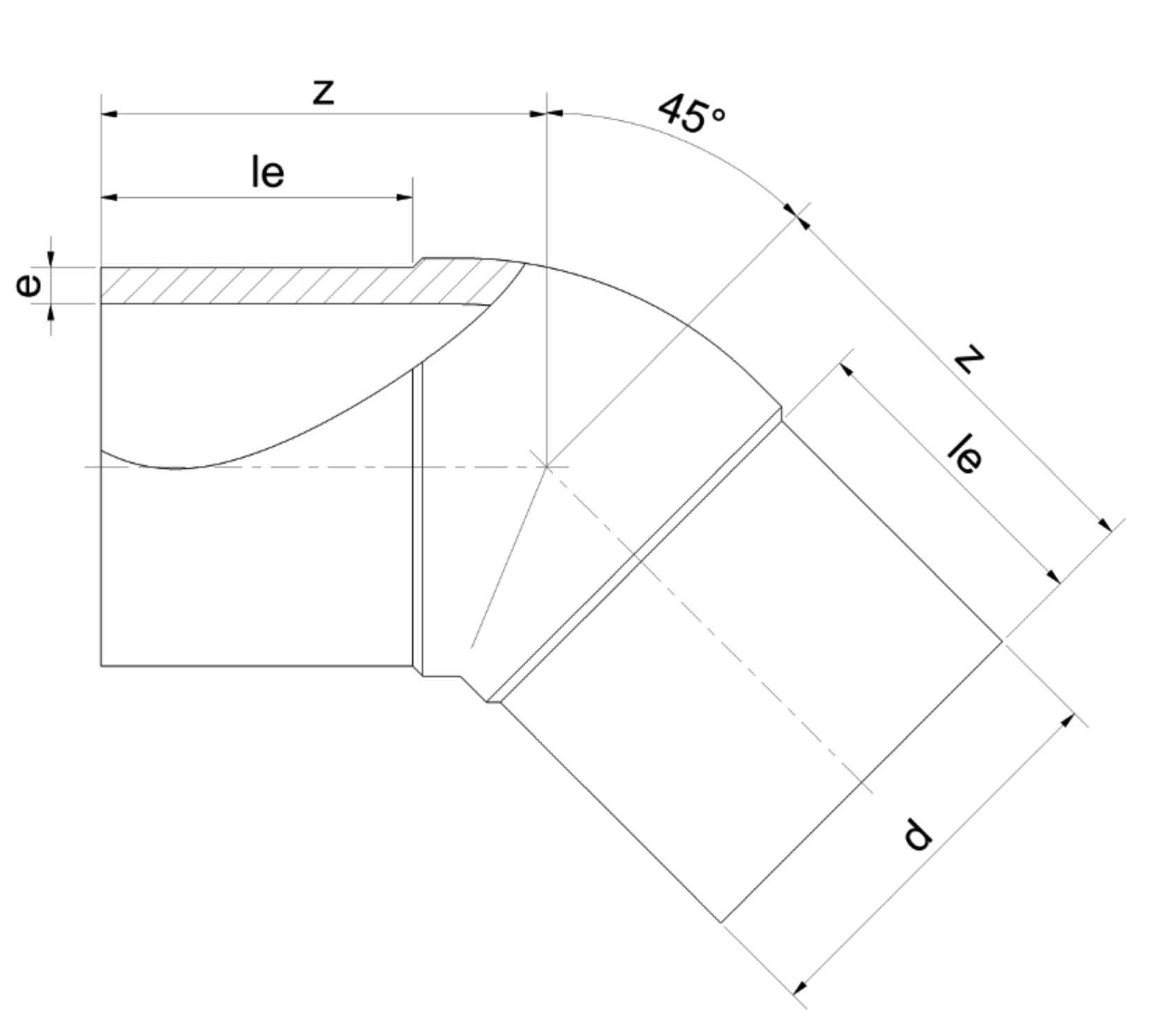

SDR 11

d (mm) 225

e (mm) 20,5

le1 (mm) 154

z1 (mm) 210

PN 16

Angle 45

Weight (kg) 6,145
