Home /
SIMONA Spigots and Flanges /
Long Spigot /
90 Degree Bends /

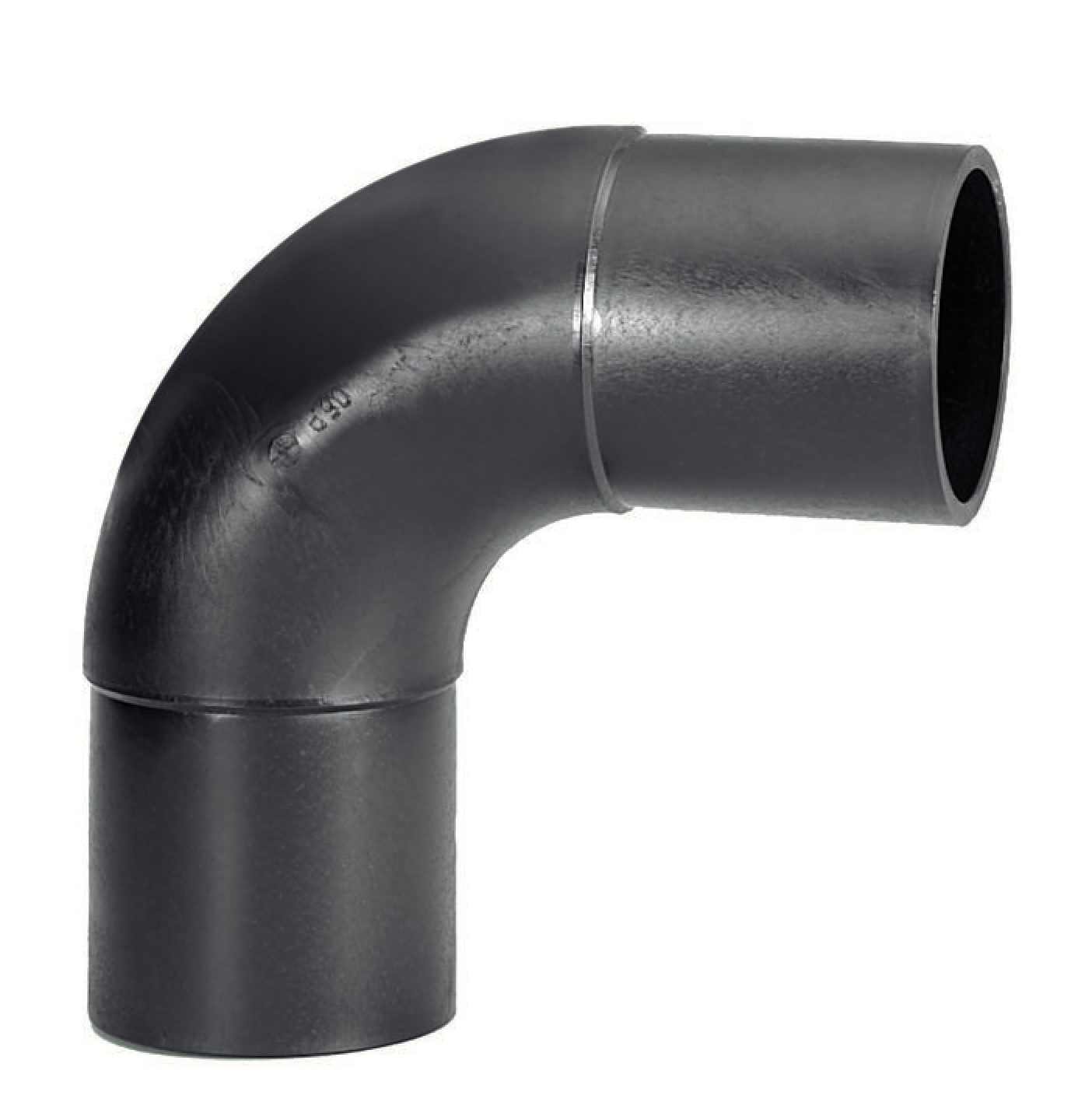

BEND 90D INJECTED LONG SPIGOT PE100 SDR11 40

BEND 90D INJECTED LONG SPIGOT PE100 SDR11 40

BEND 90D INJECTED LONG SPIGOT PE100 SDR11 40

Product Code: 8191002

Qty:

Specifications

Specifications

Specifications

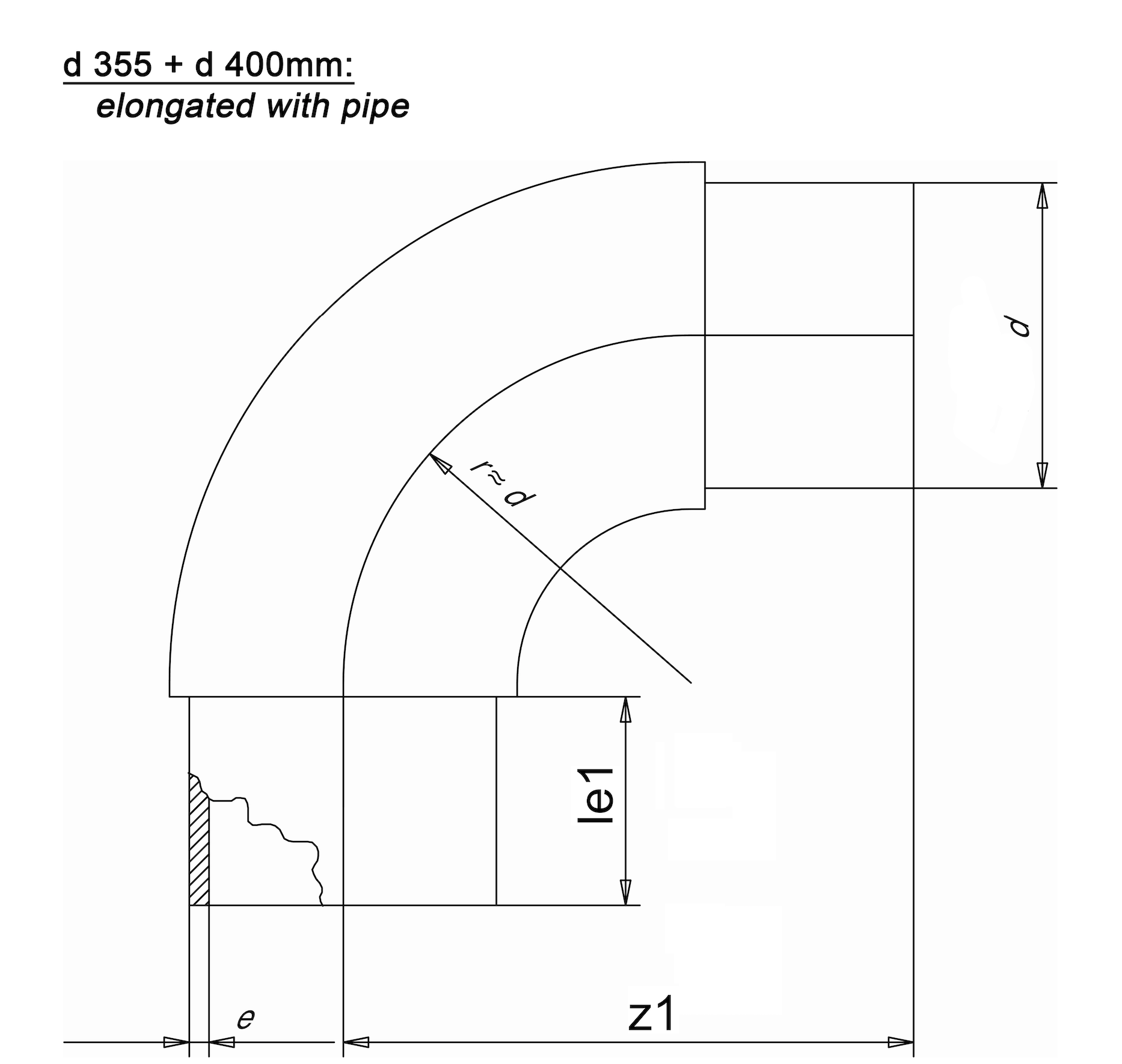

SDR 11

d (mm) 40

e (mm) 3,7

le1 (mm) 52

le2 (mm) 52

z1 (mm) 92

PN 16

Angle 90

Weight (kg) 0,079
