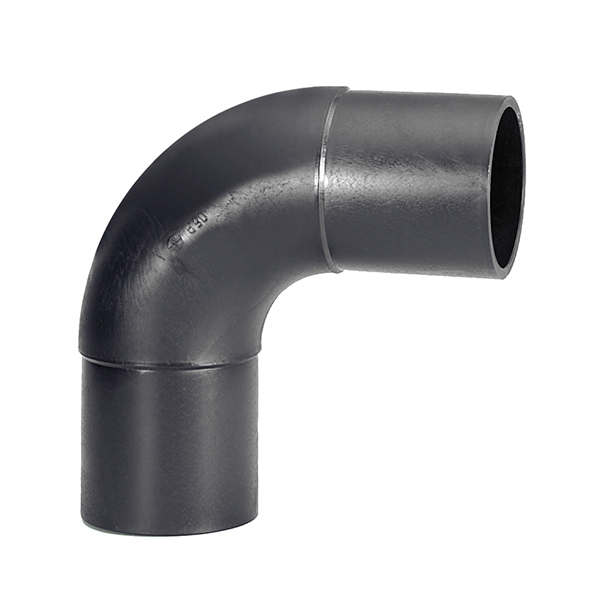

BEND 90D INJECTED LONG SPIGOT PE100 SDR17 140

Product Code: 8191023

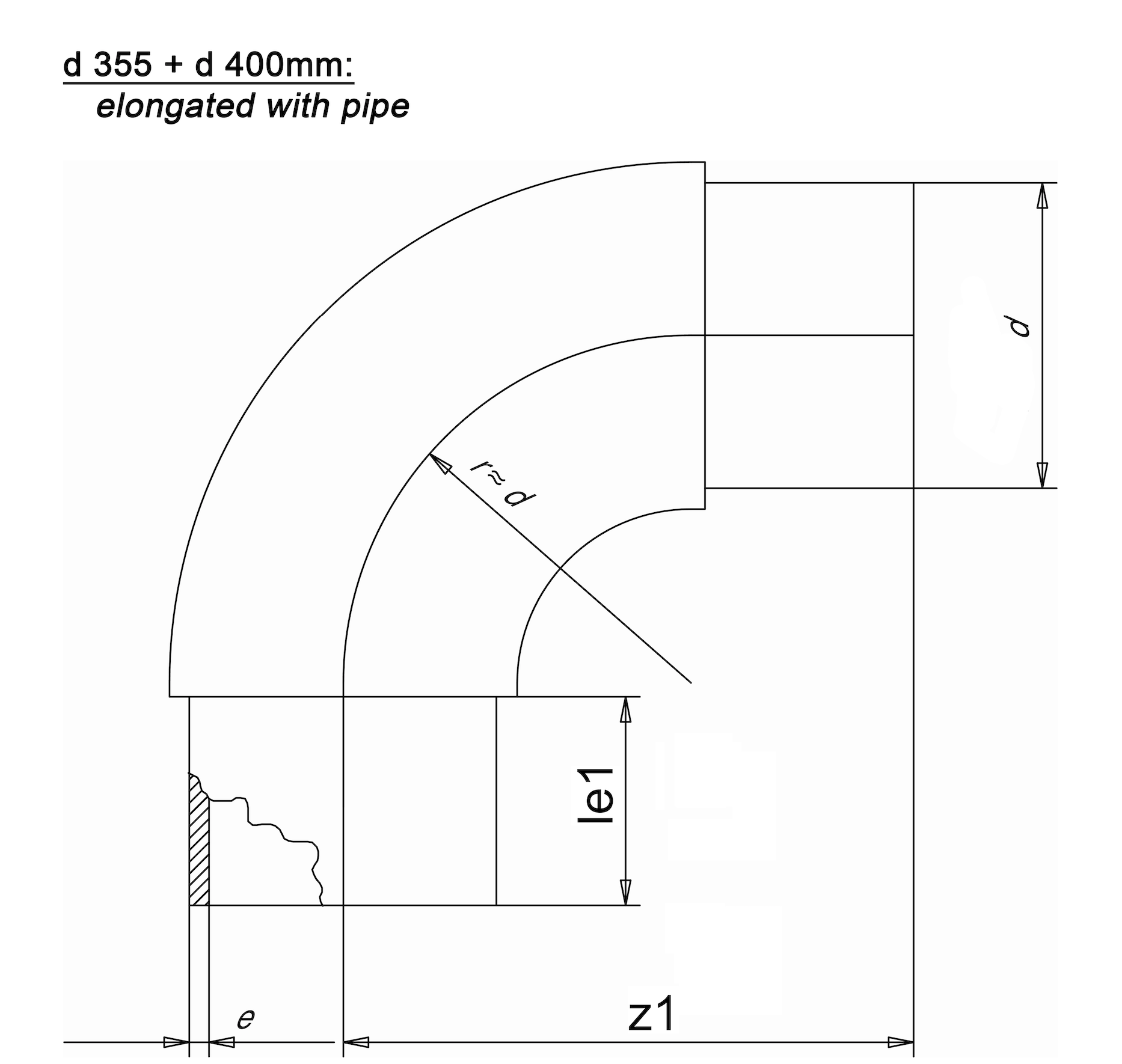

Specifications

Specifications


SDR  17

d (mm) 140

e (mm) 8,3

le1 (mm) 97

le2 (mm) 97

z1 (mm) 237

PN 10

Angle 90

Weight (kg) 1,76
