BEND 90D INJECTED LONG SPIGOT PE100 SDR17 160

BEND 90D INJECTED LONG SPIGOT PE100 SDR17 160

BEND 90D INJECTED LONG SPIGOT PE100 SDR17 160

Product Code: 8191024

Qty:

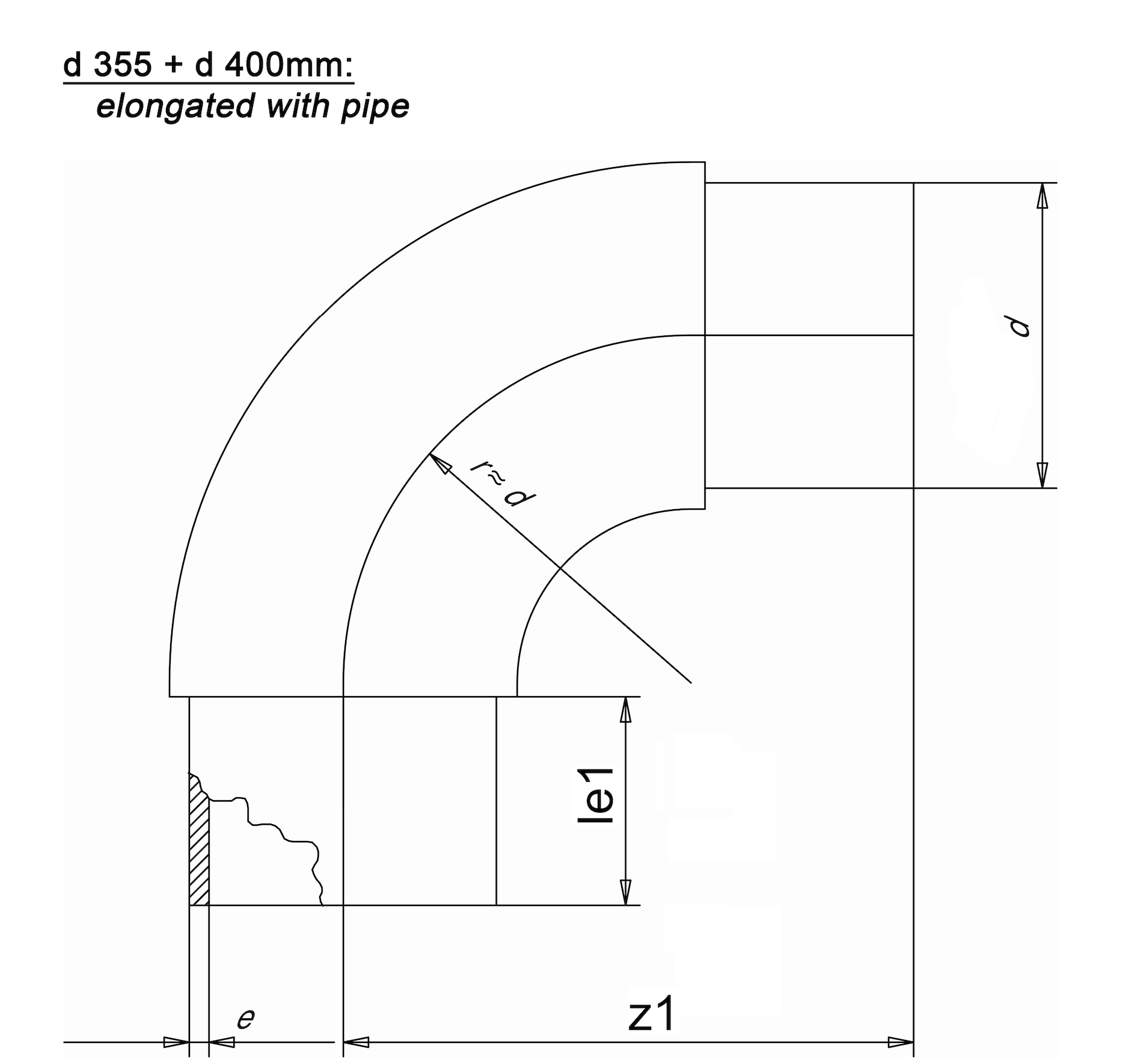

Specifications

Specifications

Specifications

SDR 17

d (mm) 160

e (mm) 9,5

le1 (mm) 103

le2 (mm) 103

z1 (mm) 262

PN 10

Angle 90

Weight (kg) 2,405
