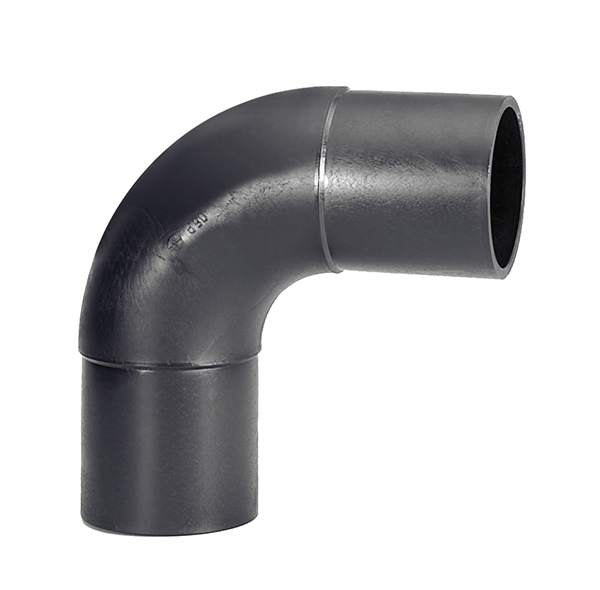

BEND 90D INJECTED LONG SPIGOT PE100 SDR17 180

BEND 90D INJECTED LONG SPIGOT PE100 SDR17 180

BEND 90D INJECTED LONG SPIGOT PE100 SDR17 180

Product Code: 8191025

Qty:

Specifications

Specifications

Specifications

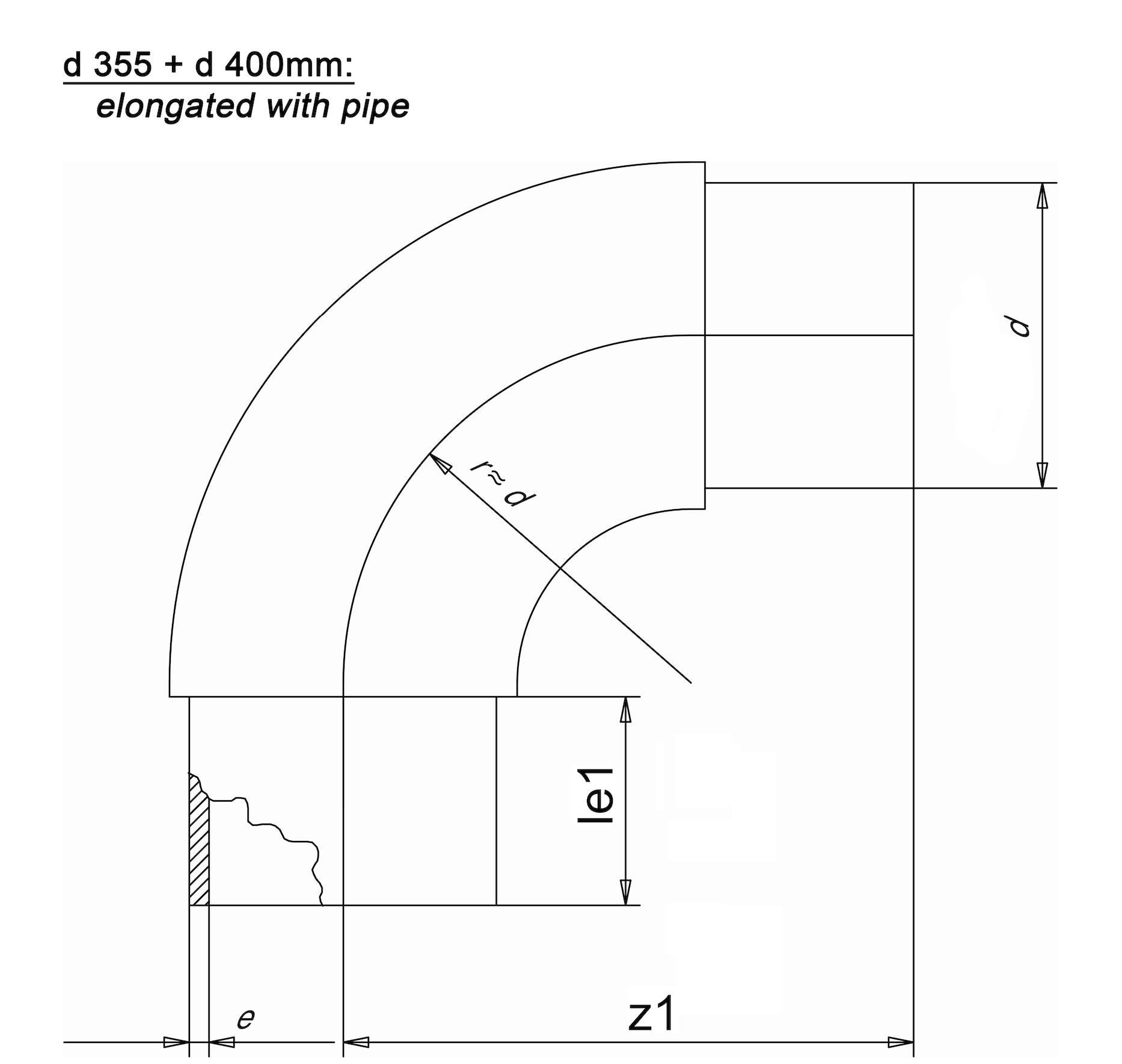

SDR 17

d (mm) 180

e (mm) 10,7

le1 (mm) 113

le2 (mm) 113

z1 (mm) 290

PN 10

Angle 90

Weight (kg) 3,39
