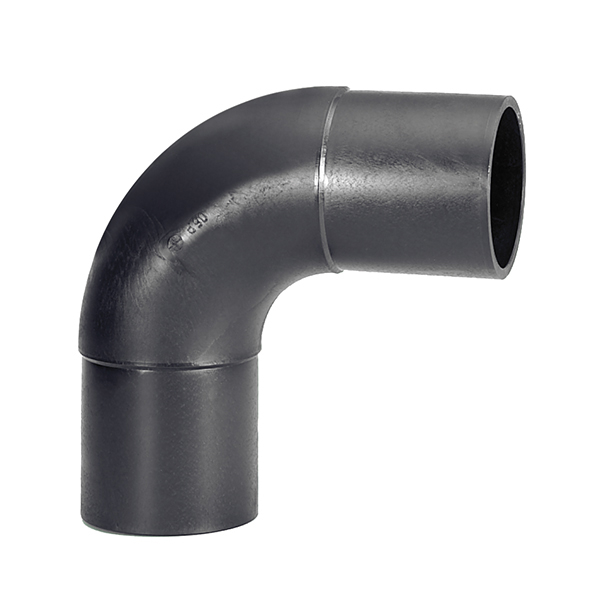

BEND 90D INJECTED LONG SPIGOT PE100 SDR17 200

BEND 90D INJECTED LONG SPIGOT PE100 SDR17 200

BEND 90D INJECTED LONG SPIGOT PE100 SDR17 200

Product Code: 8191026

Qty:

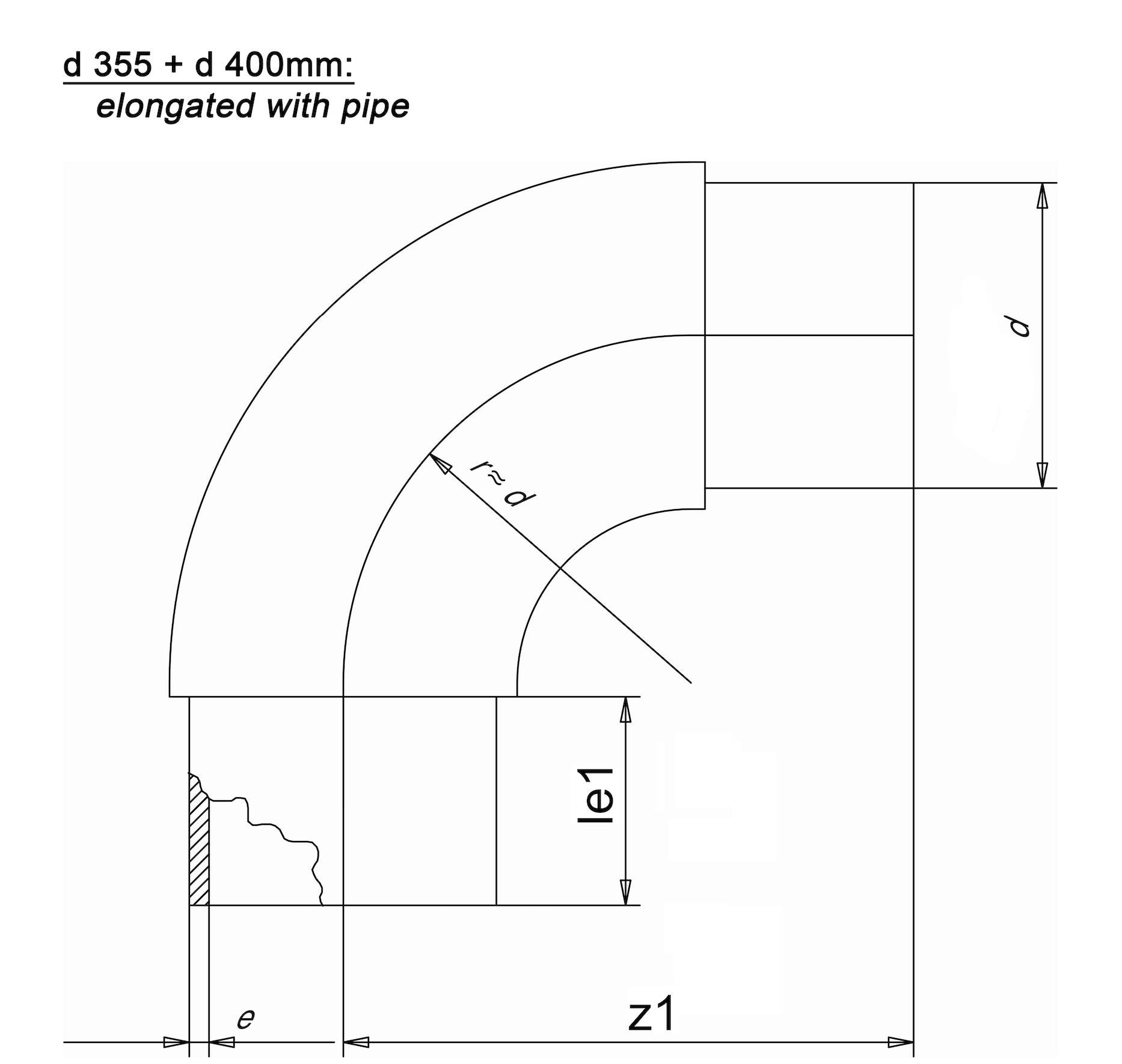

Specifications

Specifications

Specifications

SDR 17

d (mm) 200

e (mm) 11,9

le1 (mm) 122

le2 (mm) 122

z1 (mm) 317

PN 10

Angle 90

Weight (kg) 4,61
