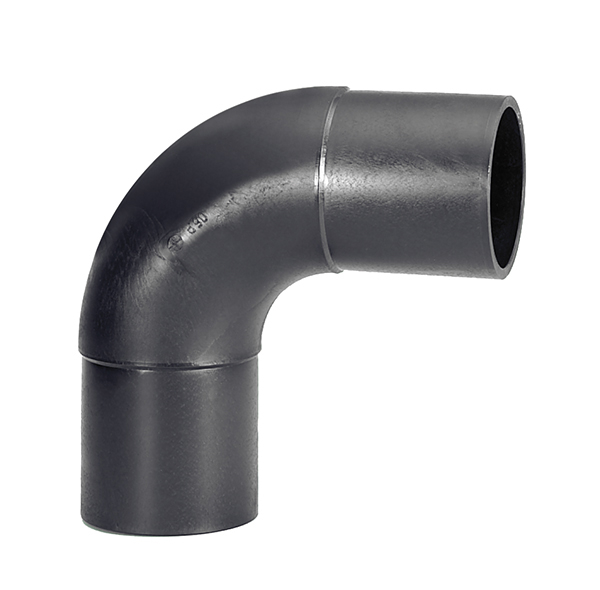

BEND 90D INJECTED LONG SPIGOT PE100 SDR17 280

BEND 90D INJECTED LONG SPIGOT PE100 SDR17 280

BEND 90D INJECTED LONG SPIGOT PE100 SDR17 280

Product Code: 8191029

Qty:

Specifications

Specifications

Specifications

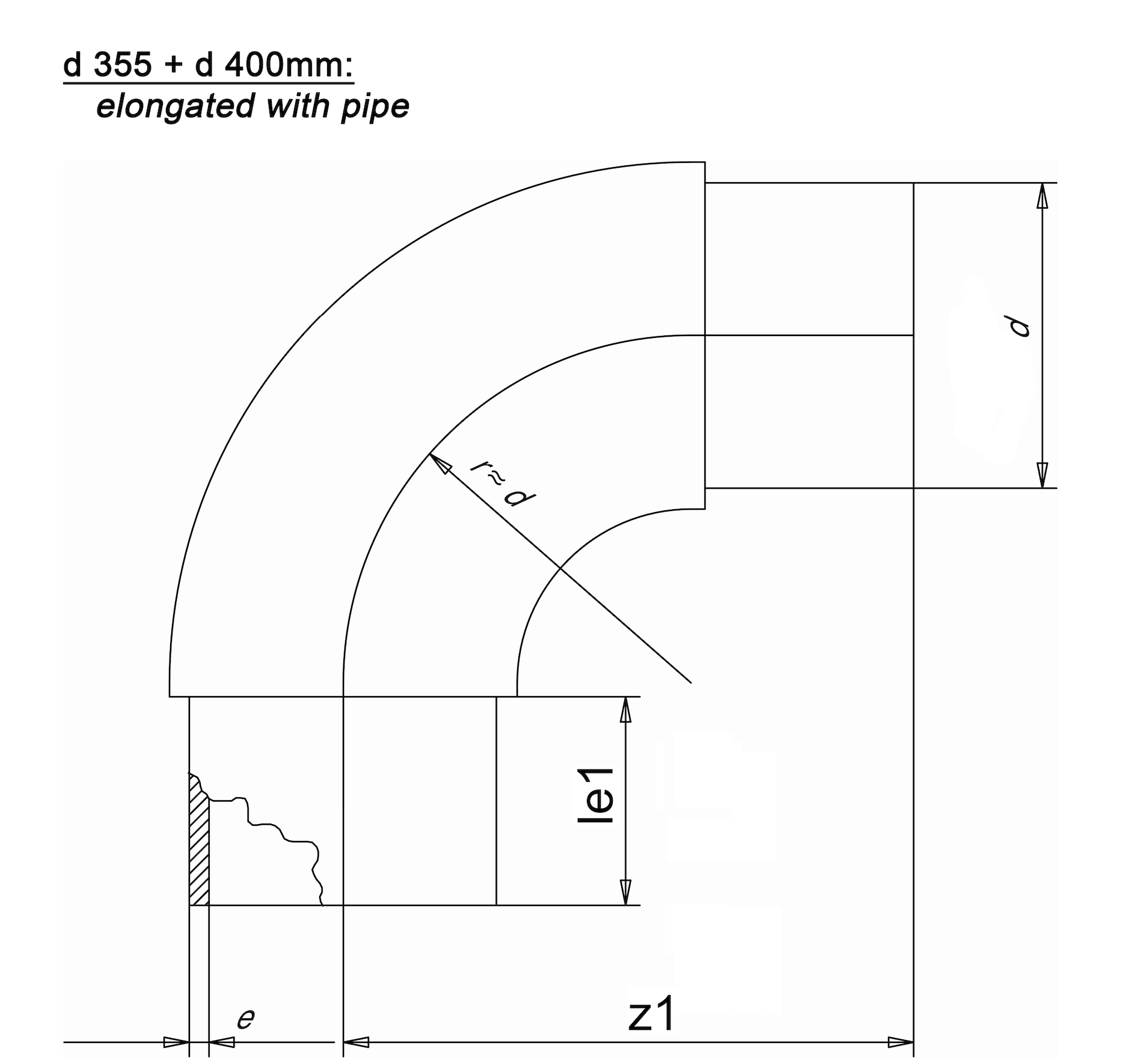

SDR 17

d (mm) 280

e (mm) 16,6

le1 (mm) 154

le2 (mm) 154

z1 (mm) 430

PN 10

Angle 90

Weight (kg) 13,71
