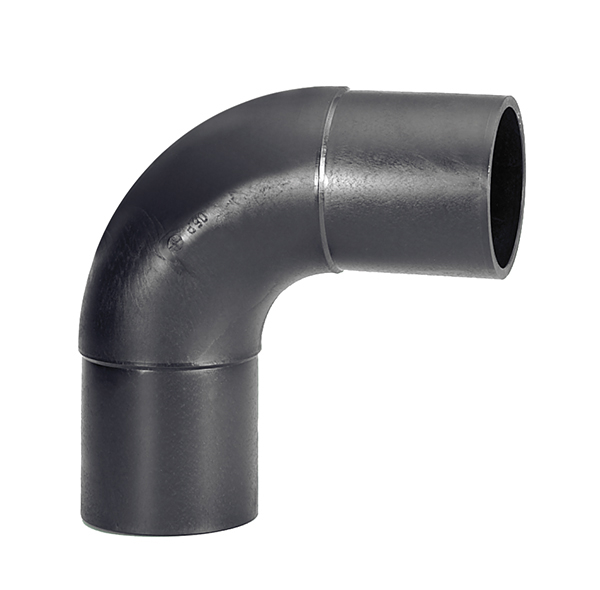

BEND 90D INJECTED LONG SPIGOT PE100 SDR17 315

BEND 90D INJECTED LONG SPIGOT PE100 SDR17 315

BEND 90D INJECTED LONG SPIGOT PE100 SDR17 315

Product Code: 8191030

Qty:

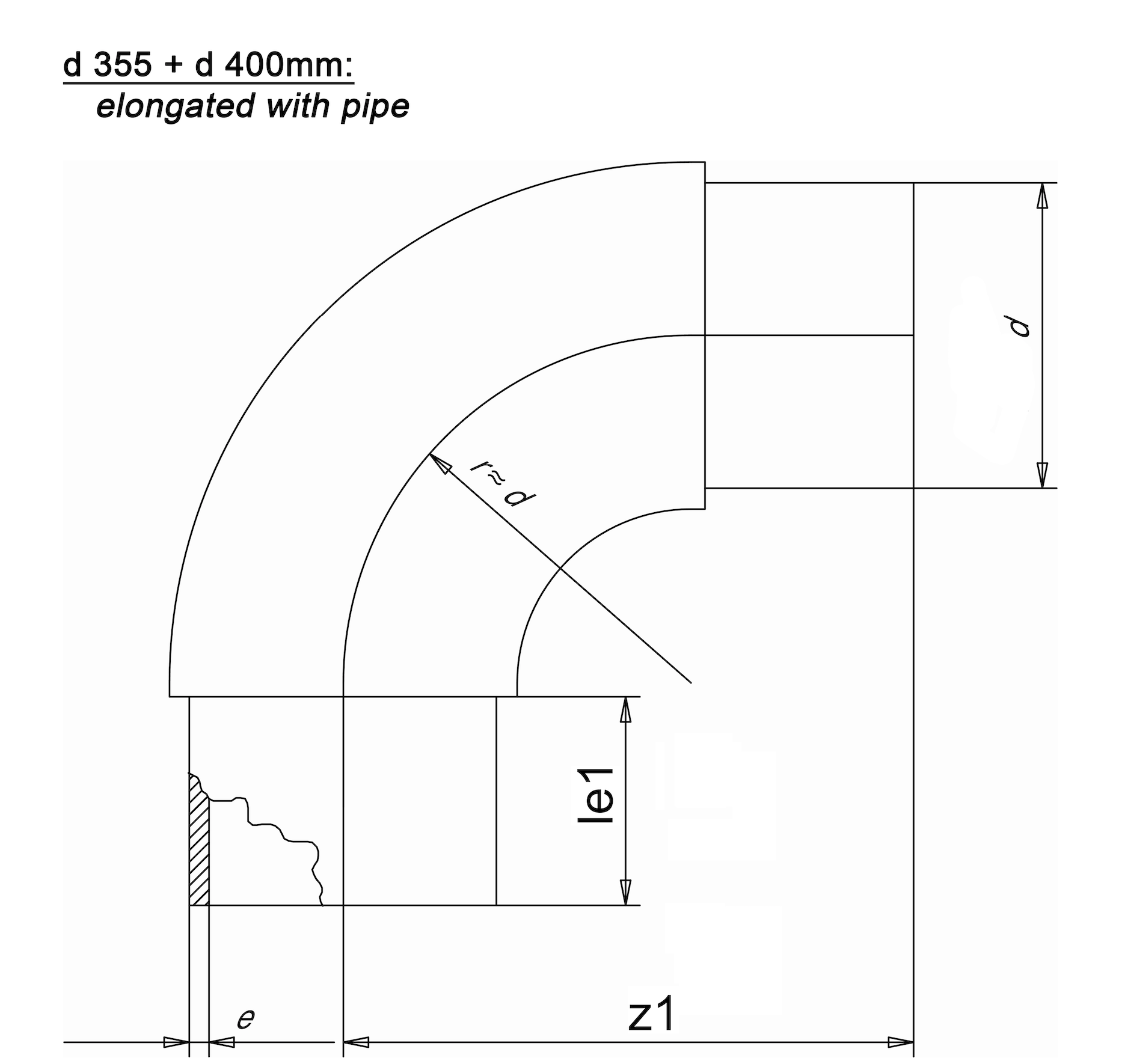

Specifications

Specifications

Specifications

SDR 17

d (mm) 315

e (mm) 18,7

le1 (mm) 153

le2 (mm) 153

z1 (mm) 465

PN 10

Angle 90

Weight (kg) 19,35
