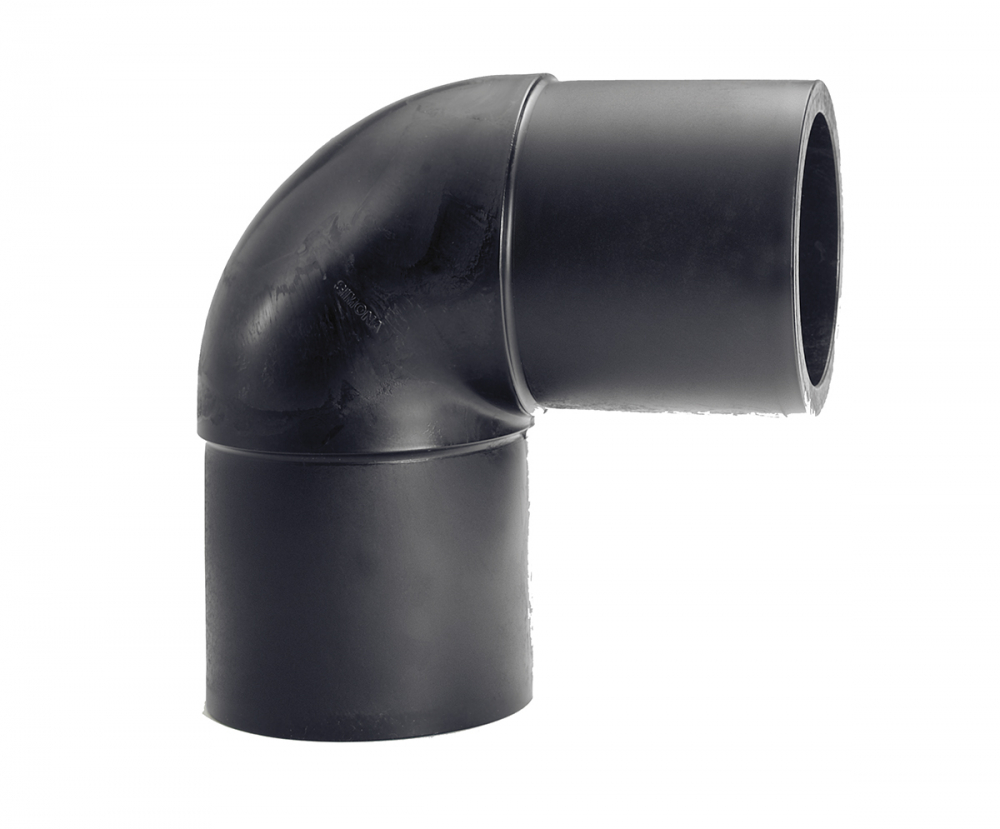

ELBOW 90D INJECTED LONG SPIGOT PE100 SDR11 315

ELBOW 90D INJECTED LONG SPIGOT PE100 SDR11 315

ELBOW 90D INJECTED LONG SPIGOT PE100 SDR11 315

Product Code: 8192046

Qty:

Specifications

Specifications

Specifications

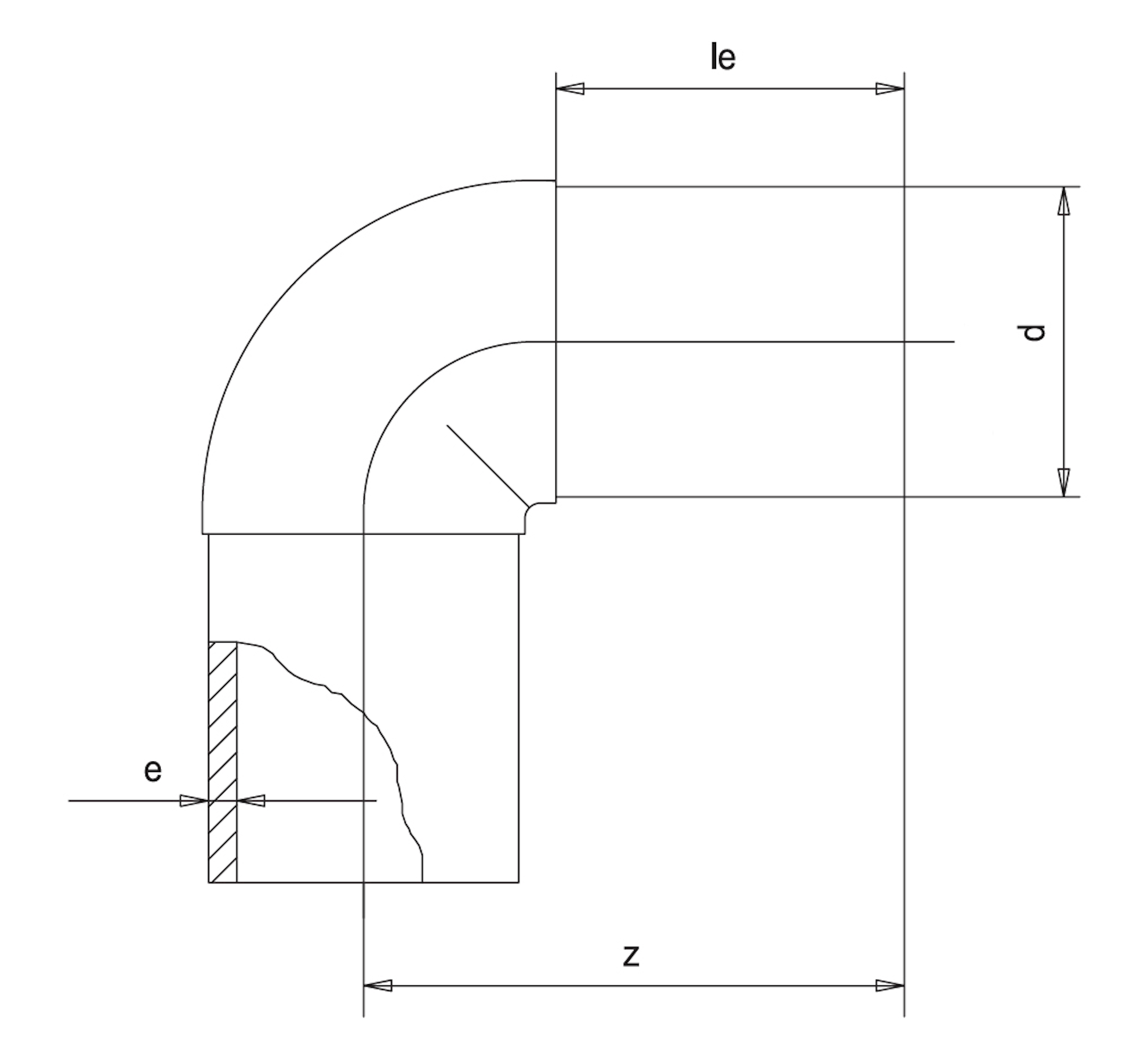

SDR 11

d (mm) 315

e (mm) 28,6

le1 (mm) 154

z1 (mm) 370

PN 16

Angle 90

Weight (kg) 21,36
