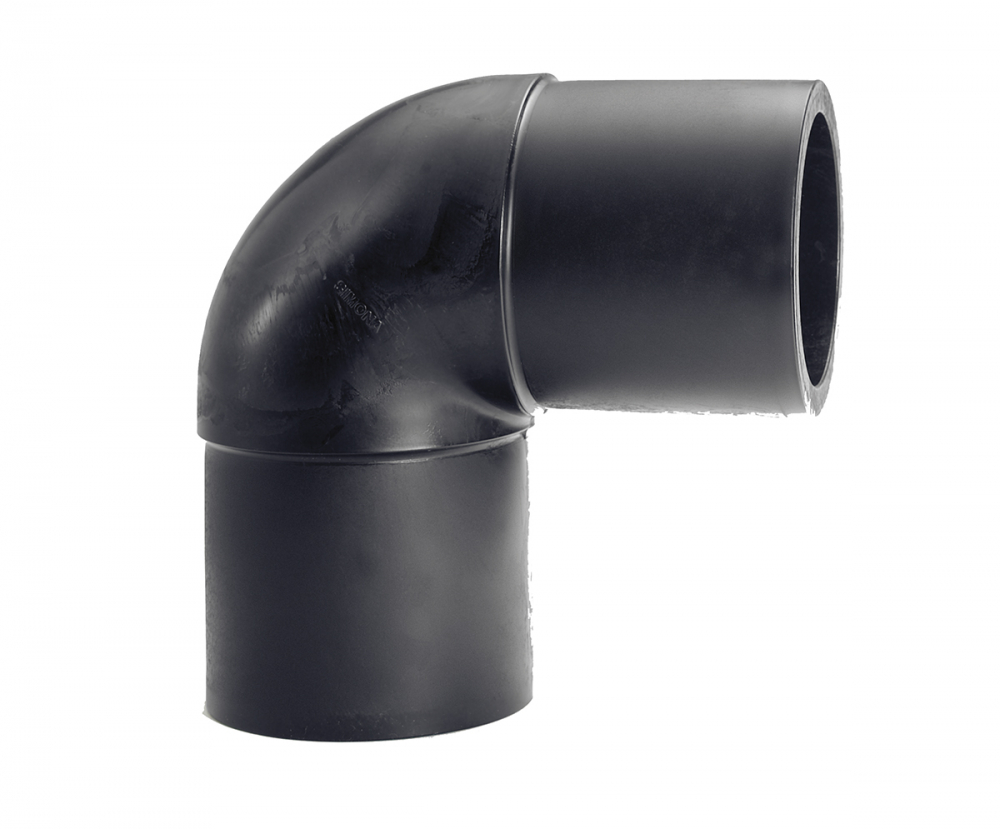

ELBOW 90D INJECTED LONG SPIGOT PE100 SDR17 160

ELBOW 90D INJECTED LONG SPIGOT PE100 SDR17 160

ELBOW 90D INJECTED LONG SPIGOT PE100 SDR17 160

Product Code: 8192054

Qty:

Specifications

Specifications

Specifications

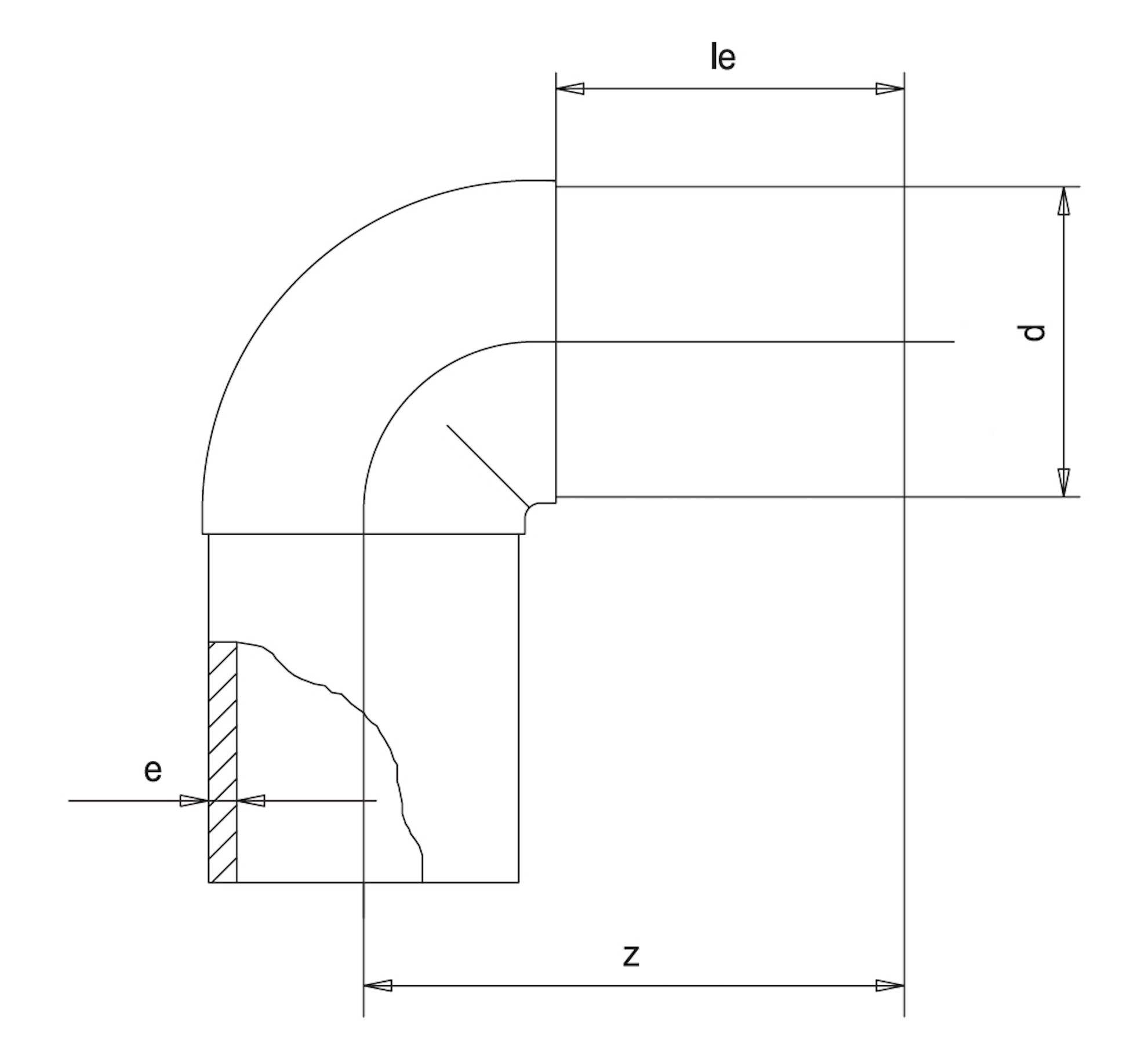

SDR 17

d (mm) 160

e (mm) 9,5

le1 (mm) 141

z1 (mm) 230

PN 10

Angle 90

Weight (kg) 2,375
