ELBOW 90D INJECTED LONG SPIGOT PE100 SDR17 280

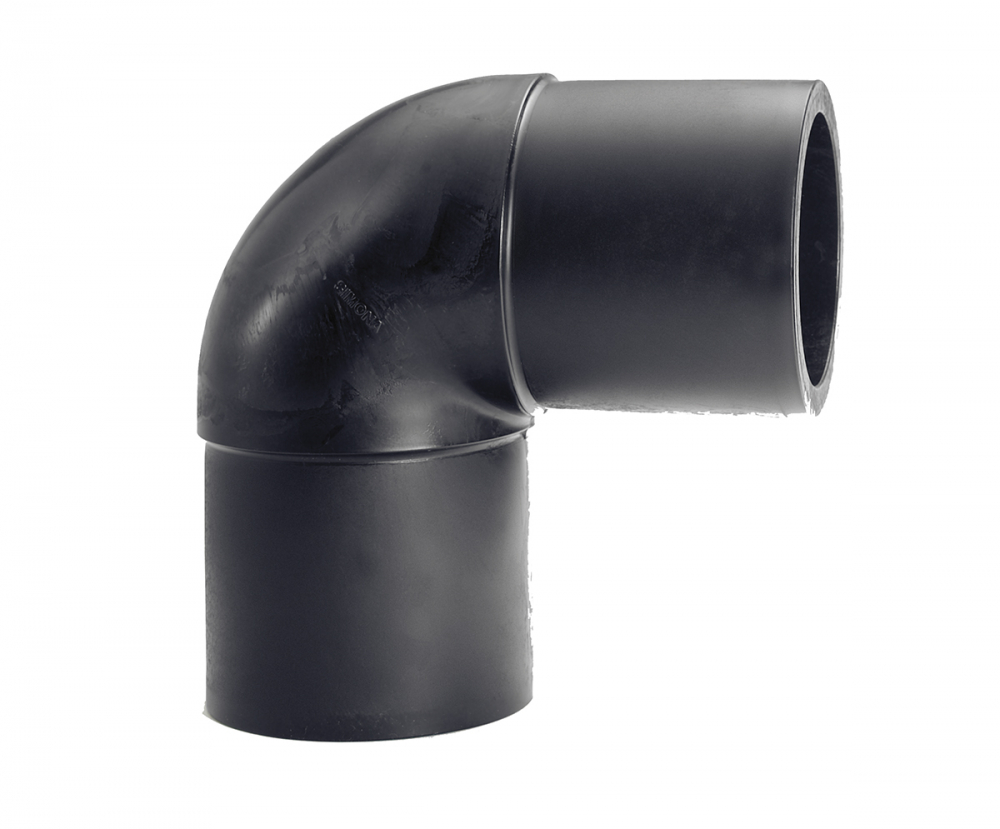

ELBOW 90D INJECTED LONG SPIGOT PE100 SDR17 280

ELBOW 90D INJECTED LONG SPIGOT PE100 SDR17 280

Product Code: 8192059

Qty:

Specifications

Specifications

Specifications

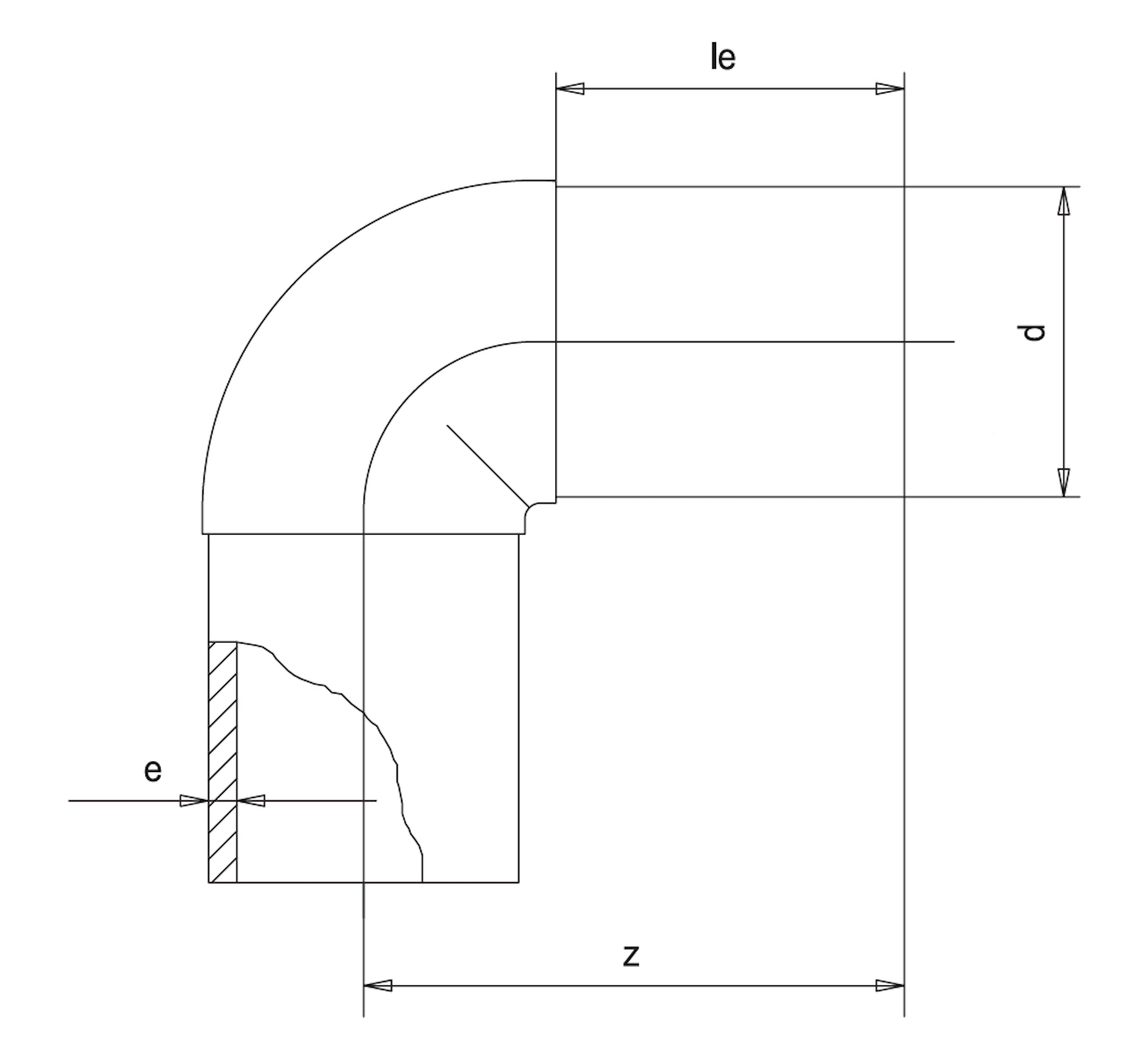

SDR 17

d (mm) 280

e (mm) 16,6

le1 (mm) 144

z1 (mm) 325

PN 10

Angle 90

Weight (kg) 10,67
