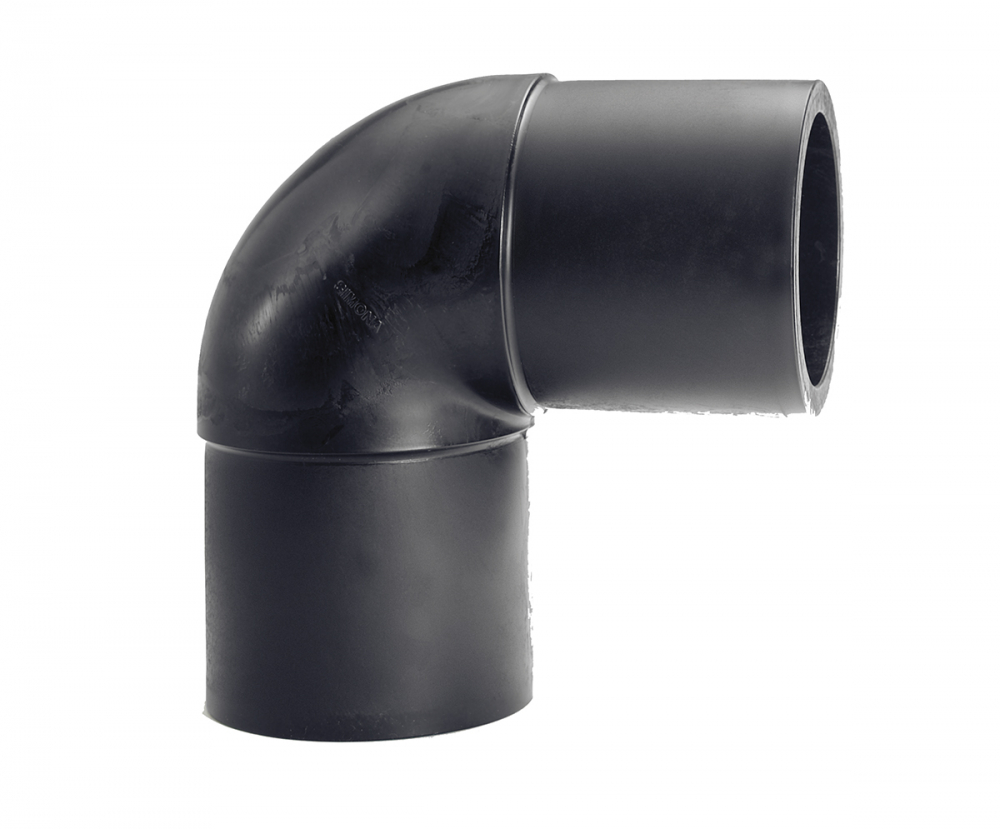

ELBOW 90D INJECTED LONG SPIGOT PE100 SDR17 315

ELBOW 90D INJECTED LONG SPIGOT PE100 SDR17 315

ELBOW 90D INJECTED LONG SPIGOT PE100 SDR17 315

Product Code: 8192060

Qty:

Specifications

Specifications

Specifications

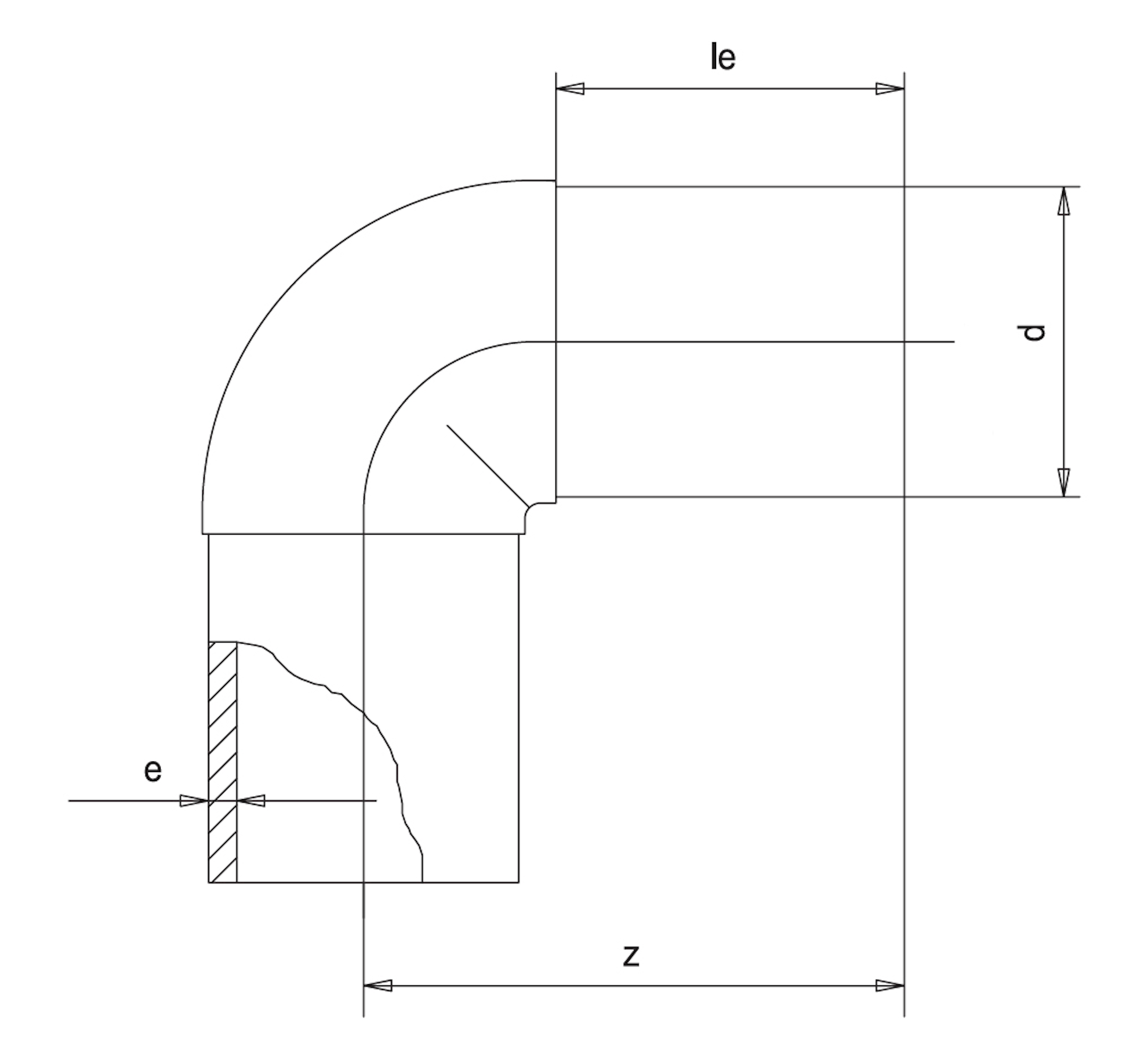

SDR 17

d (mm) 315

e (mm) 18,7

le1 (mm) 153

z1 (mm) 370

PN 10

Angle 90

Weight (kg) 15,81
