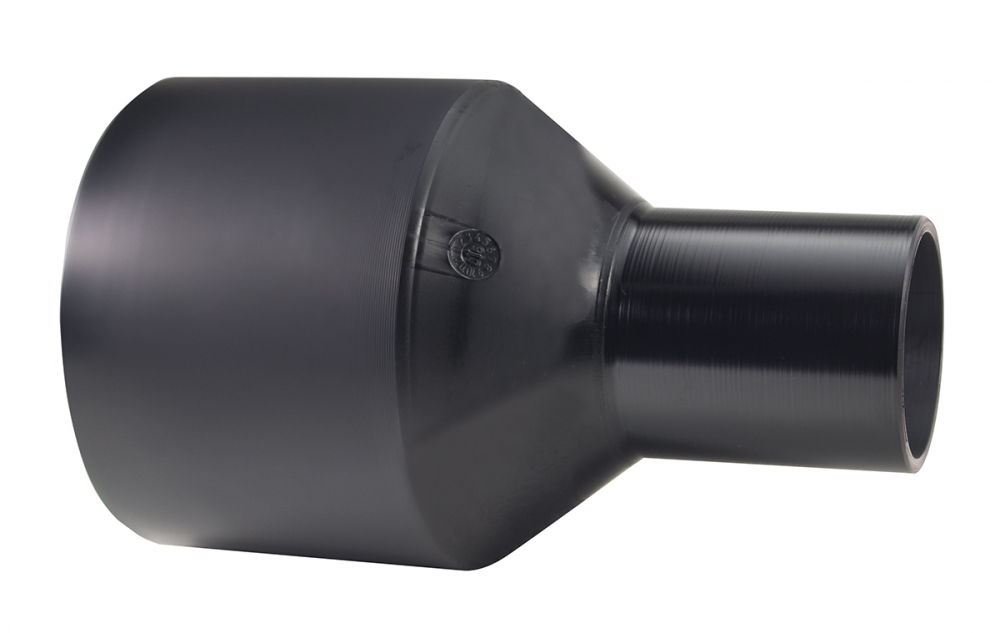

CONCENTRIC REDUCER INJECTED LONG SPIGOT PE100 SDR11 140X90

Product Code: 8100159

Specifications

Specifications

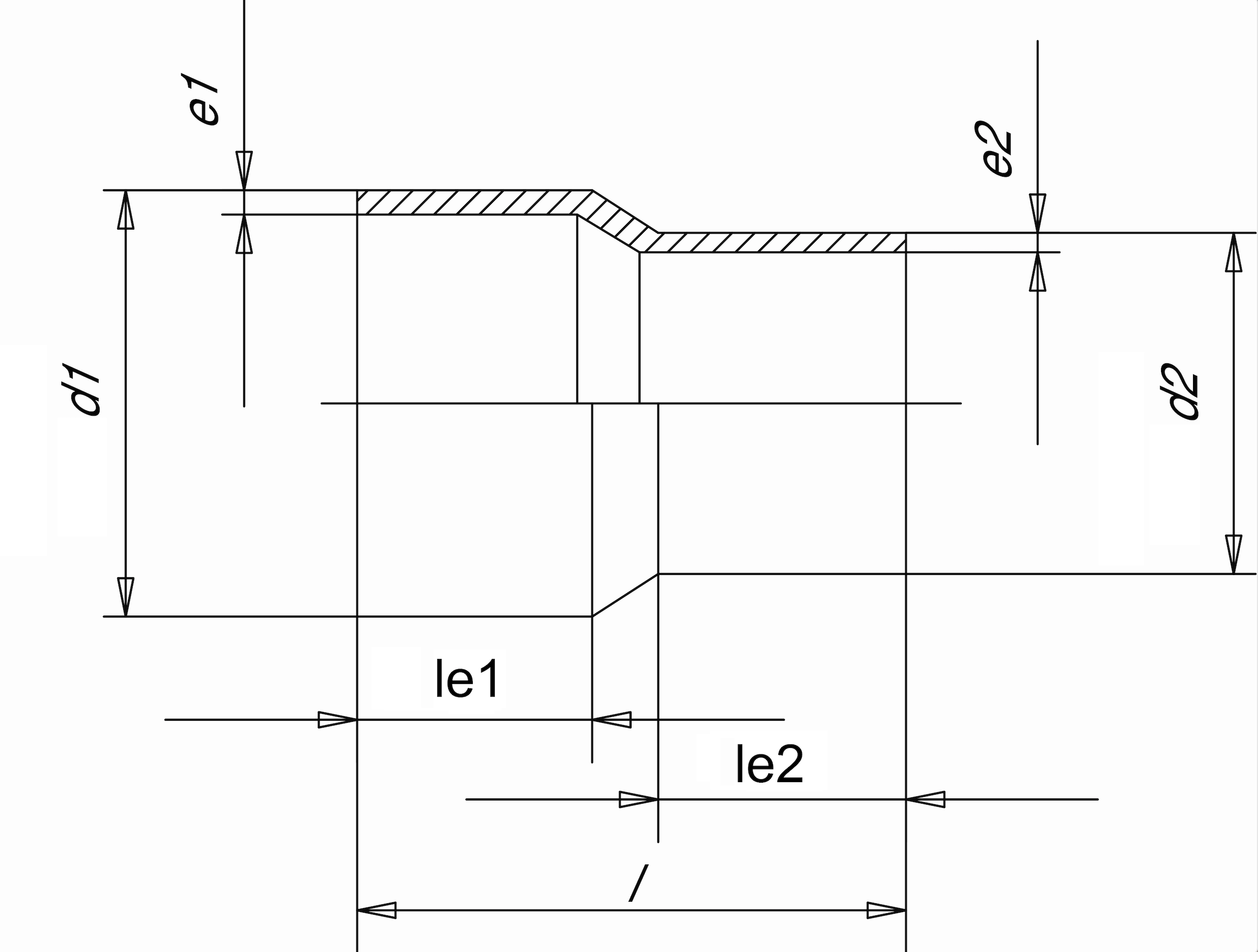

SDR  11

d1 (mm) 140

d2 (mm) 90

e (mm) 12,7

e2 (mm) 8,2

le1 (mm) 112

le2 (mm) 86

Length (mm) 237

Weight (kg) 0,94
