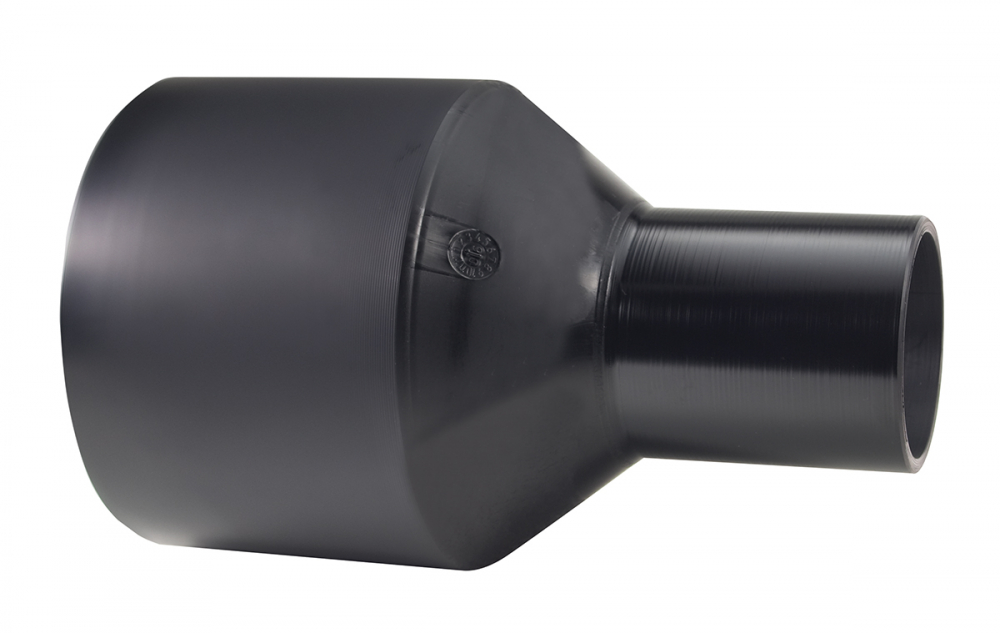

CONCENTRIC REDUCER INJECTED LONG SPIGOT PE100 SDR11 160X140

Product Code: 8100165

Specifications

Specifications

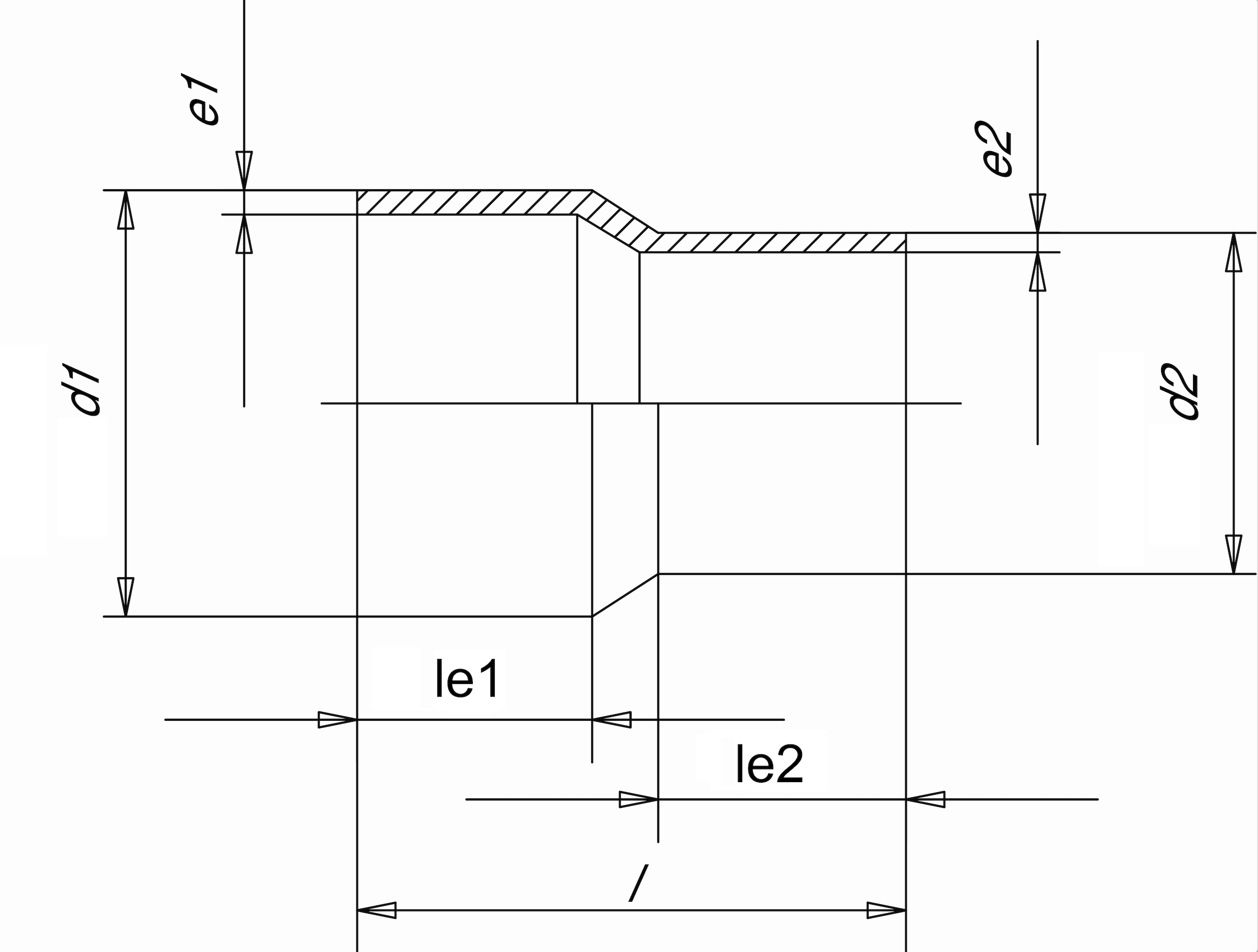

SDR  11

d1 (mm) 160

d2 (mm) 140

e (mm) 14,6

e2 (mm) 12,7

le1 (mm) 110

le2 (mm) 106

Length (mm) 254

Weight (kg) 1,595
