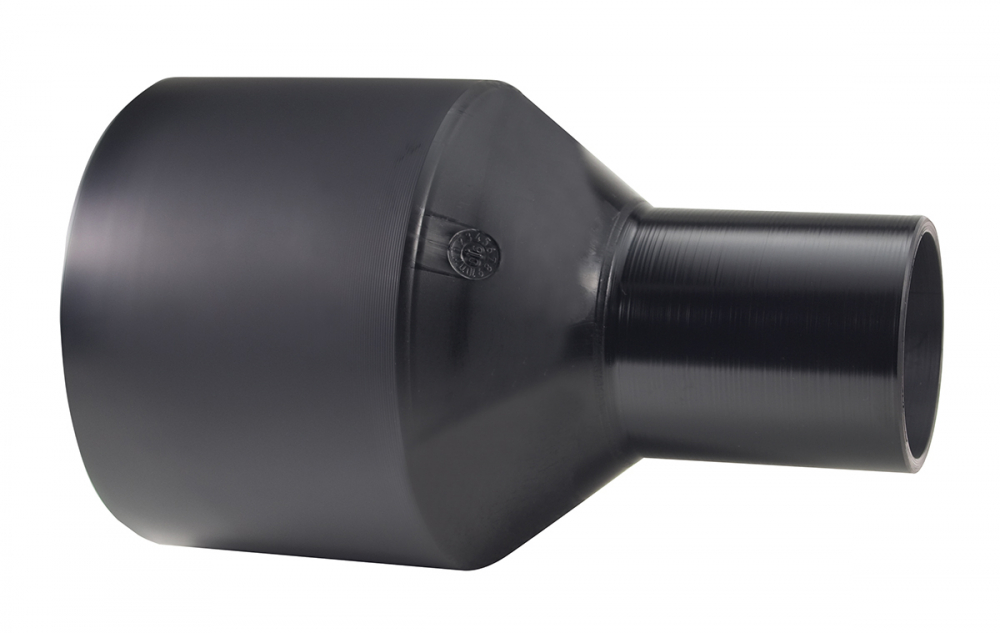

CONCENTRIC REDUCER INJECTED LONG SPIGOT PE100 SDR17 250X160

Product Code: 8149137

Specifications

Specifications

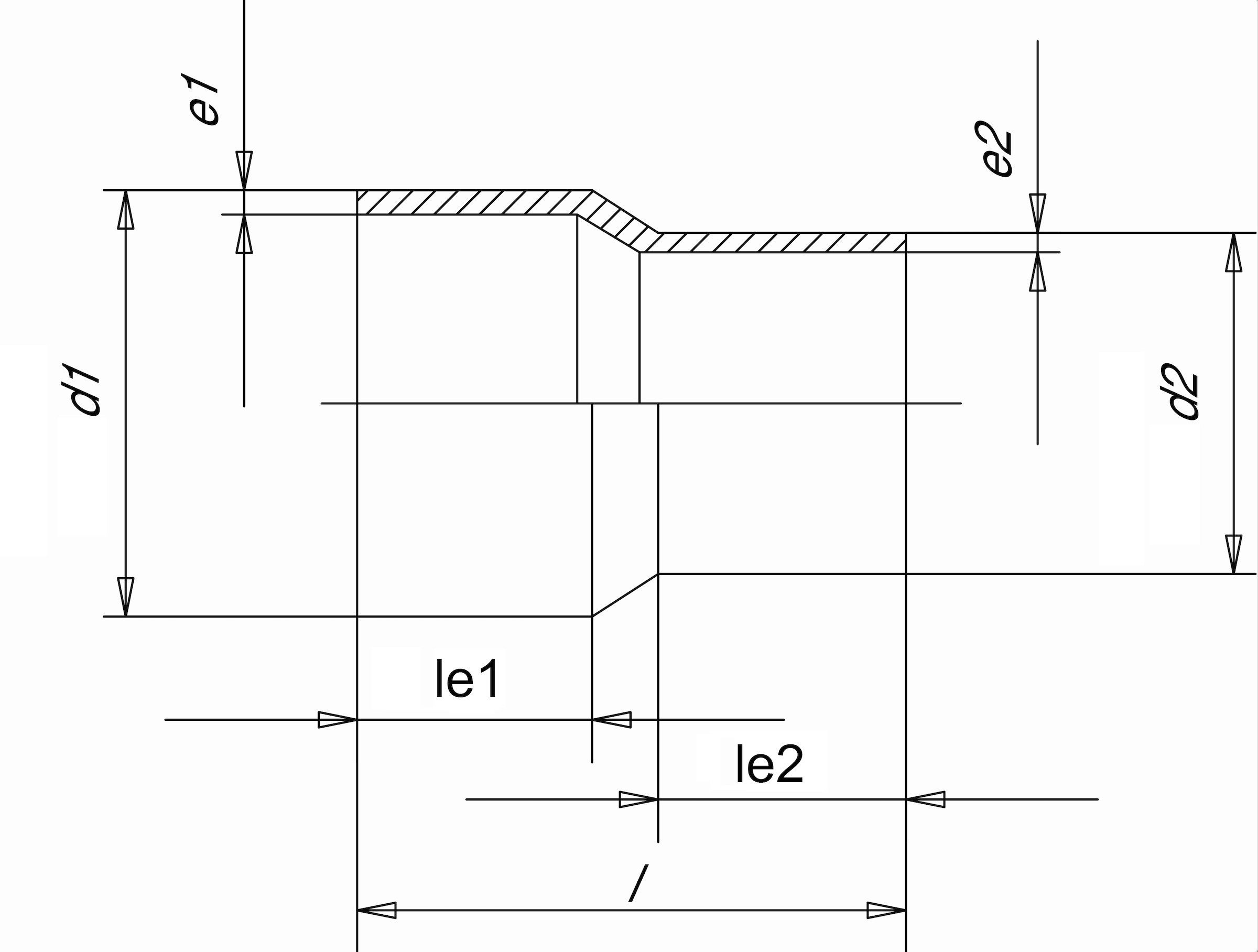

SDR  17

d1 (mm) 250

d2 (mm) 160

e (mm) 14,8

e2 (mm) 9,5

le1 (mm) 151

le2 (mm) 98

Length (mm) 308

Weight (kg) 2,85
