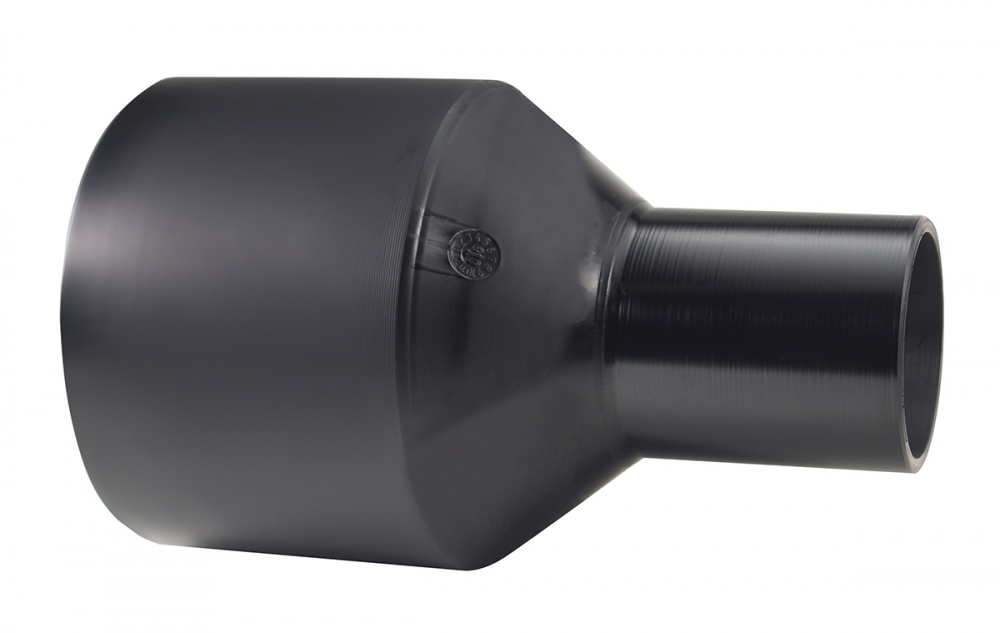

CONCENTRIC REDUCER MACHINED LONG SPIGOT PE100 SDR17 560X400

Product Code: 8149162

Specifications

Specifications

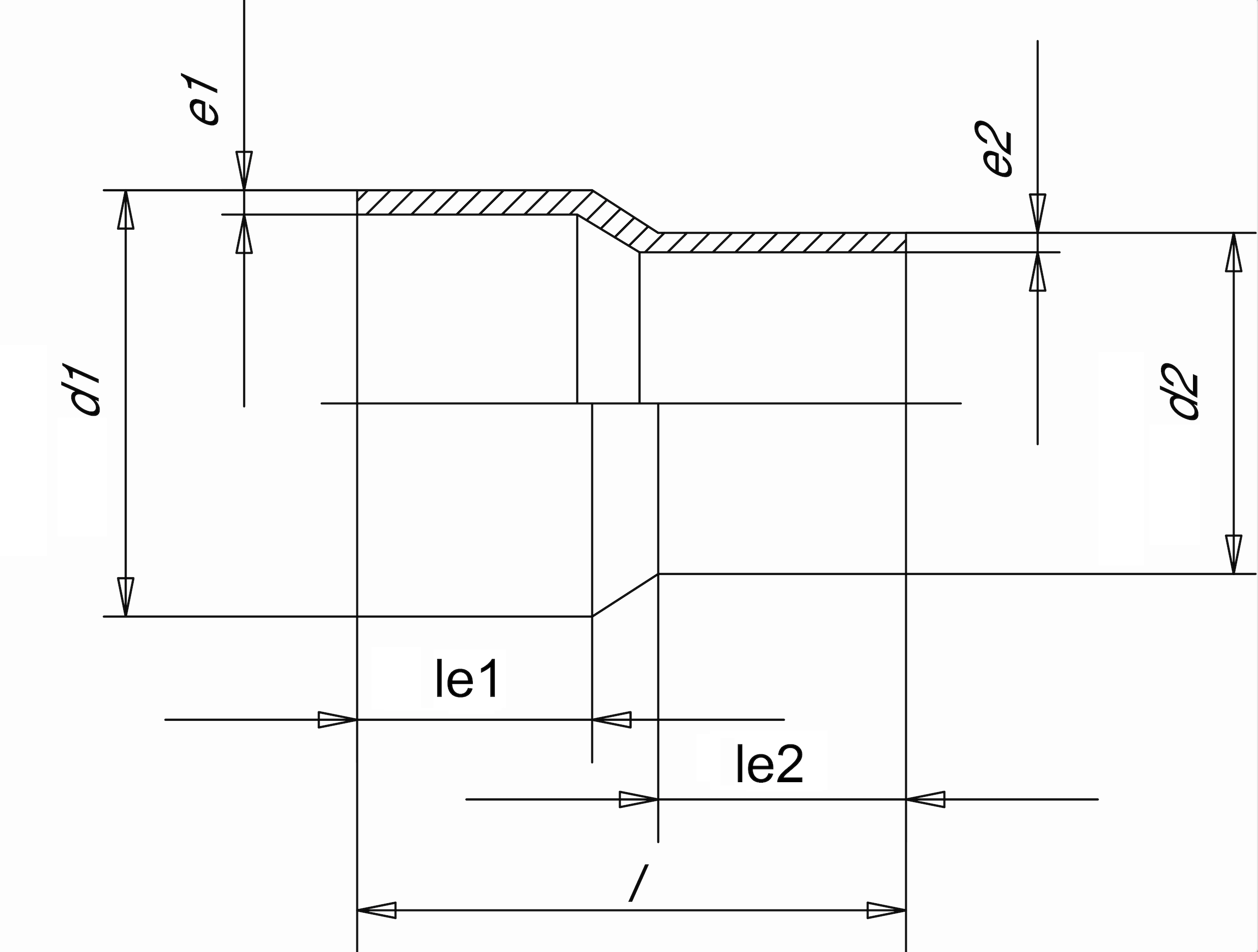

SDR  17

d1 (mm) 560

d2 (mm) 400

e (mm) 33,2

e2 (mm) 23,7

le1 (mm) 240

le2 (mm) 180

PN 10

Length (mm) 470

Weight (kg) 21,7
