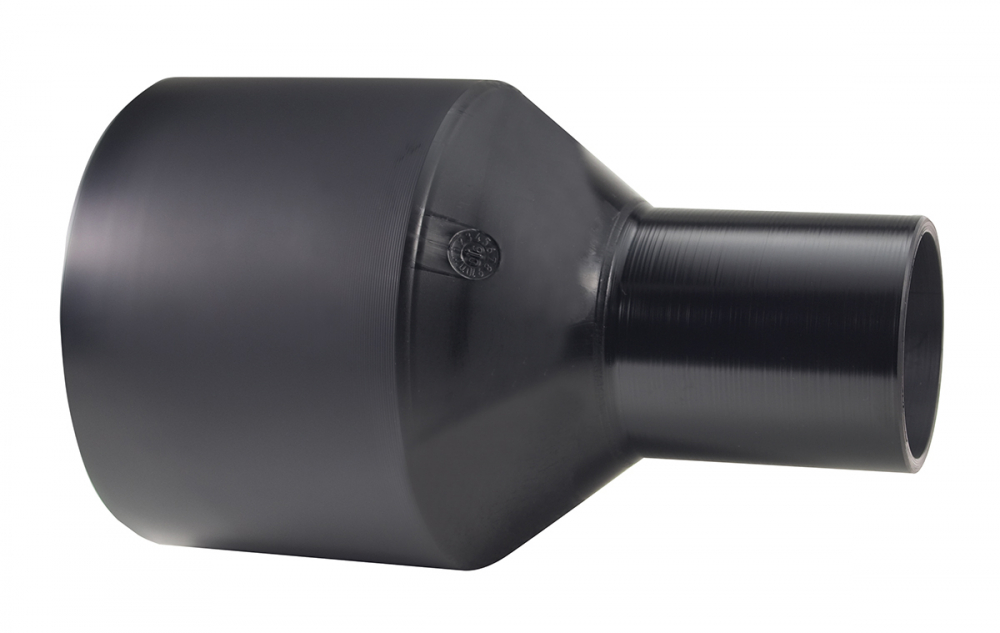

CONCENTRIC REDUCER MACHINED LONG SPIGOT PE100 SDR17 560X450

Product Code: 8149163

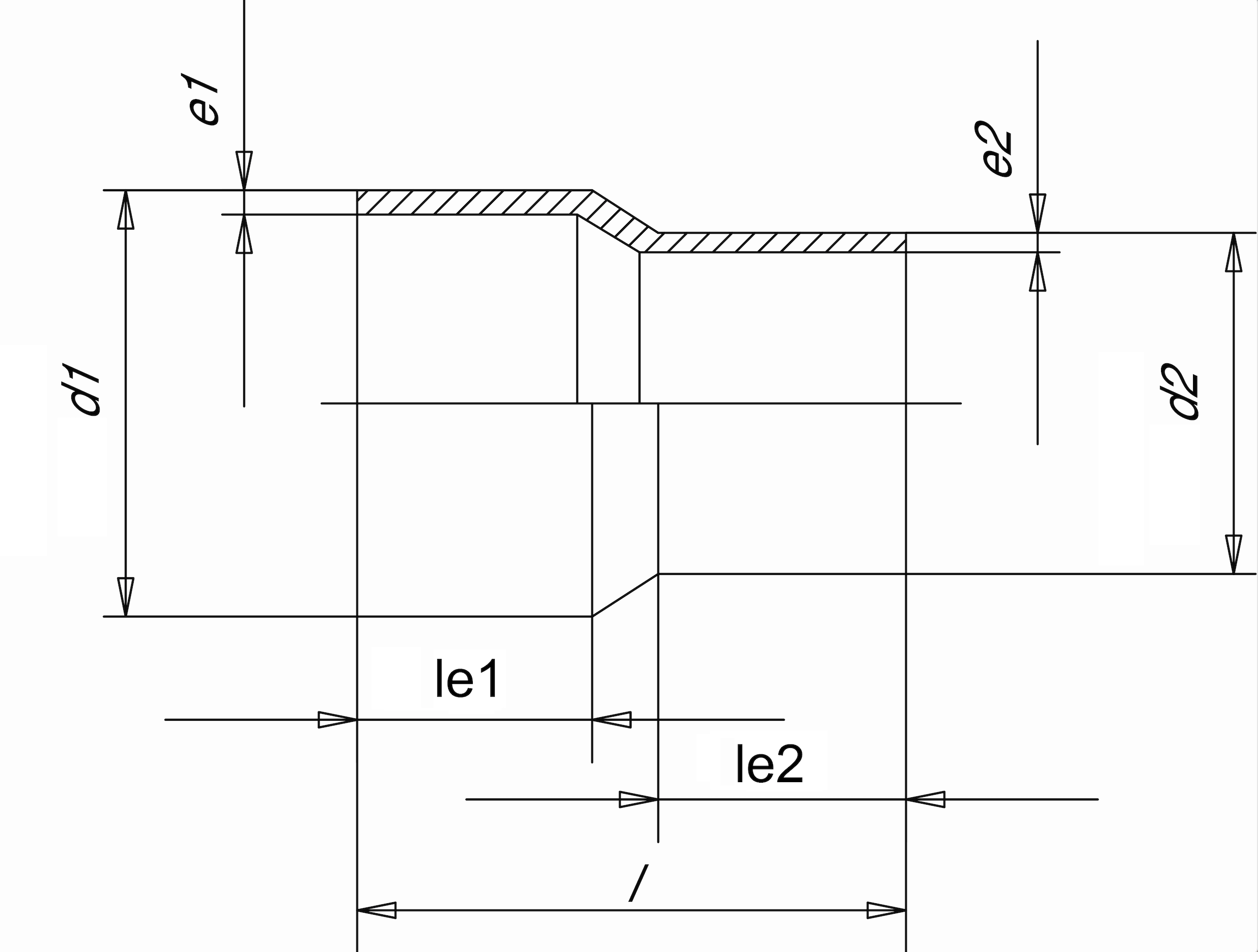

Specifications

Specifications


SDR  17

d1 (mm) 560

d2 (mm) 450

e (mm) 33,2

e2 (mm) 26,7

le1 (mm) 240

le2 (mm) 195

PN 10

Length (mm) 470

Weight (kg) 22,3
