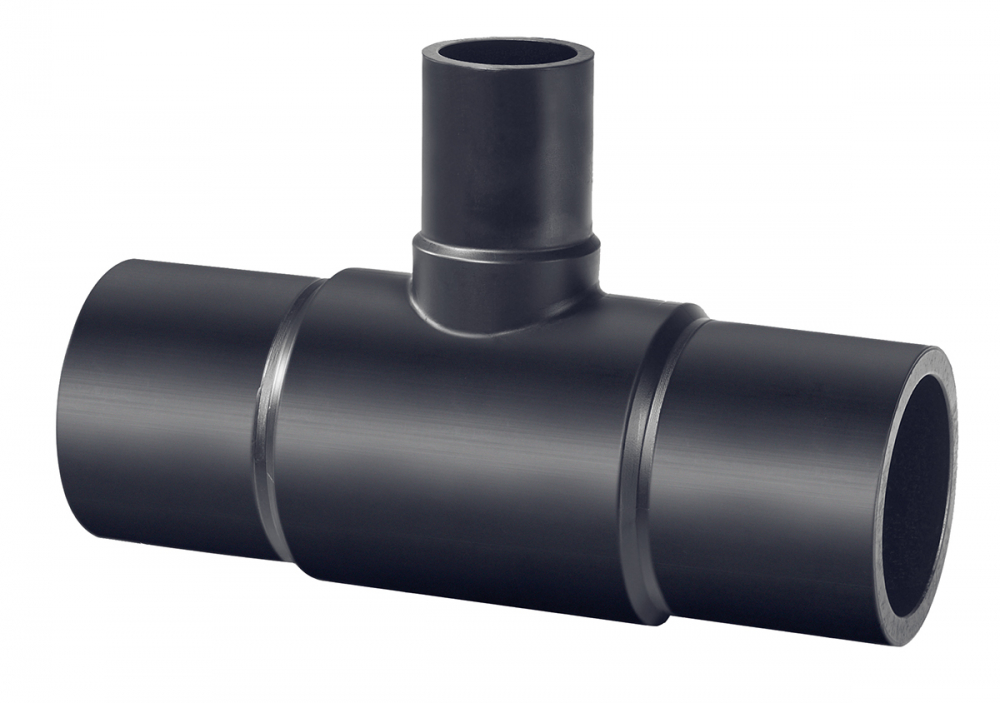

REDUCING TEE INJECTED LONG SPIGOT PE100 SDR11 160X110

Product Code: 8135026

Specifications

Specifications

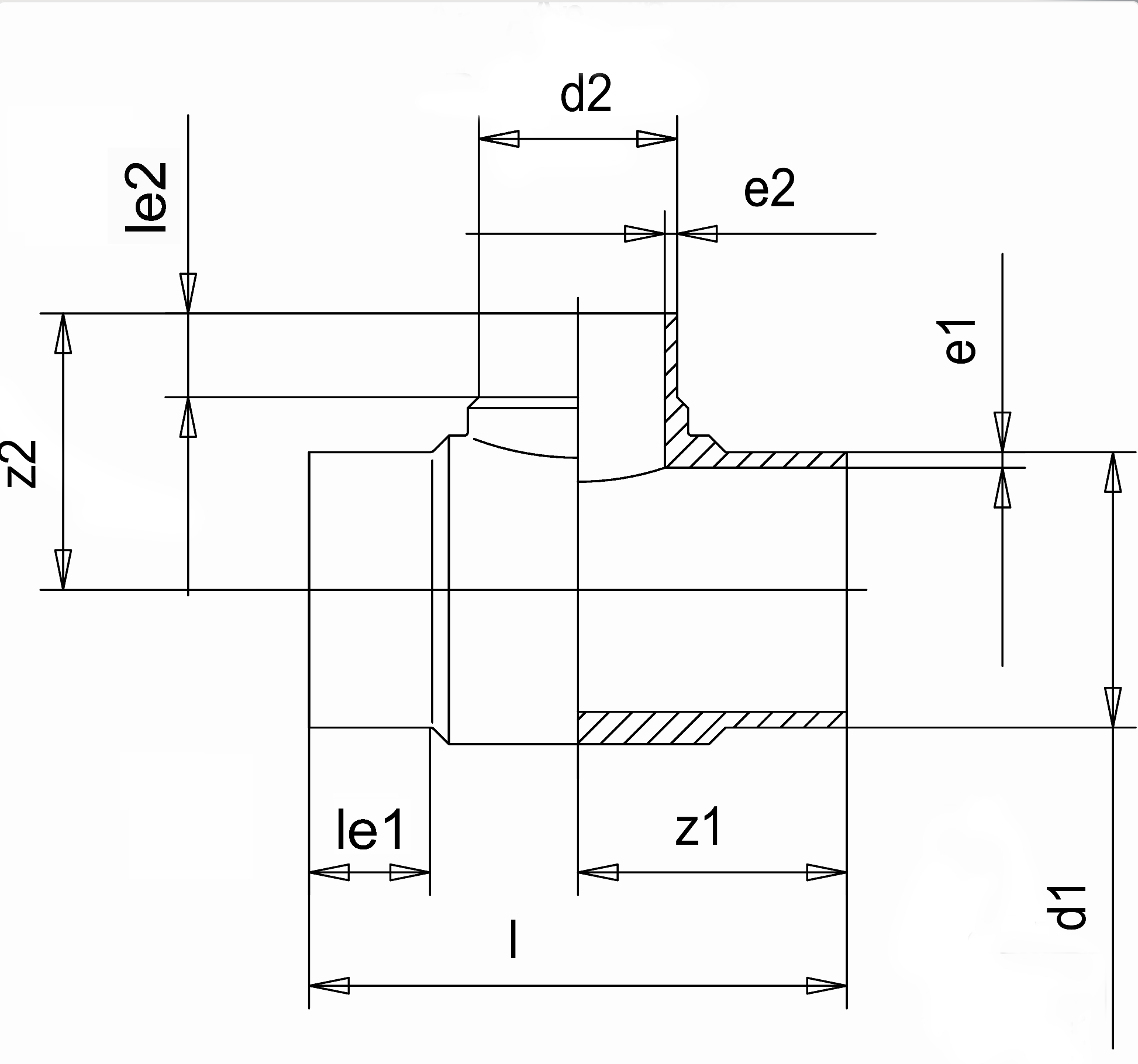

SDR  11

d1 (mm) 160

d2 (mm) 110

e (mm) 14,6

e2 (mm) 10

le1 (mm) 104

le2 (mm) 89

z1 (mm) 207

z2 (mm) 200

Length (mm) 414

Weight (kg) 3,865
