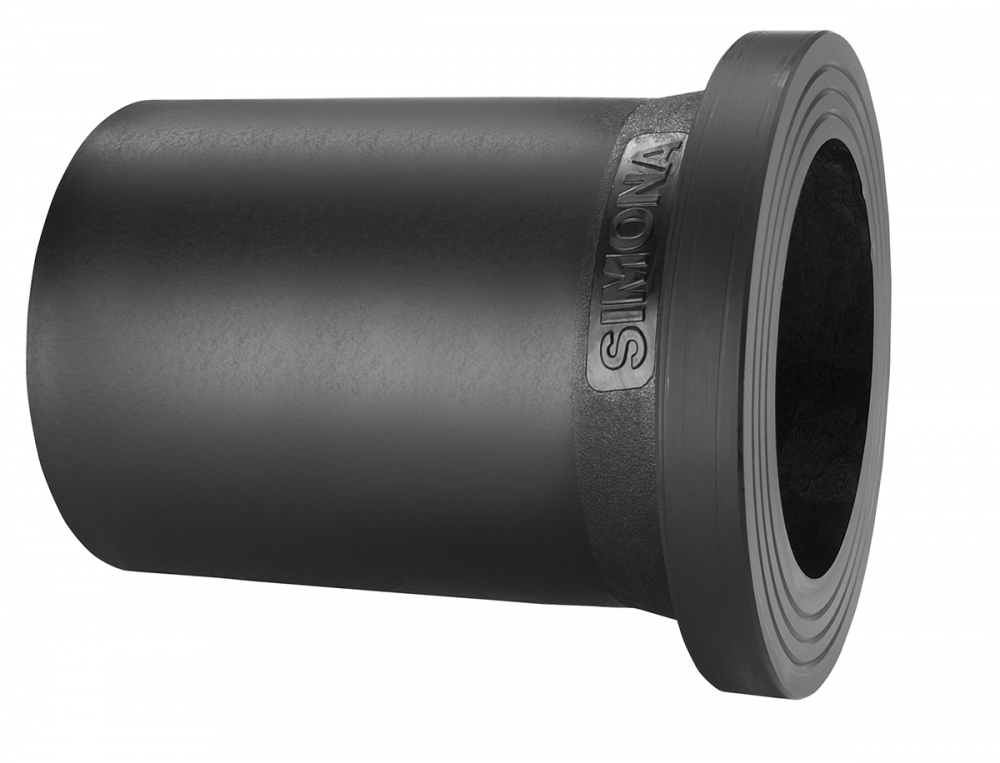

STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR11 110

STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR11 110

STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR11 110

Product Code: 8194007

Qty:

Specifications

Specifications

Specifications

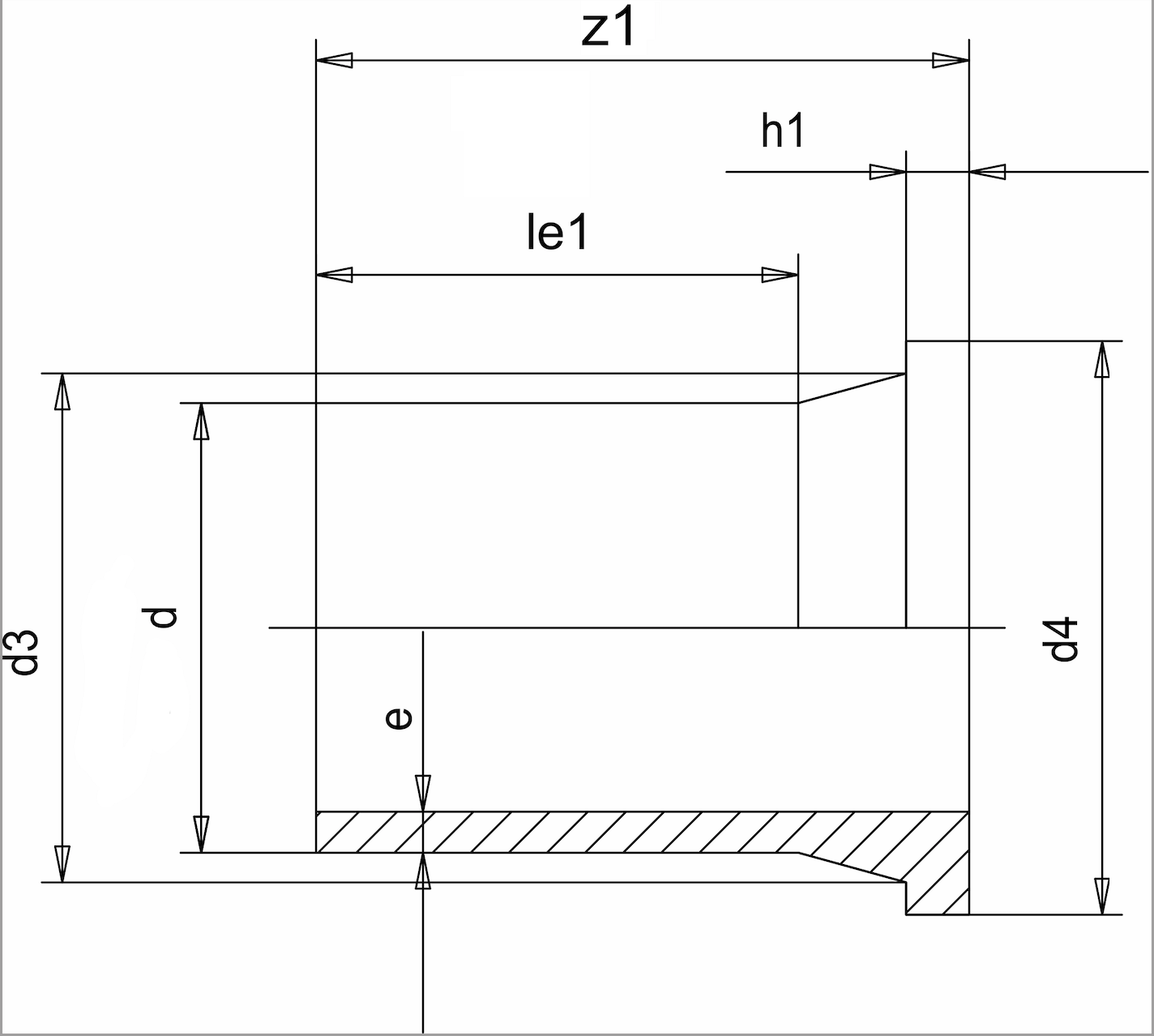

SDR 11

d (mm) 110

e (mm) 1010125

d4 (mm) 158

le1 (mm) 113

z1 (mm) 160

h1 (mm) 18

PN 16

Weight (kg) 0,715
