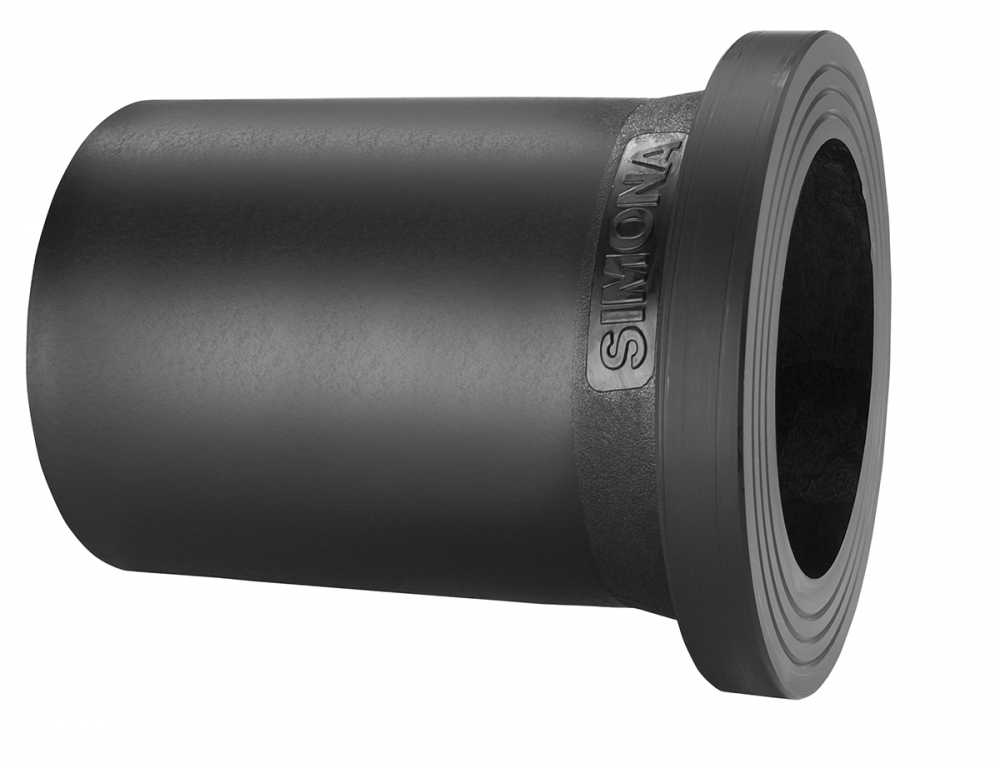

STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR11 200

STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR11 200

STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR11 200

Product Code: 8194012

Qty:

Specifications

Specifications

Specifications

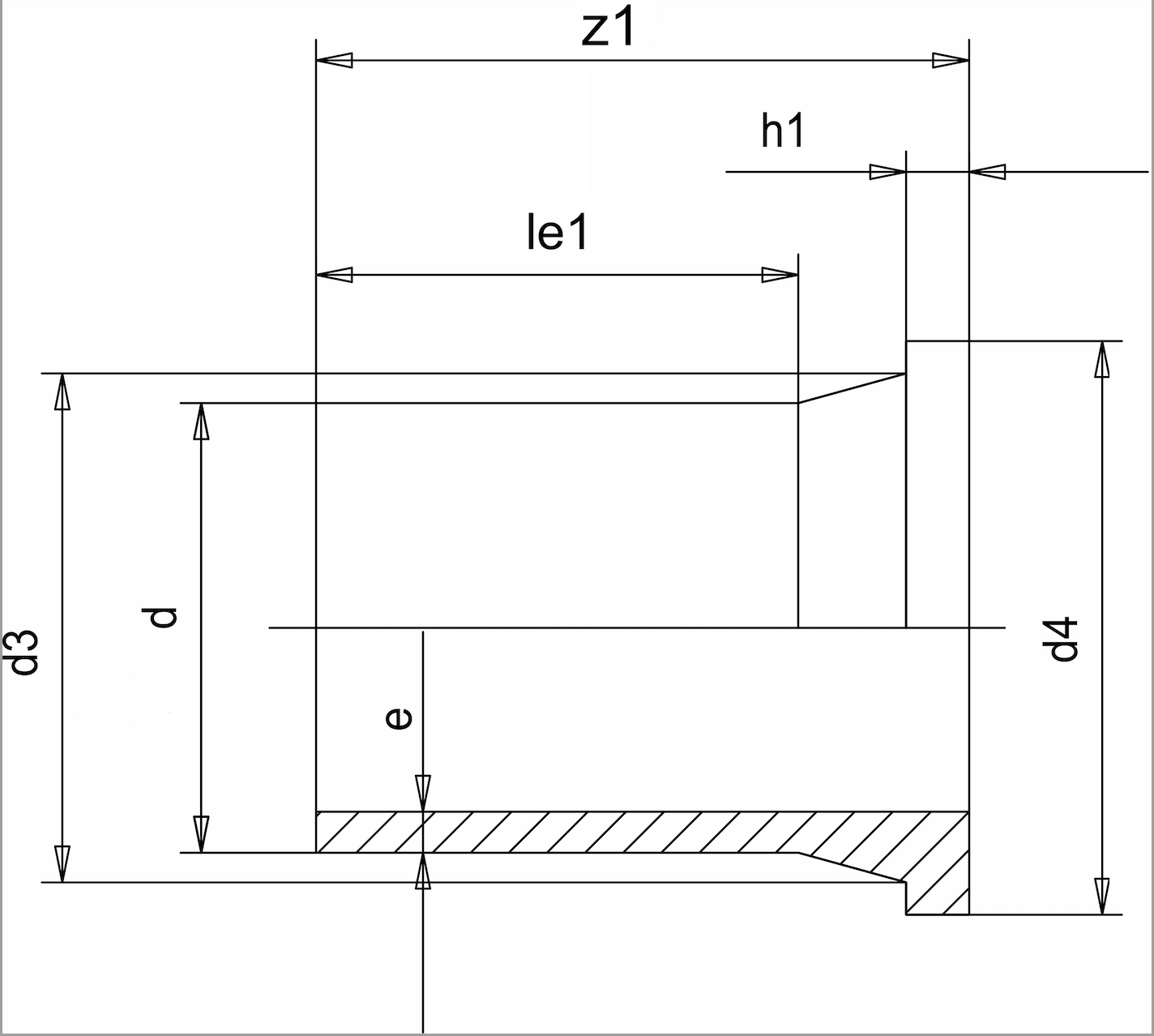

SDR 11

d (mm) 200

e (mm) 18,218,2232

d4 (mm) 268

le1 (mm) 128

z1 (mm) 200

h1 (mm) 32

PN 16

Weight (kg) 3,13
