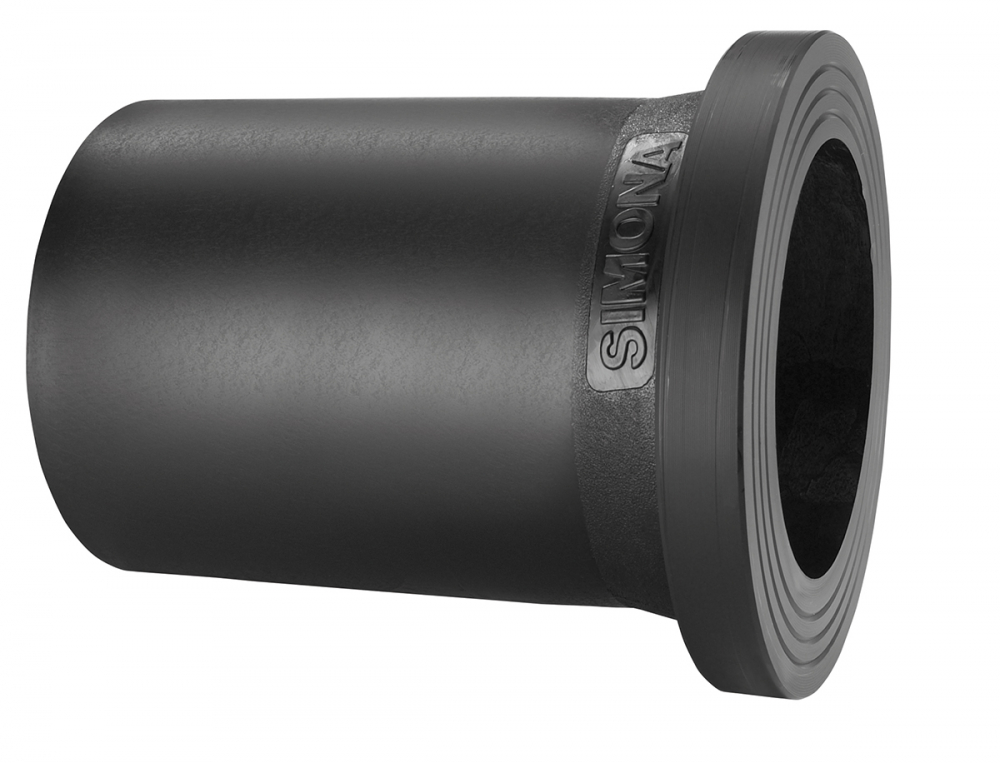

STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR11 355

STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR11 355

STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR11 355

Product Code: 8194017

Qty:

Specifications

Specifications

Specifications

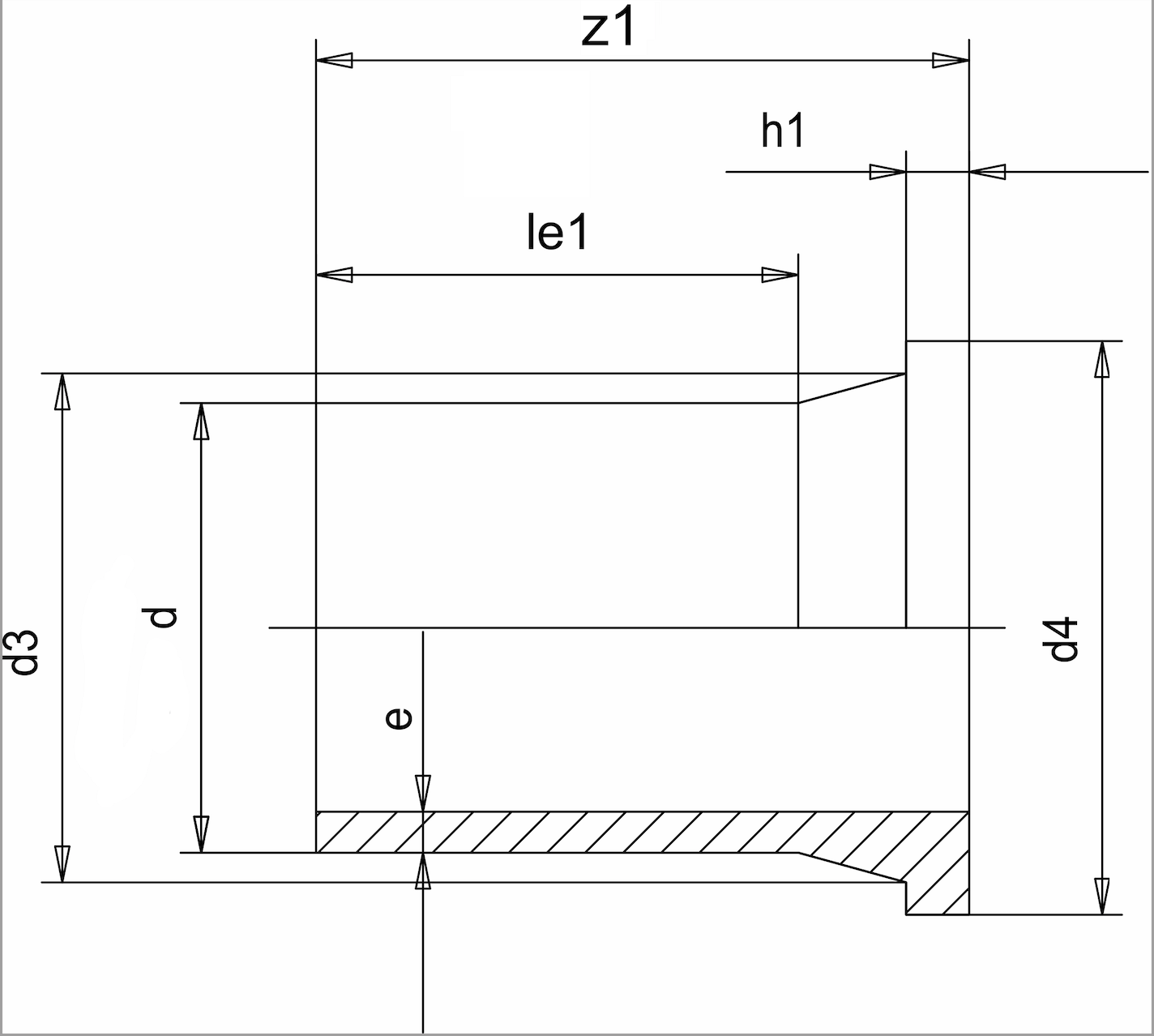

SDR 11

d (mm) 355

e (mm) 32,232,2373

d4 (mm) 430

le1 (mm) 176

z1 (mm) 260

h1 (mm) 40

PN 16

Weight (kg) 10,71
