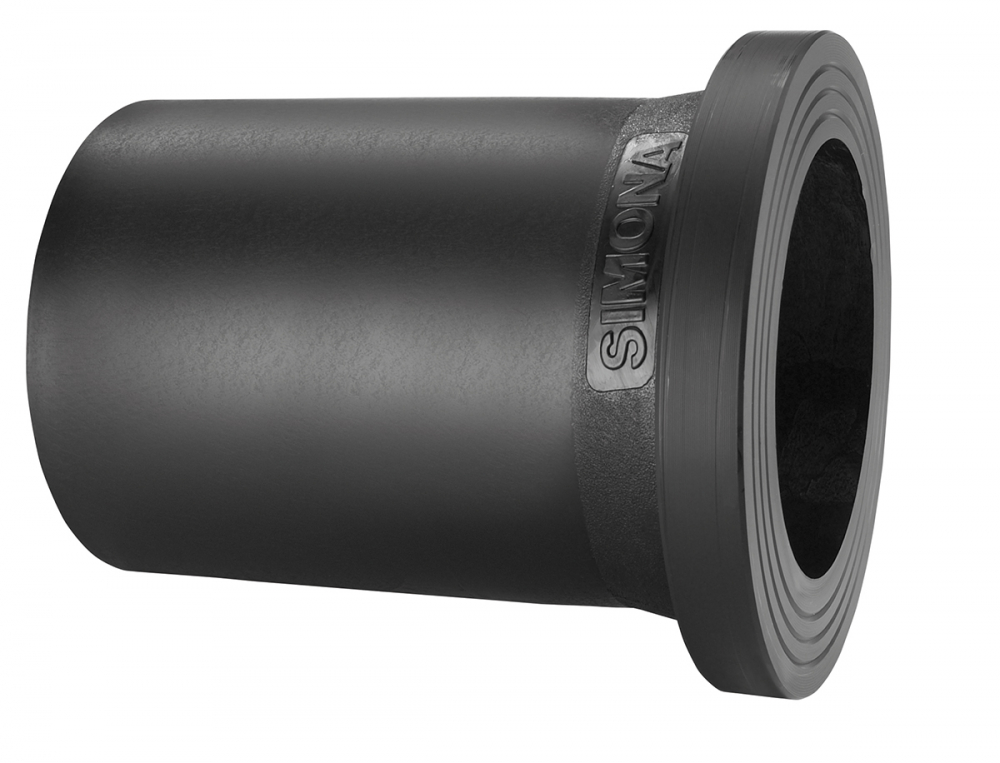

STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR11 400

STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR11 400

STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR11 400

Product Code: 8194018

Qty:

Specifications

Specifications

Specifications

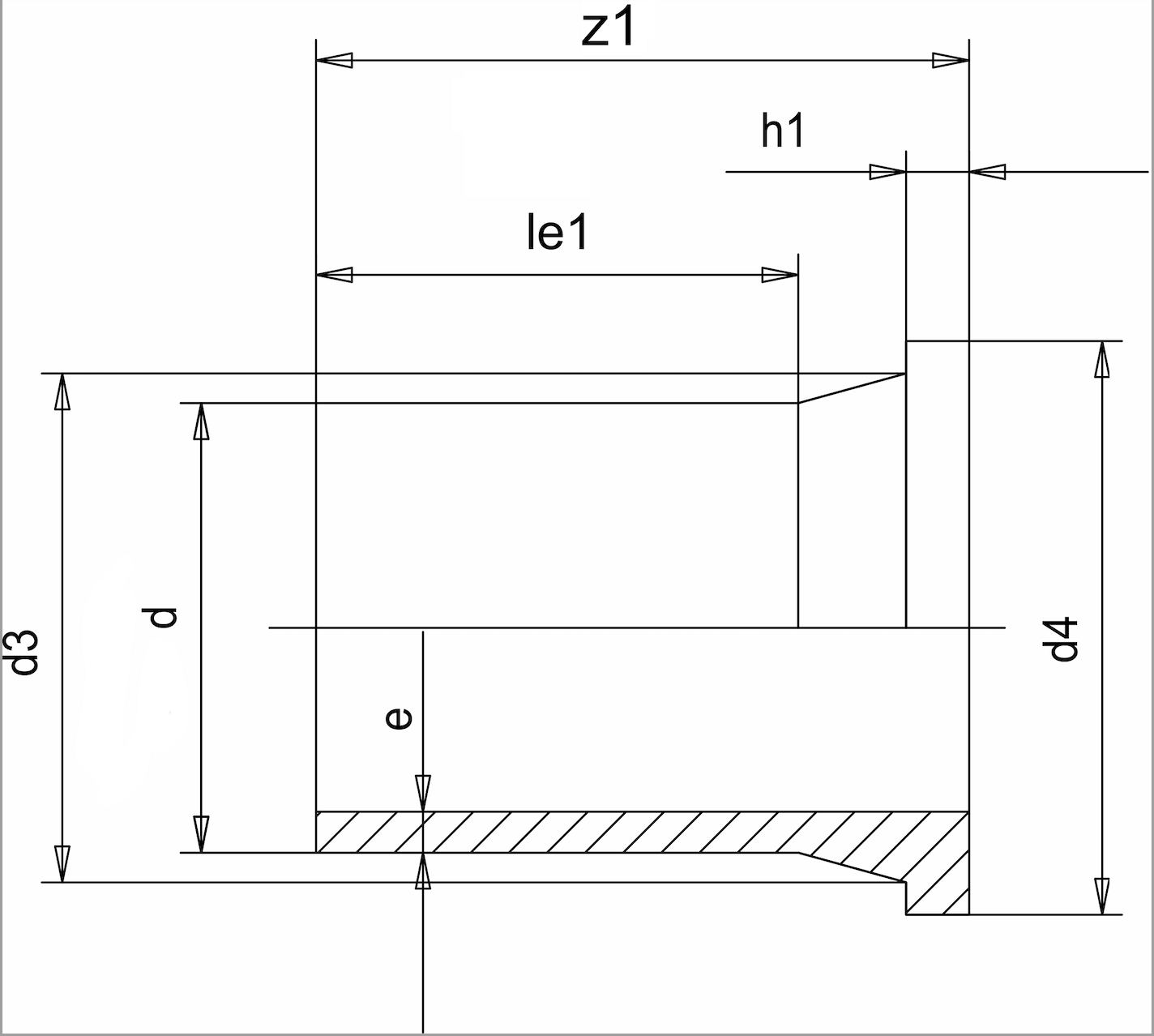

SDR 11

d (mm) 400

e (mm) 36,336,3427

d4 (mm) 482

le1 (mm) 195

z1 (mm) 290

h1 (mm) 46

PN 16

Weight (kg) 15,245
