STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR17 355

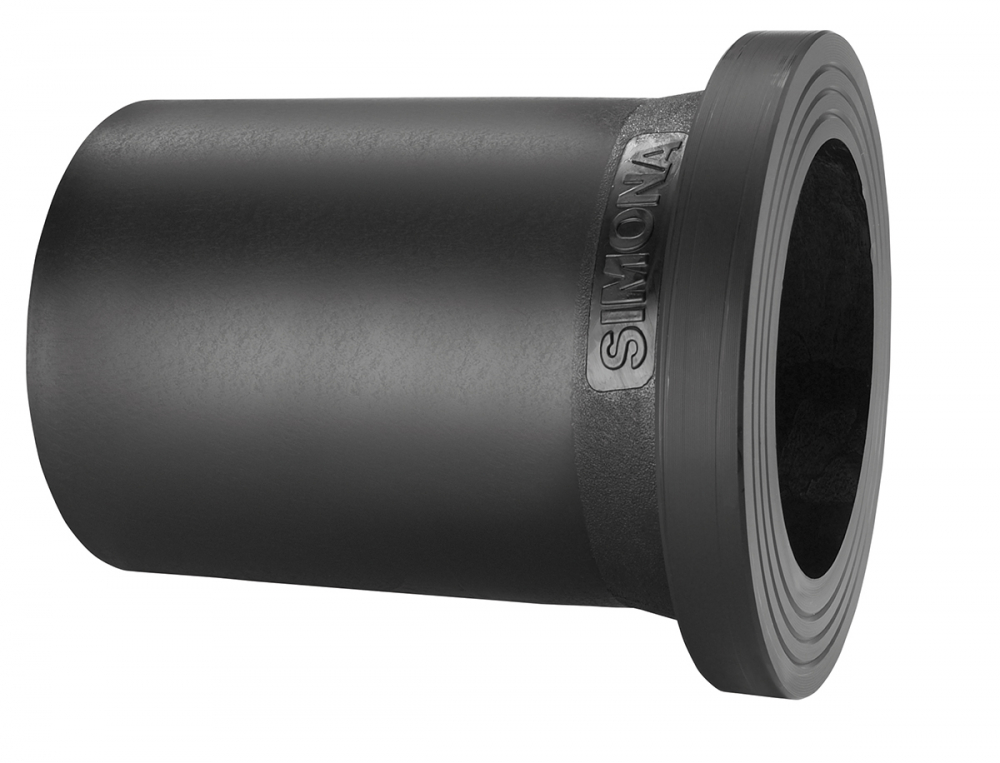

STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR17 355

STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR17 355

Product Code: 8194033

Qty:

Specifications

Specifications

Specifications

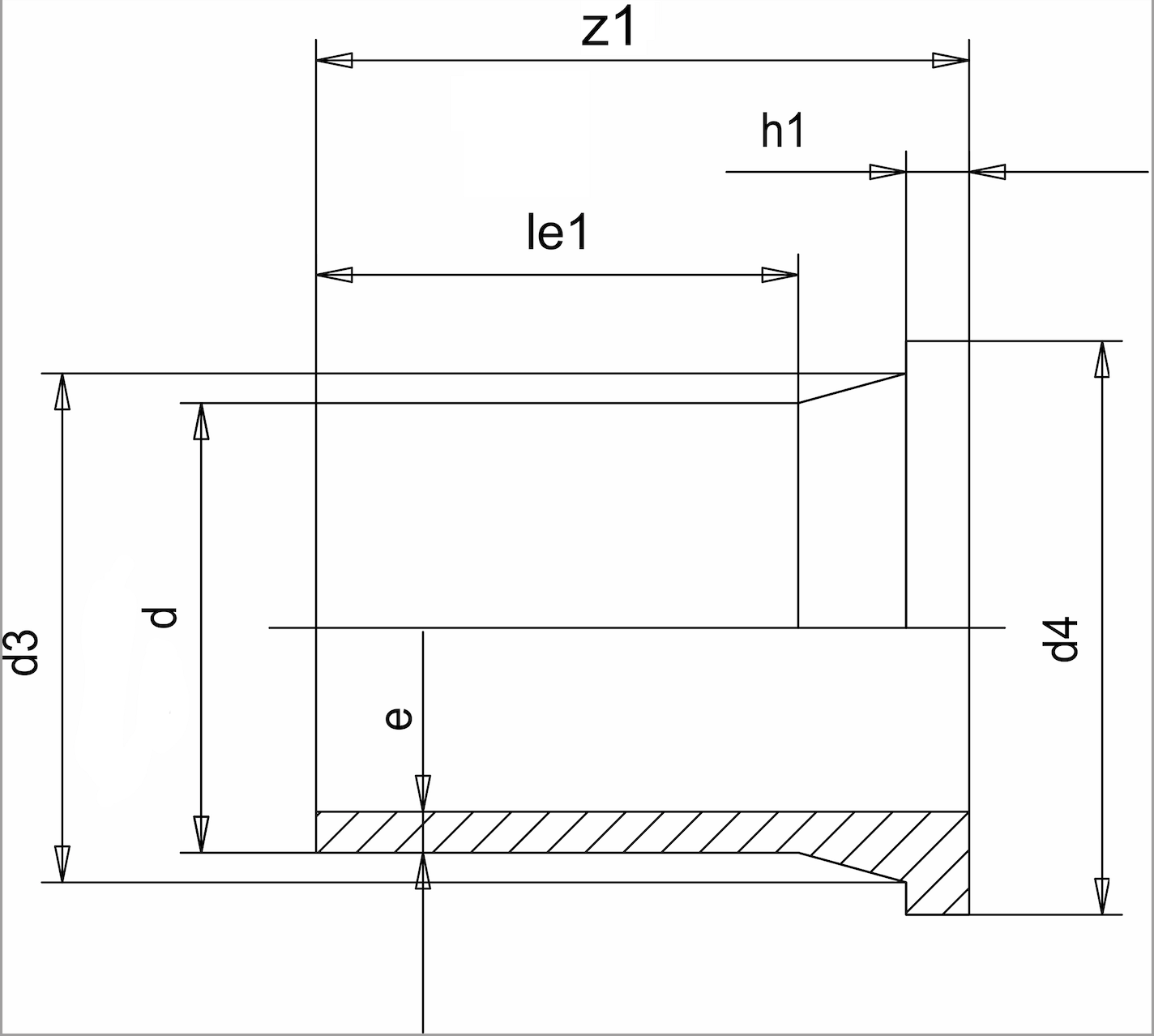

SDR 17

d (mm) 355

e (mm) 21,121,1373

d4 (mm) 430

le1 (mm) 179

z1 (mm) 261

h1 (mm) 30

PN 10

Weight (kg) 7,42
