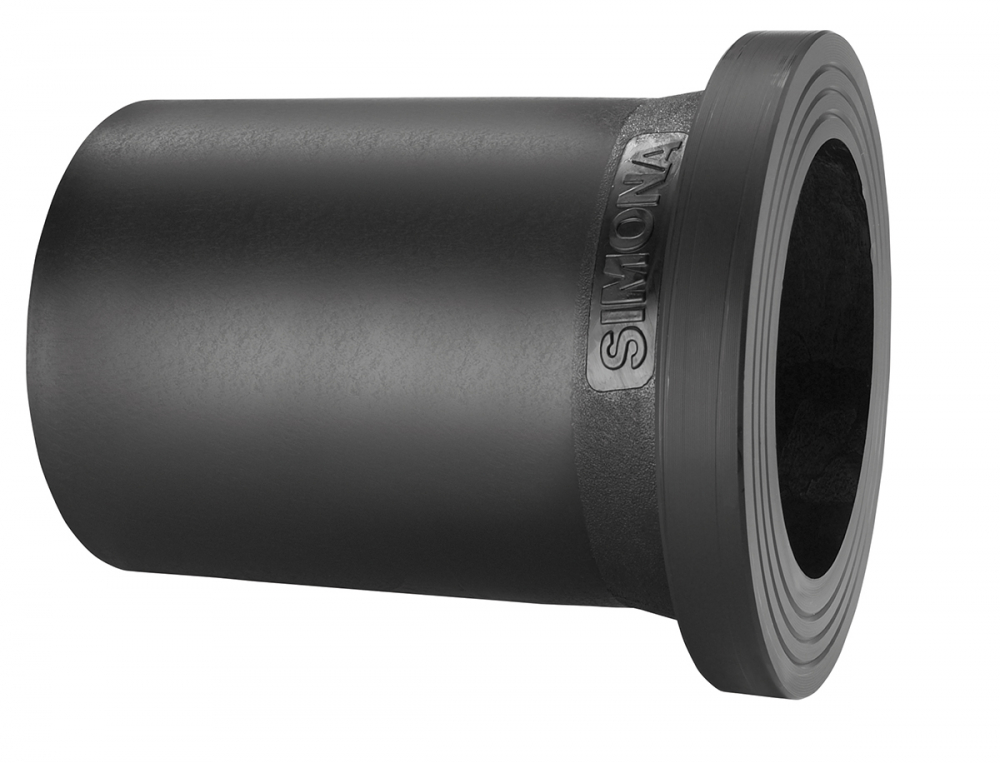

STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR17 400

STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR17 400

STUB FLANGE FOR ISO/DIN/AS INJECTED LONG SPIGOT PE 100 SDR17 400

Product Code: 8194034

Qty:

Specifications

Specifications

Specifications

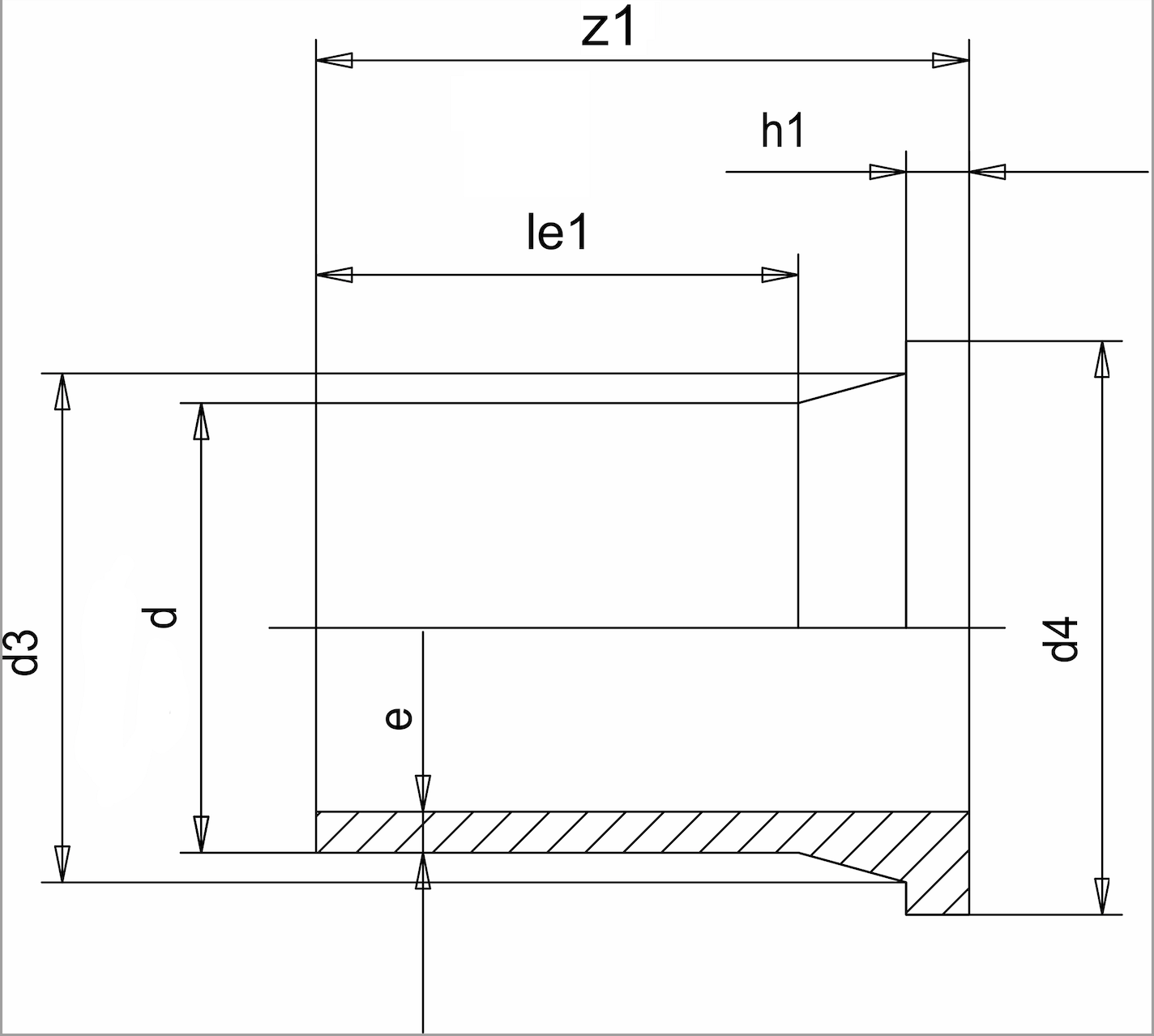

SDR 17

d (mm) 400

e (mm) 23,723,7427

d4 (mm) 482

le1 (mm) 195

z1 (mm) 290

h1 (mm) 33

PN 10

Weight (kg) 10,65
