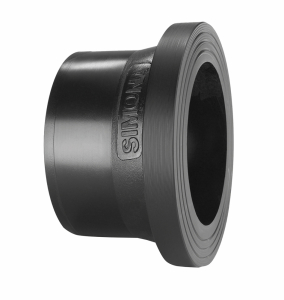

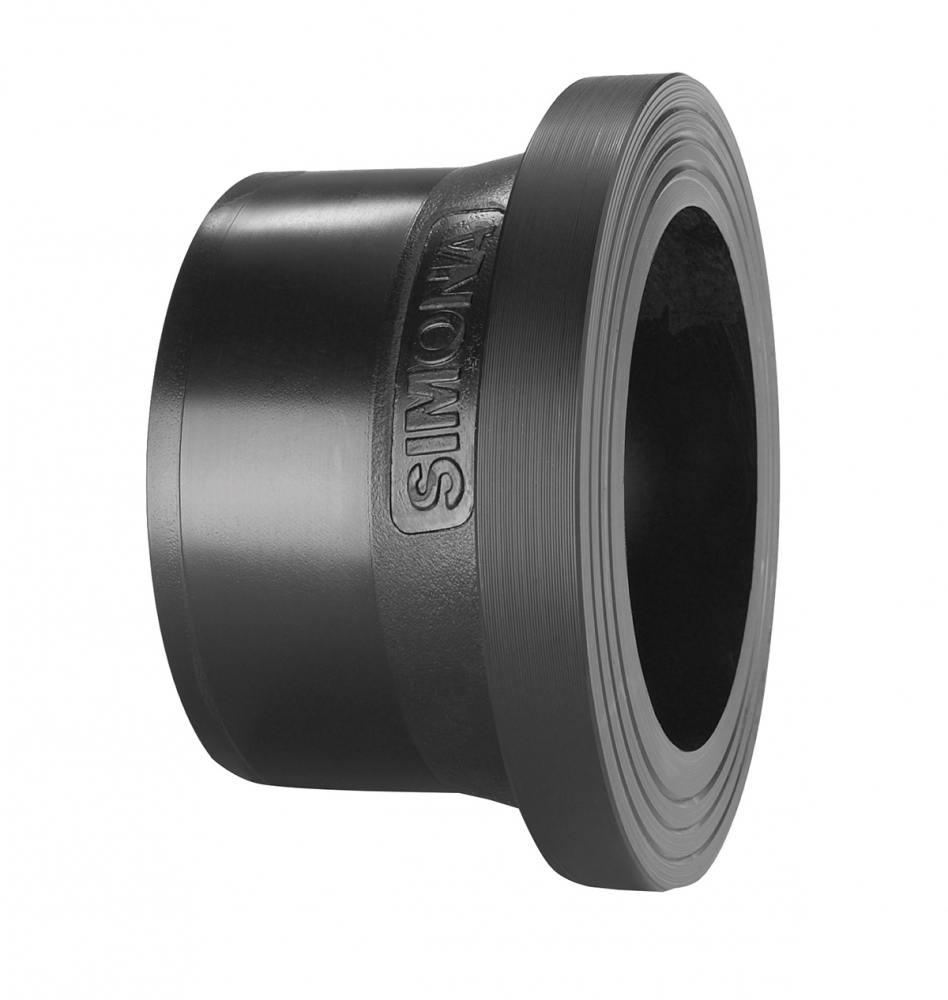

STUB FLANGE FOR ISO/DIN/AS MACHINED SHORT SPIGOT PE 100 SDR11 800

STUB FLANGE FOR ISO/DIN/AS MACHINED SHORT SPIGOT PE 100 SDR11 800

STUB FLANGE FOR ISO/DIN/AS MACHINED SHORT SPIGOT PE 100 SDR11 800

Product Code: 8100538

Qty:

Specifications

Specifications

Specifications

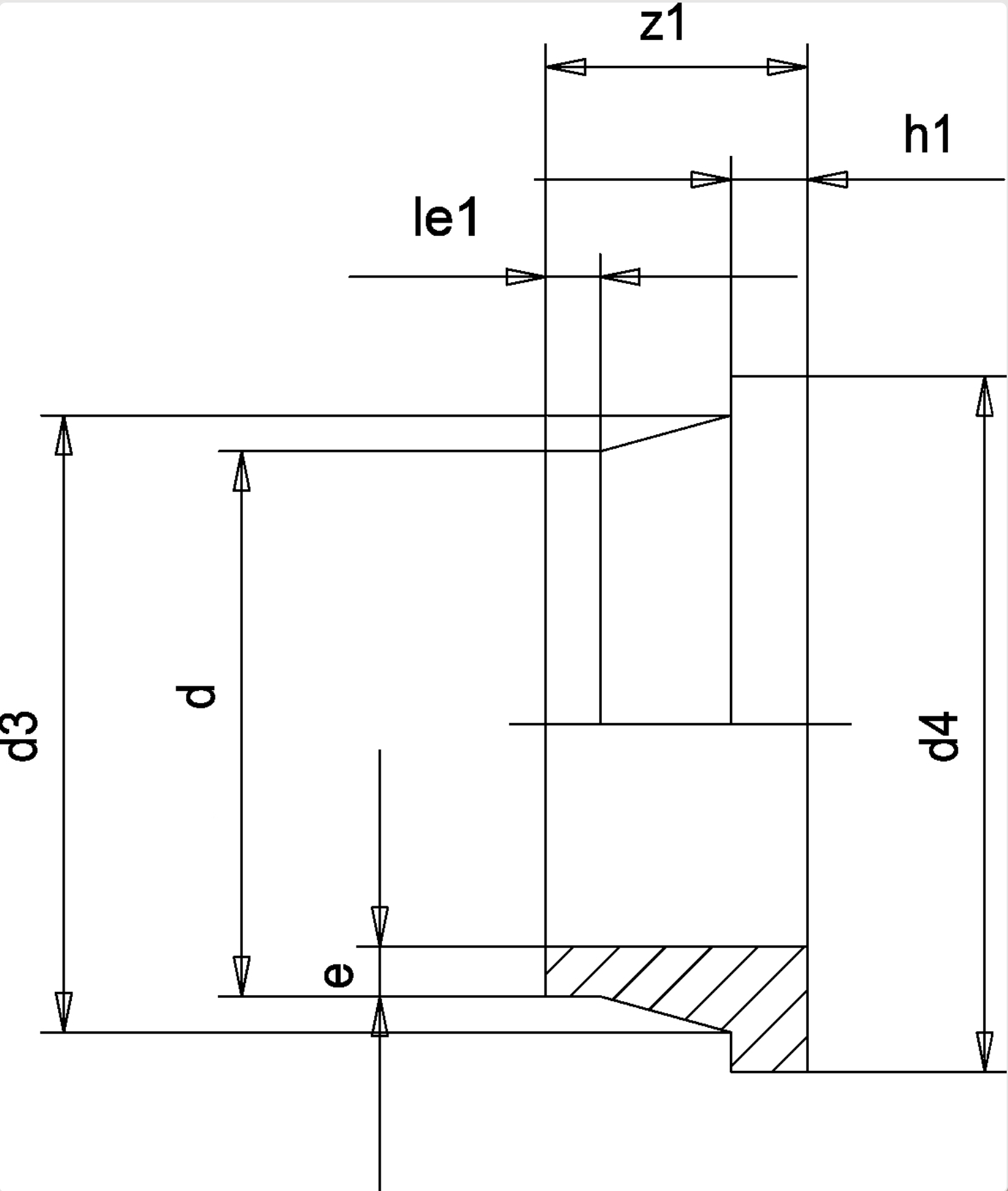

SDR 11

d (mm) 800

e (mm) 47.4

d3 (mm) 840

d4 (mm) 905

le1 (mm) 60

z1 (mm) 150

h1 (mm) 54
