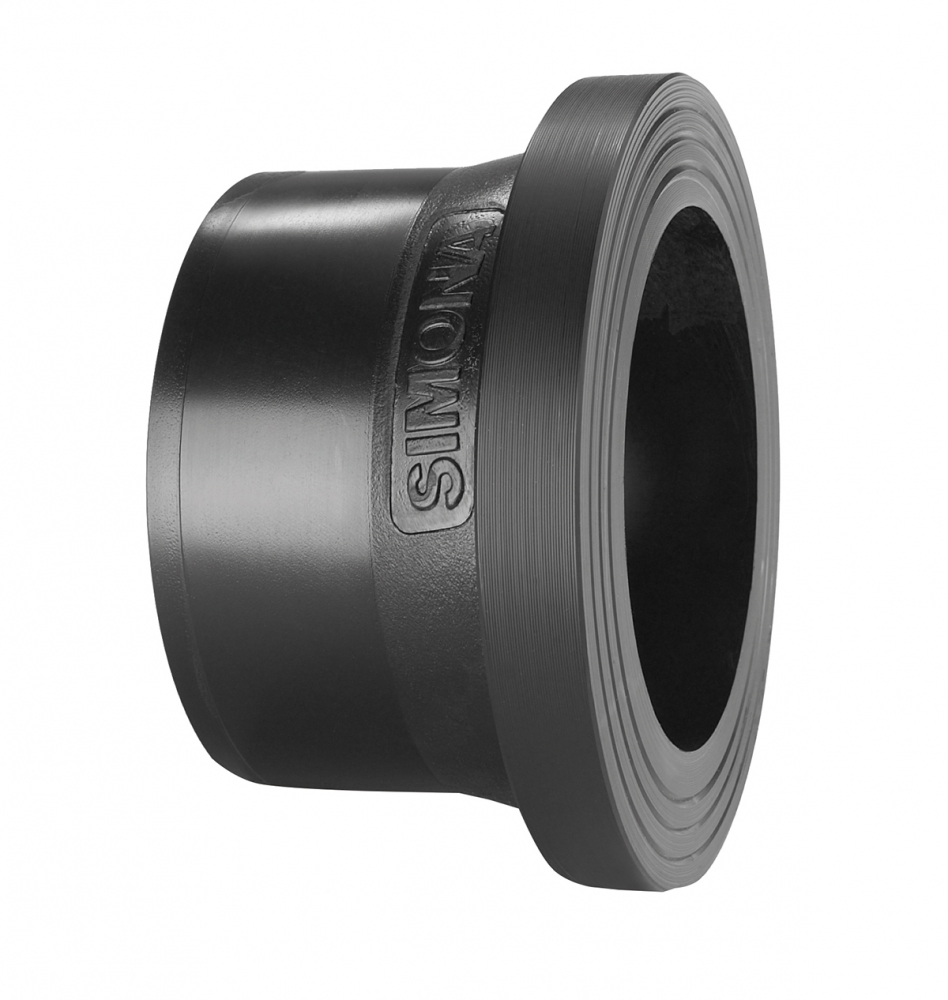

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR11 125

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR11 125

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR11 125

Product Code: 8106018

Qty:

Specifications

Specifications

Specifications

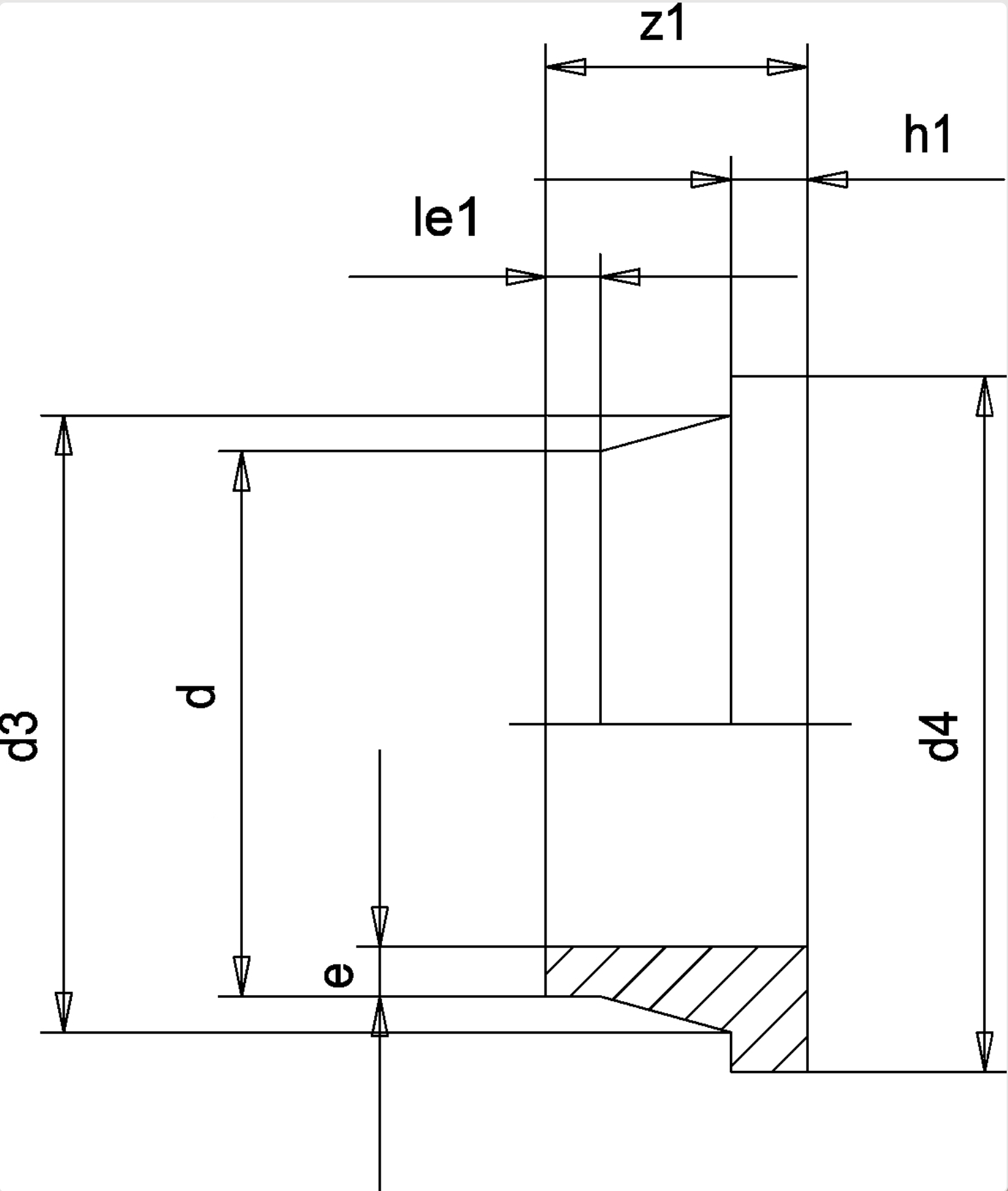

SDR 11

d (mm) 125

e (mm) 11,411,4132

d4 (mm) 158

le1 (mm) 40

z1 (mm) 90

h1 (mm) 25

PN 16

Weight (kg) 0,59
