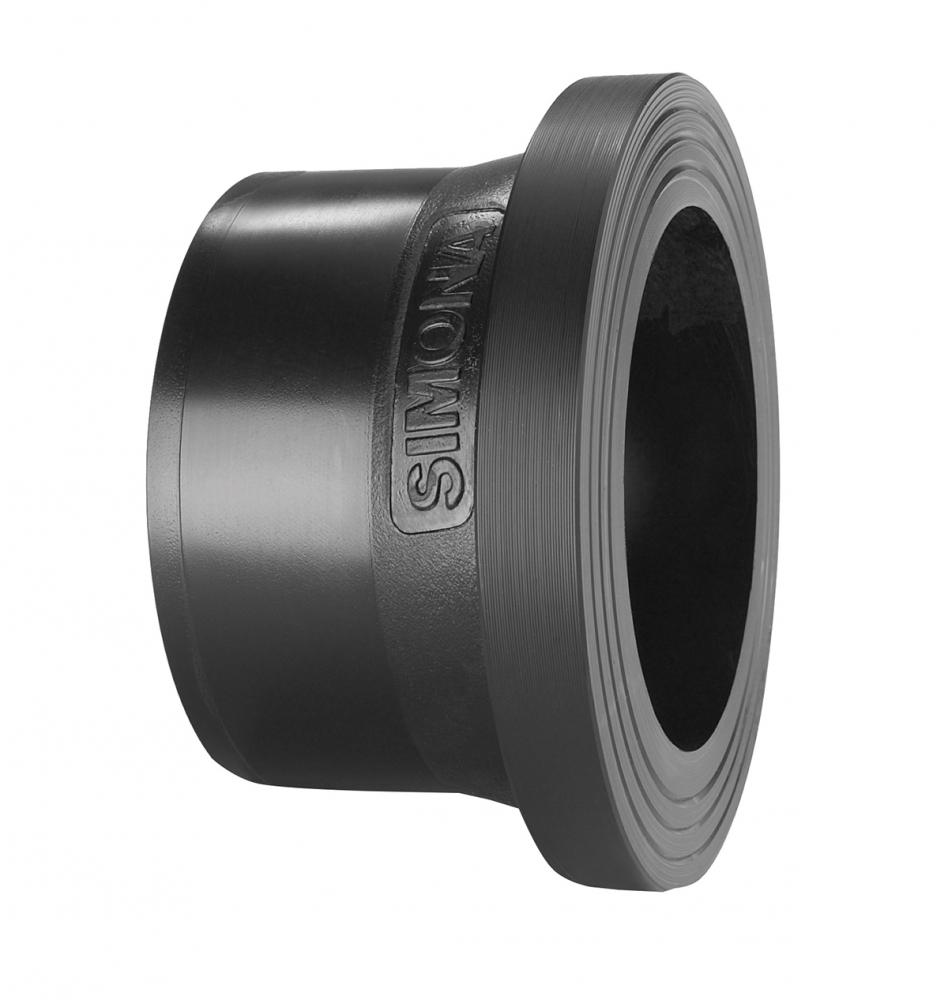

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 110

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 110

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 110

Product Code: 8106035

Qty:

Specifications

Specifications

Specifications

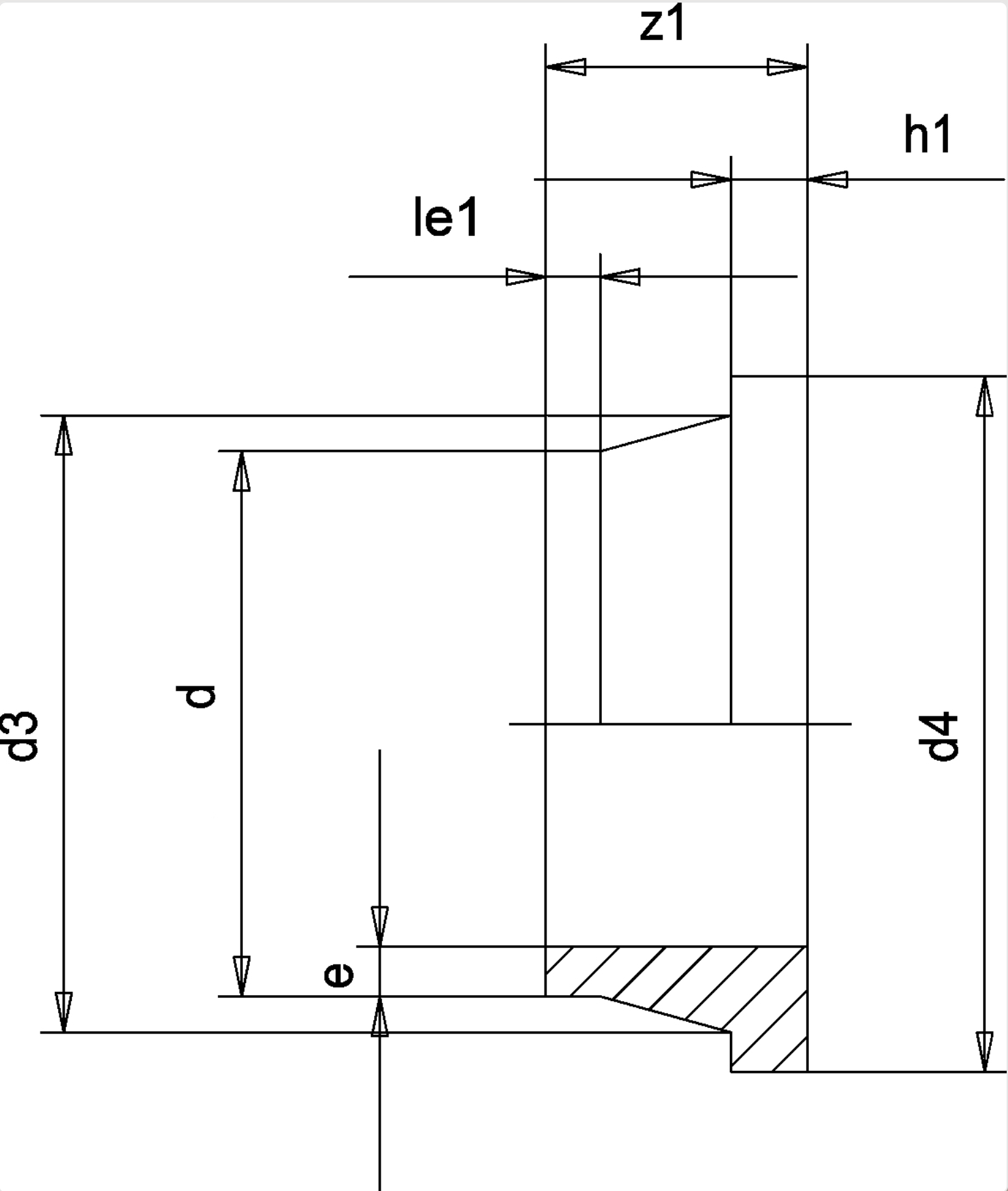

SDR 17

d (mm) 110

e (mm) 6,66,6125

d4 (mm) 158

le1 (mm) 37

z1 (mm) 80

h1 (mm) 18

PN 10

Weight (kg) 0,38
