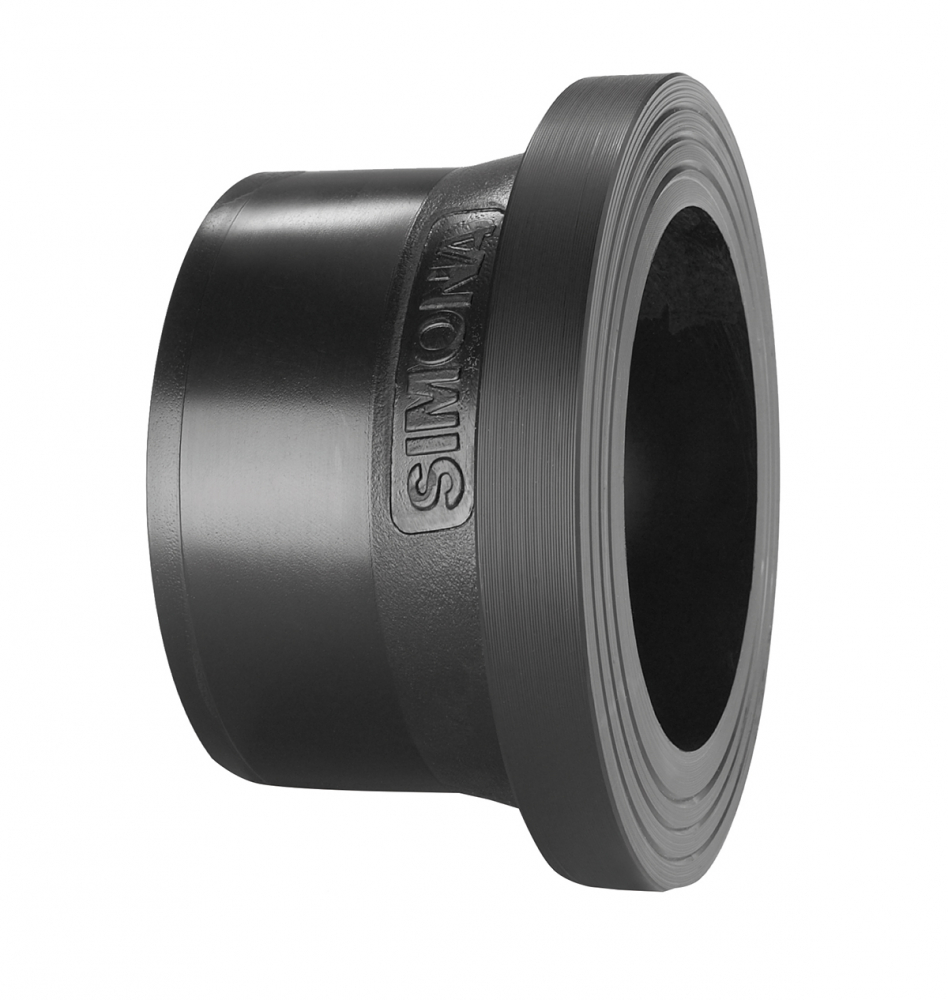

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 125

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 125

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 125

Product Code: 8106036

Qty:

Specifications

Specifications

Specifications

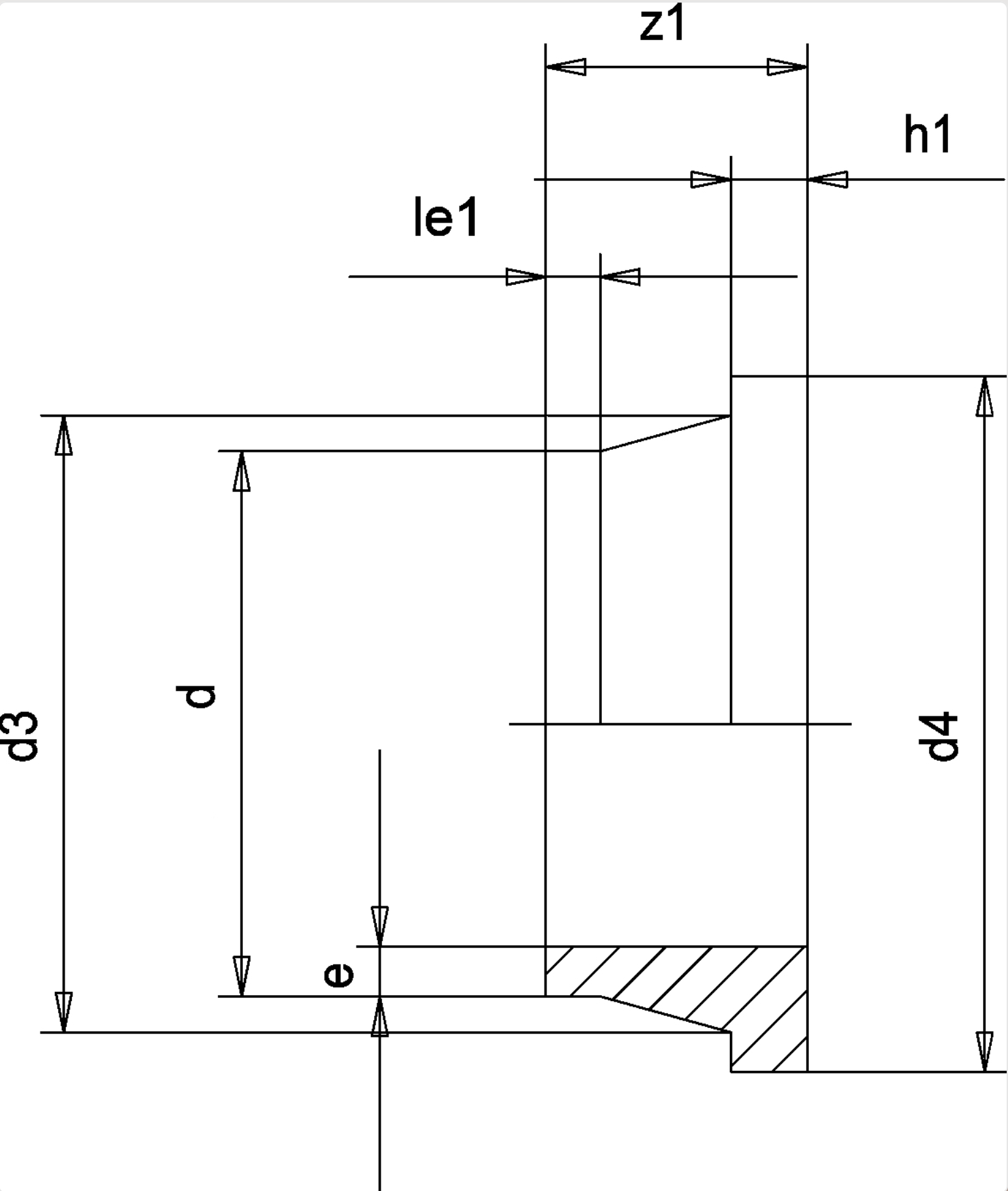

SDR 17

d (mm) 125

e (mm) 7,47,4132

d4 (mm) 158

le1 (mm) 45

z1 (mm) 90

h1 (mm) 18

PN 10

Weight (kg) 0,41
