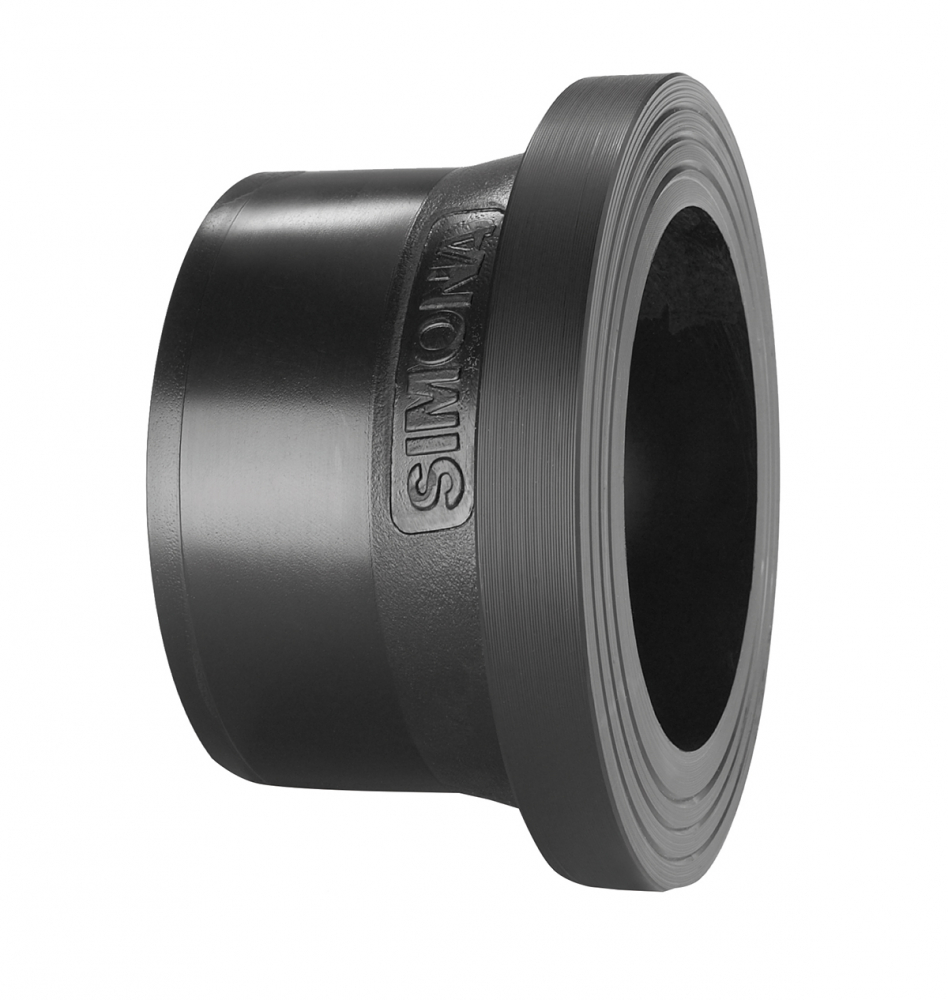

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 160

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 160

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 160

Product Code: 8106038

Qty:

Specifications

Specifications

Specifications

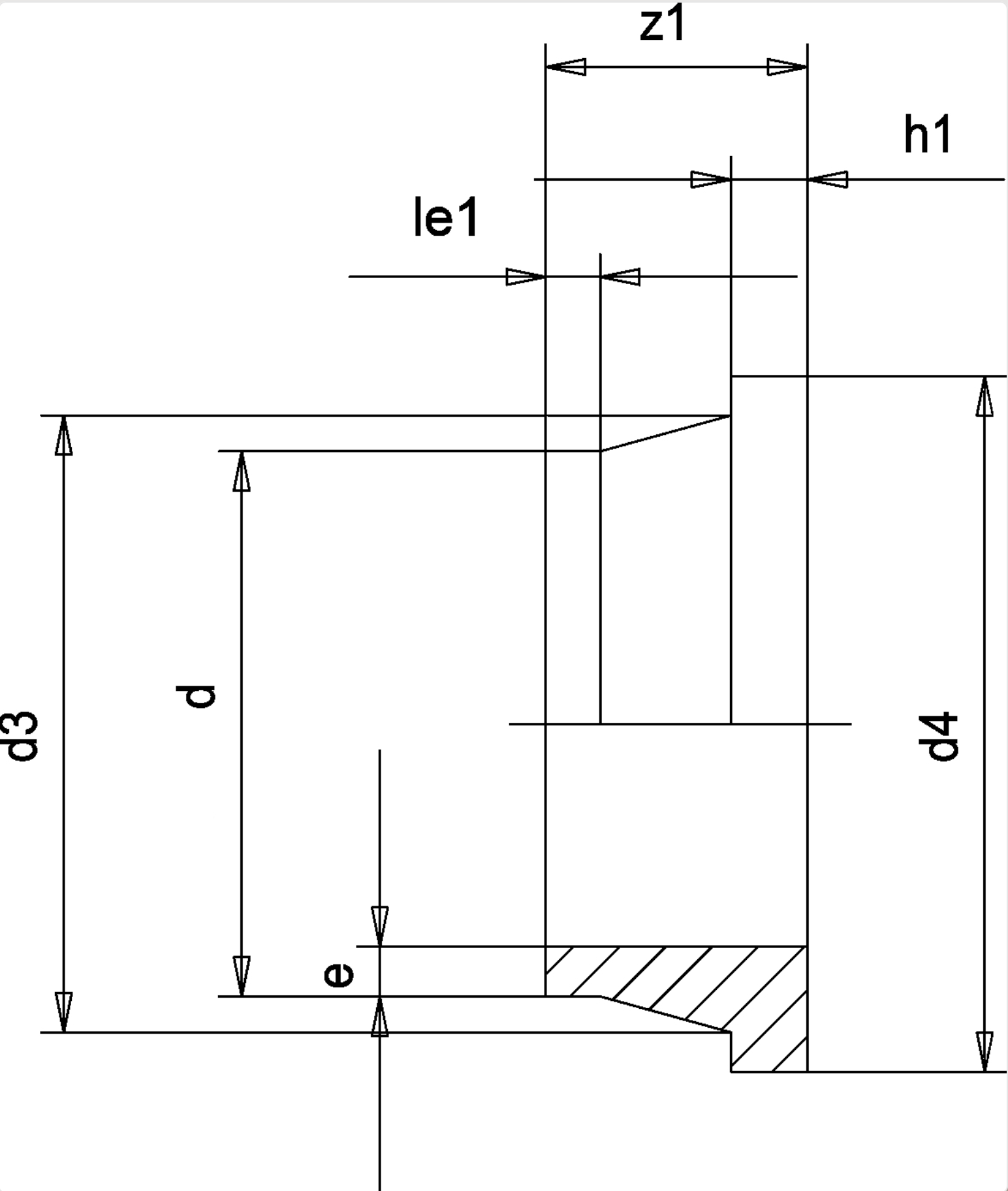

SDR 17

d (mm) 160

e (mm) 9,59,5175

d4 (mm) 212

le1 (mm) 52

z1 (mm) 100

h1 (mm) 18

PN 10

Weight (kg) 0,7
