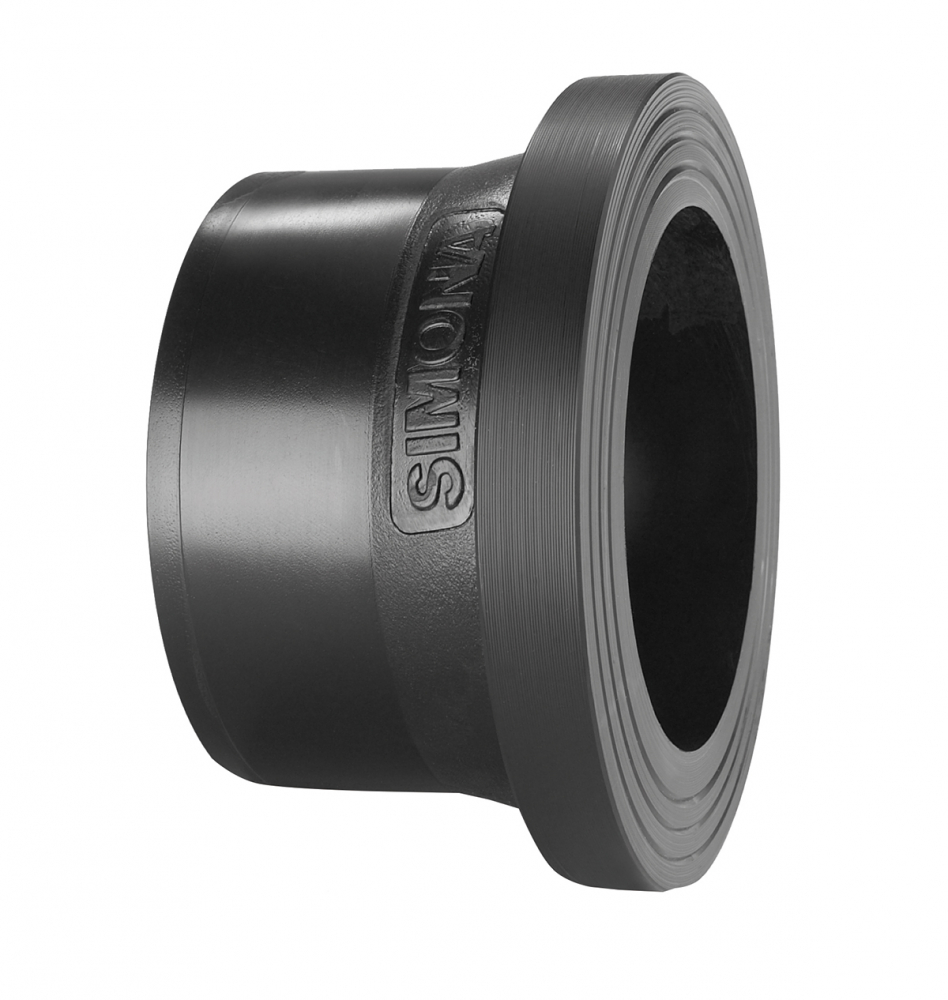

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 180

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 180

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 180

Product Code: 8106039

Qty:

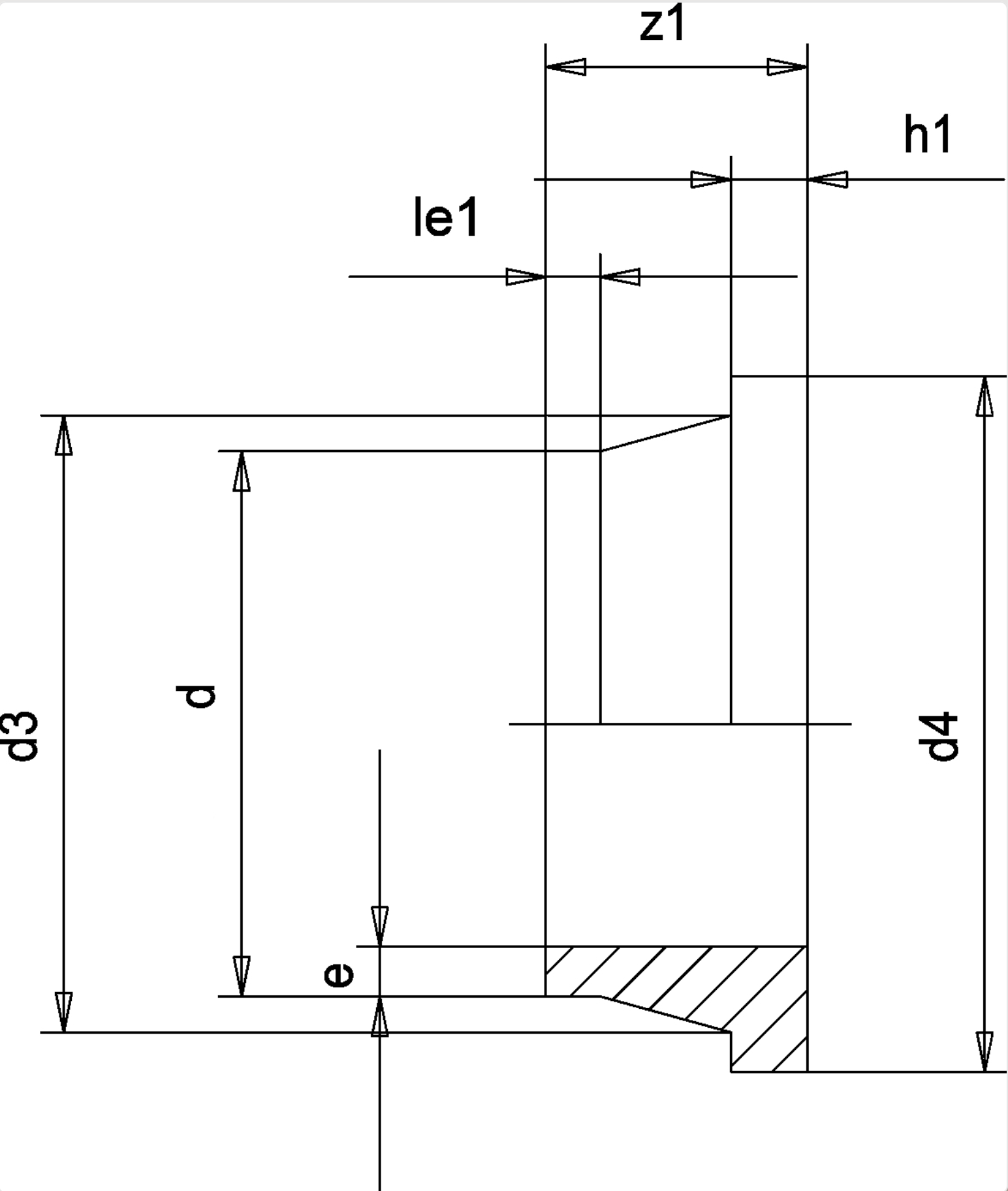

Specifications

Specifications

Specifications

SDR 17

d (mm) 180

e (mm) 10,710,7186

d4 (mm) 212

le1 (mm) 75

z1 (mm) 127

h1 (mm) 20

PN 10

Weight (kg) 0,68
