STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 280

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 280

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 280

Product Code: 8106043

Qty:

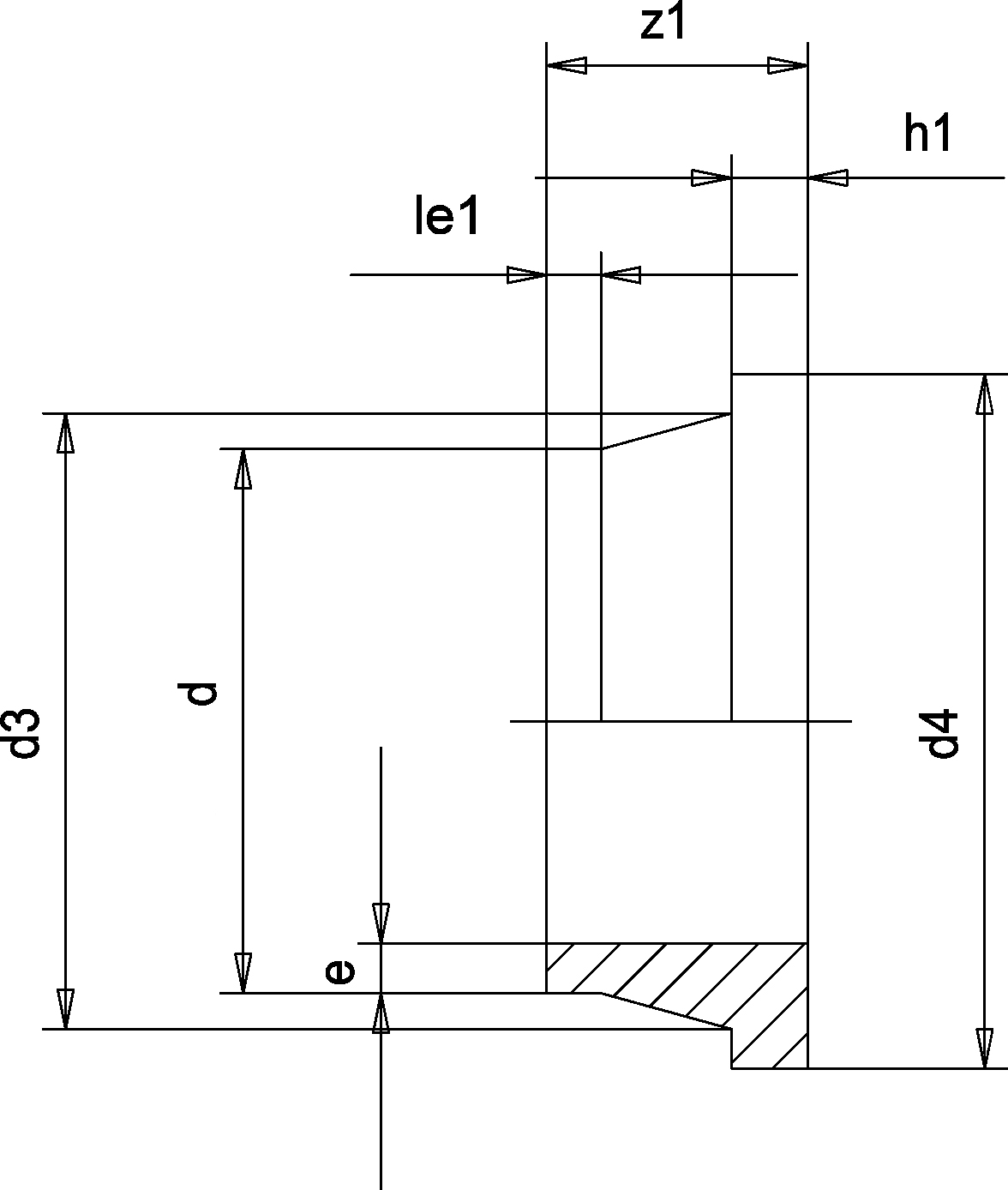

Specifications

Specifications

Specifications

SDR 17

d (mm) 280

e (mm) 16,616,6291

d4 (mm) 320

le1 (mm) 69

z1 (mm) 119

h1 (mm) 25

PN 10

Weight (kg) 2,18
