STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 500

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 500

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 500

Product Code: 8106048

Qty:

Specifications

Specifications

Specifications

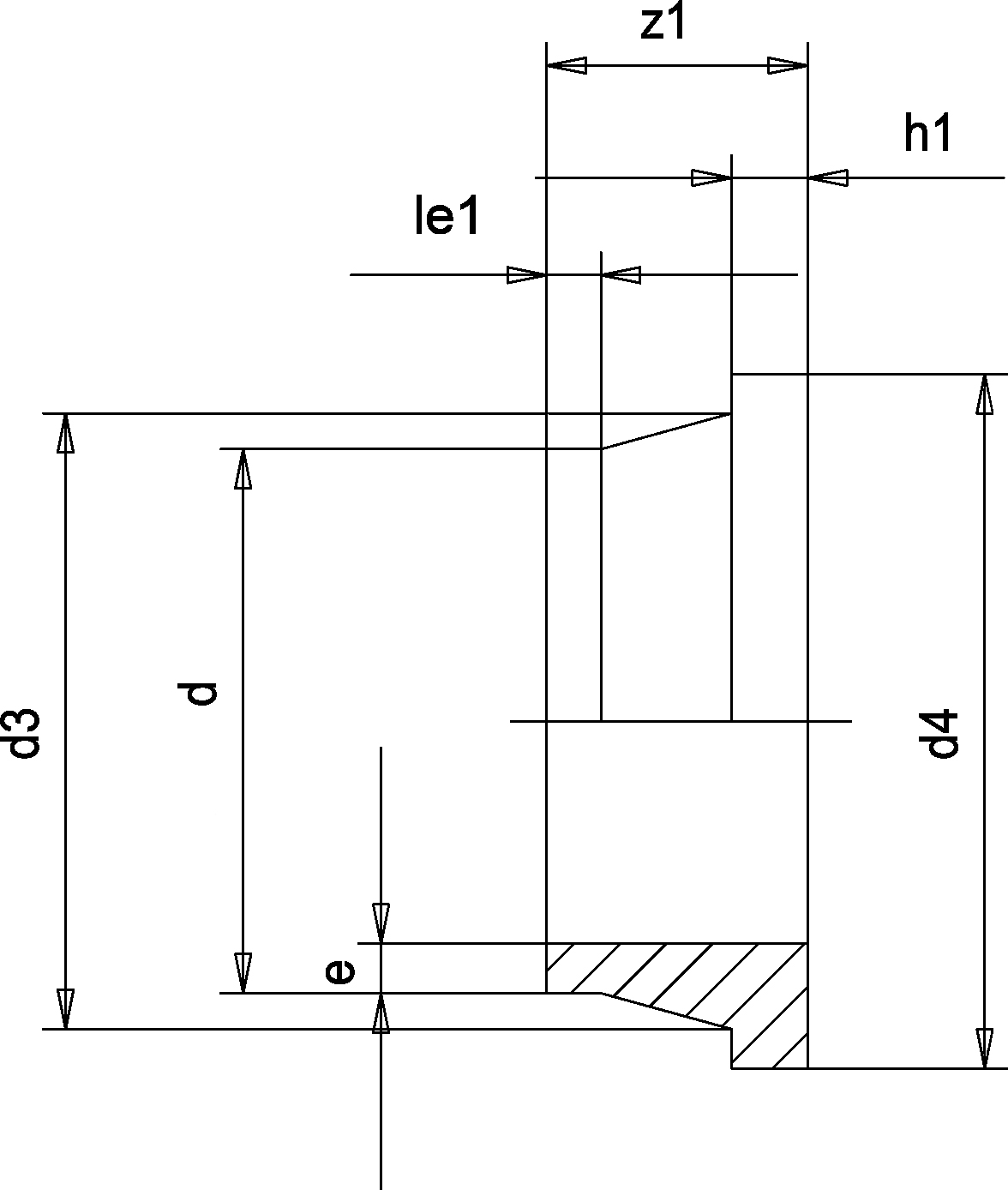

SDR 17

d (mm) 500

e (mm) 29,729,7530

d4 (mm) 585

le1 (mm) 60

z1 (mm) 138

h1 (mm) 46

PN 10

Weight (kg) 9,72
