STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 630

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 630

STUB FLANGE FOR ISO/DIN/AS INJECTED SHORT SPIGOT PE 100 SDR17 630

Product Code: 8106050

Qty:

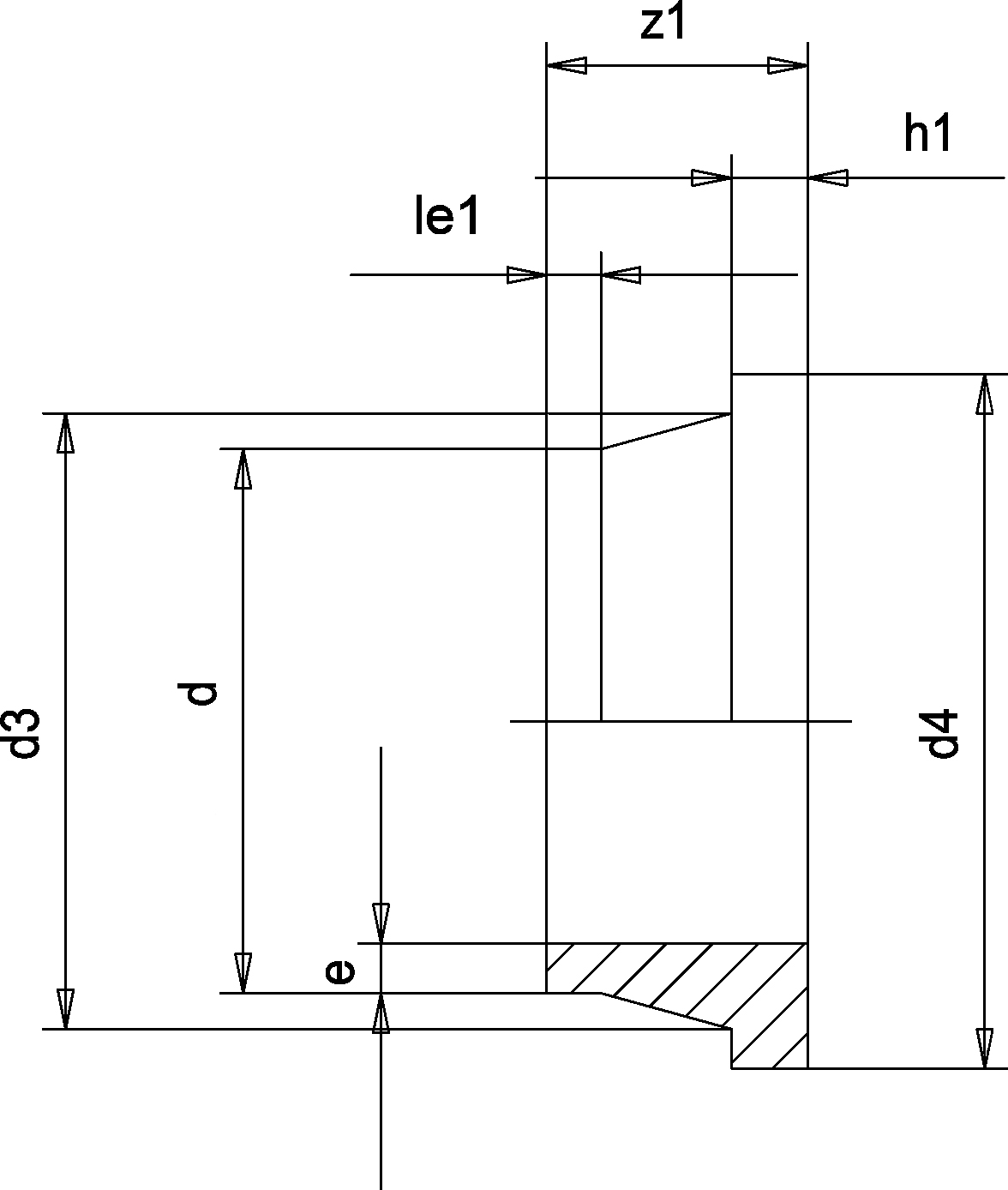

Specifications

Specifications

Specifications

SDR 17

d (mm) 630

e (mm) 37,437,4642

d4 (mm) 685

le1 (mm) 60

z1 (mm) 142

h1 (mm) 50

PN 10

Weight (kg) 12,66
