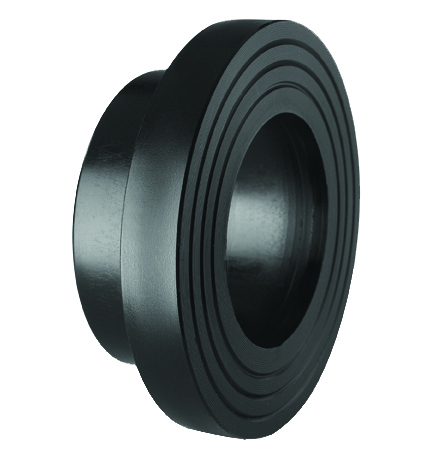

STUB FLANGE FOR ISO/DIN/AS WITH CHAMFER INJECTED SHORT SPIGOT PE 100 SDR11 140

Product Code: 8100489

Specifications

Specifications


SDR  11

d (mm) 140

e (mm) 12,712,7155

d4 (mm) 188

d6 (mm) 125

le1 (mm) 35

z1 (mm) 83

h1 (mm) 25

PN 16

Weight (kg) 0,75
