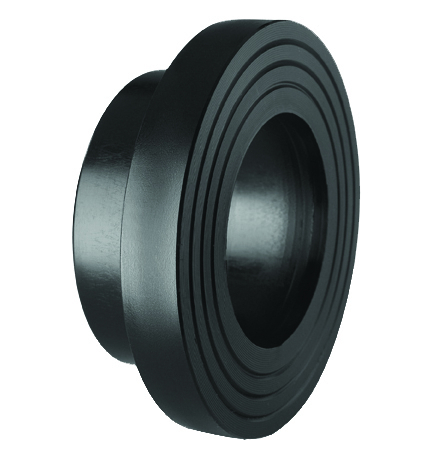

STUB FLANGE FOR ISO/DIN/AS WITH CHAMFER INJECTED SHORT SPIGOT PE 100 SDR11 250

Product Code: 8100494

Specifications

Specifications


SDR  11

d (mm) 250

e (mm) 22,722,7285

d4 (mm) 320

d6 (mm) 240,4

le1 (mm) 55

z1 (mm) 120

h1 (mm) 35

PN 16

Weight (kg) 3,19
