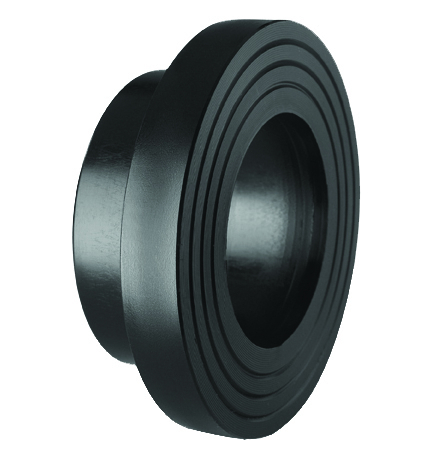

STUB FLANGE FOR ISO/DIN/AS WITH CHAMFER INJECTED SHORT SPIGOT PE 100 SDR11 315

Product Code: 8100496

Specifications

Specifications


SDR  11

d (mm) 315

e (mm) 28,628,6335

d4 (mm) 370

d6 (mm) 279,5

le1 (mm) 86

z1 (mm) 168

h1 (mm) 35

PN 16

Weight (kg) 5,65
